Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

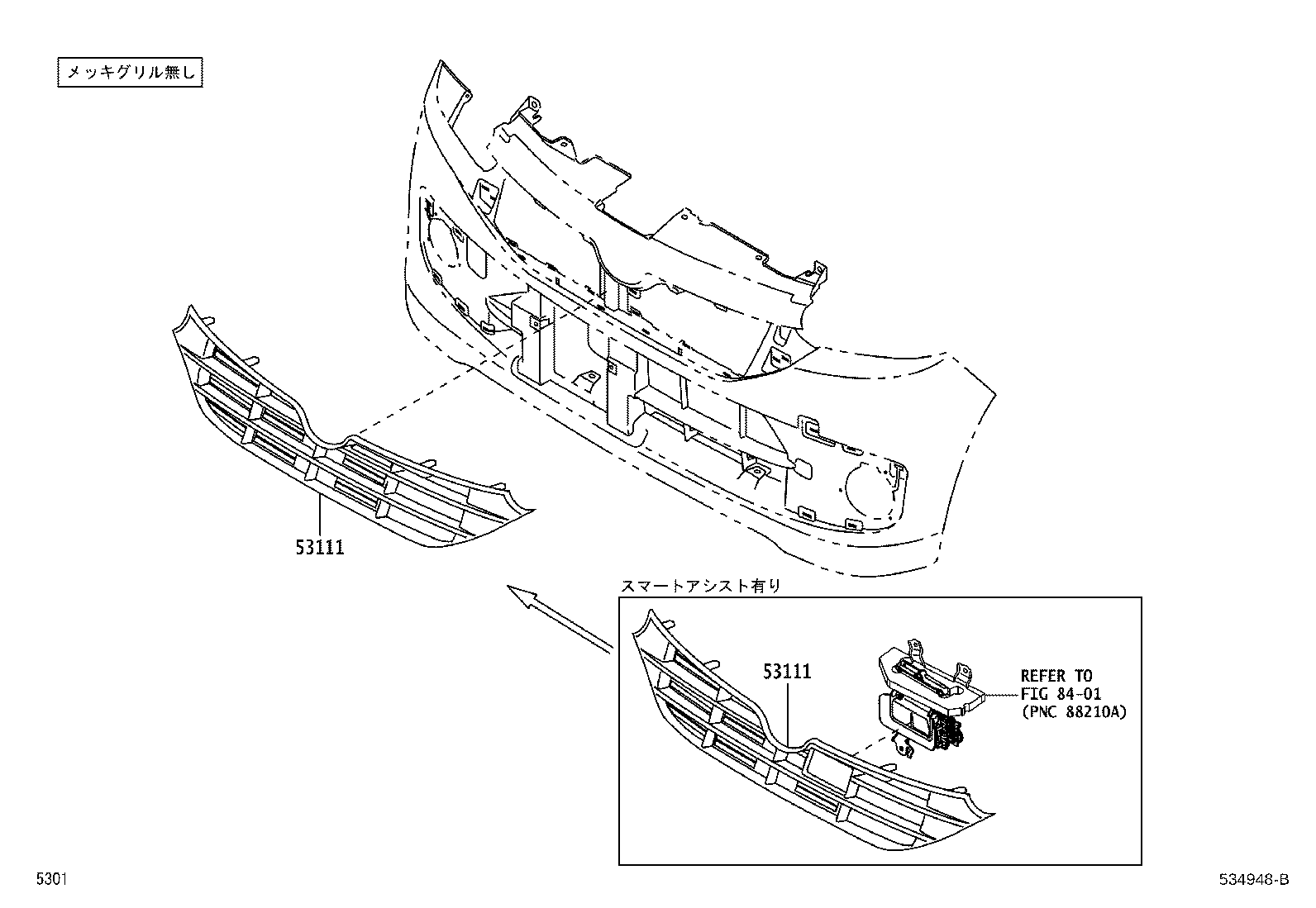

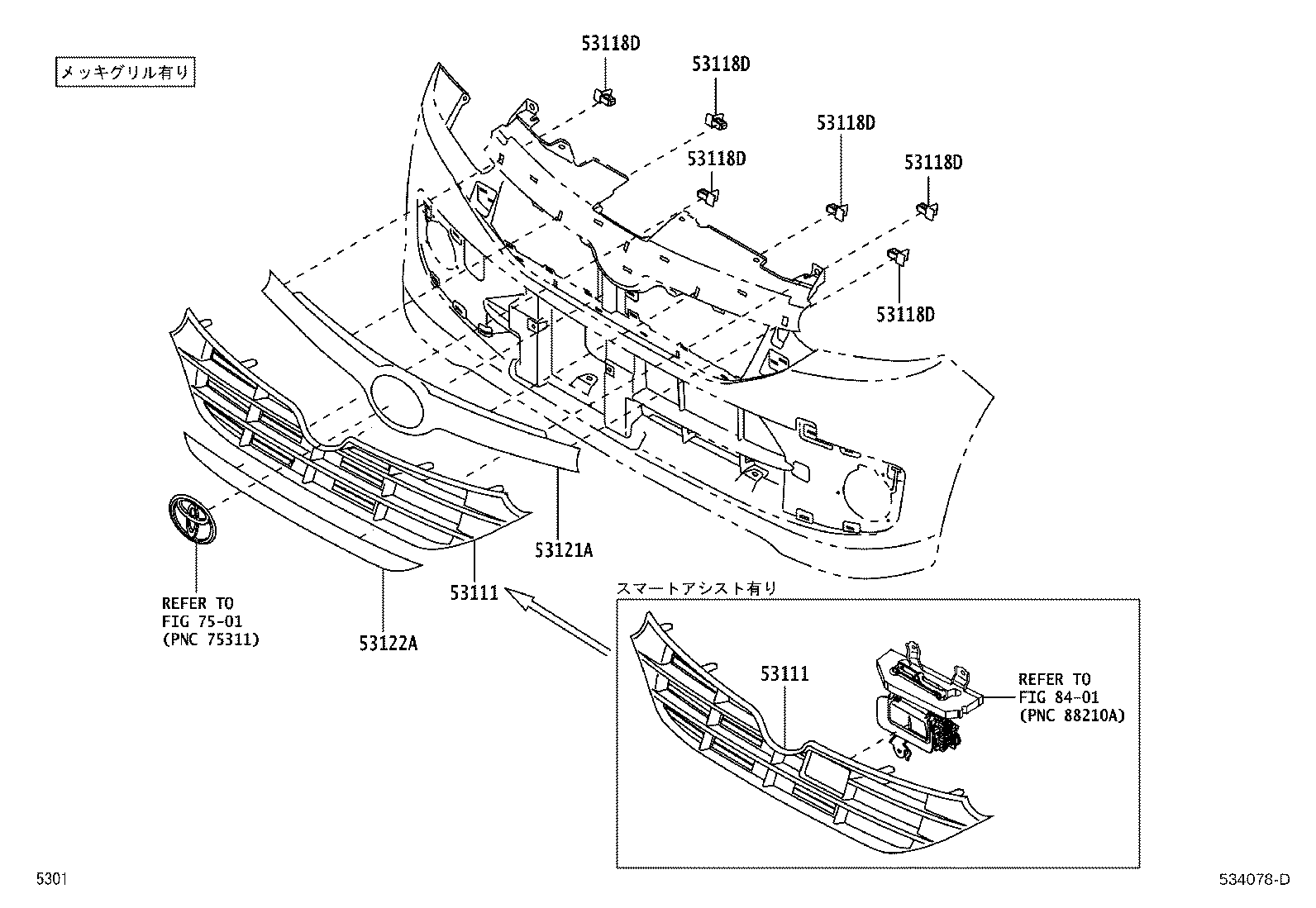

Figure 533711B 533711B 2012-04 → 2013-07 Figure 534948B 534948B 2013-07 → — Figure 534078D 534078D 2013-07 → —

Part groups

PNCDescription
53111 Grille, Radiator
53118D Retainer, Radiator Grille, NO.2
53121A Moulding, Radiator Grille
53122A Moulding, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
