Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 2 illustrations

Illustrations

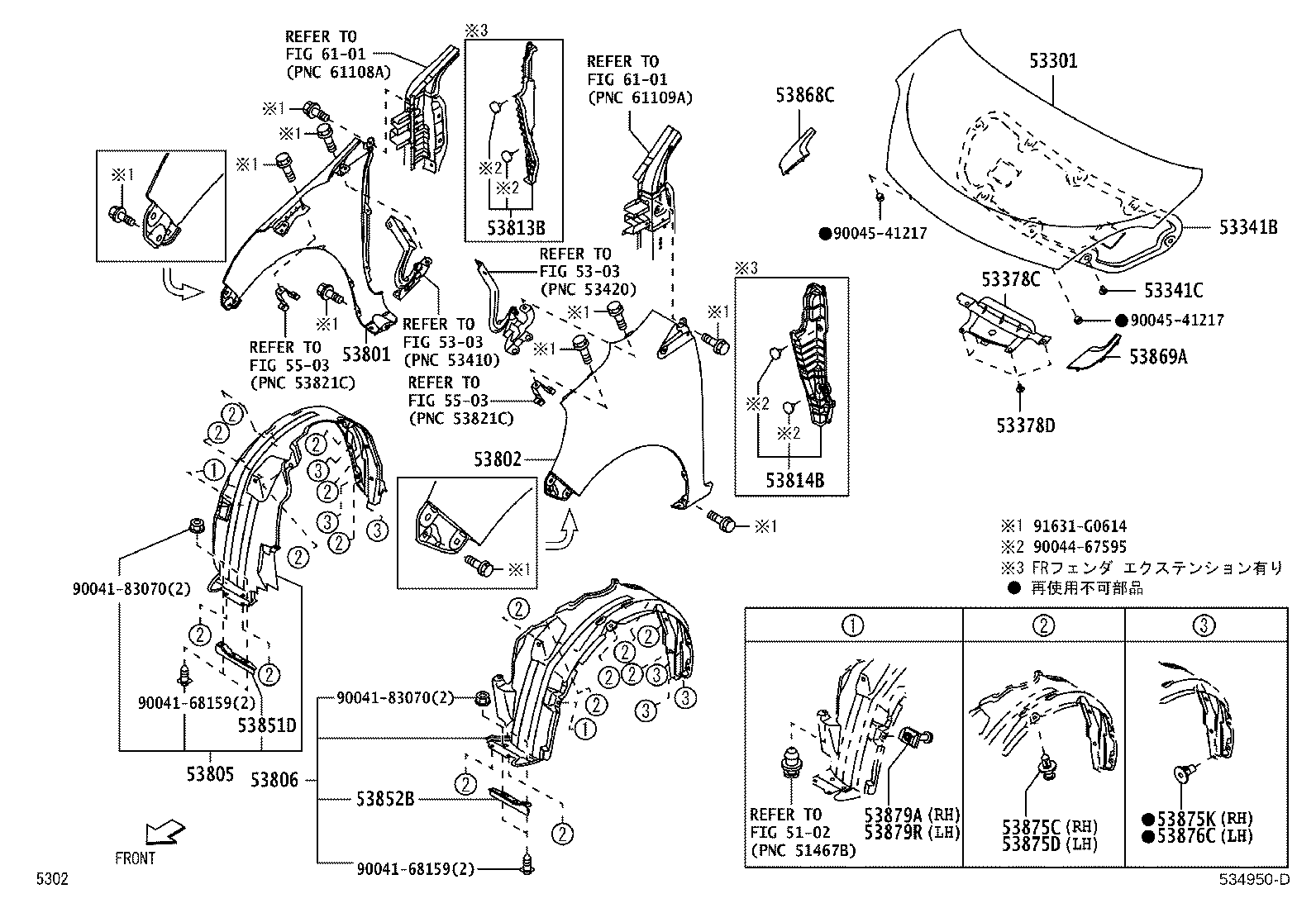

Figure 534949D 534949D 2012-04 → 2013-07 Figure 534950D 534950D 2013-07 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53378C Seal, Hood Air Intake Duct
53378D Clip(FOR HOOD AIR INTAKE DUCT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53813B Extension, Front Fender, RH
53814B Extension, Front Fender, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
