Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

26 part groups · 2 illustrations

Illustrations

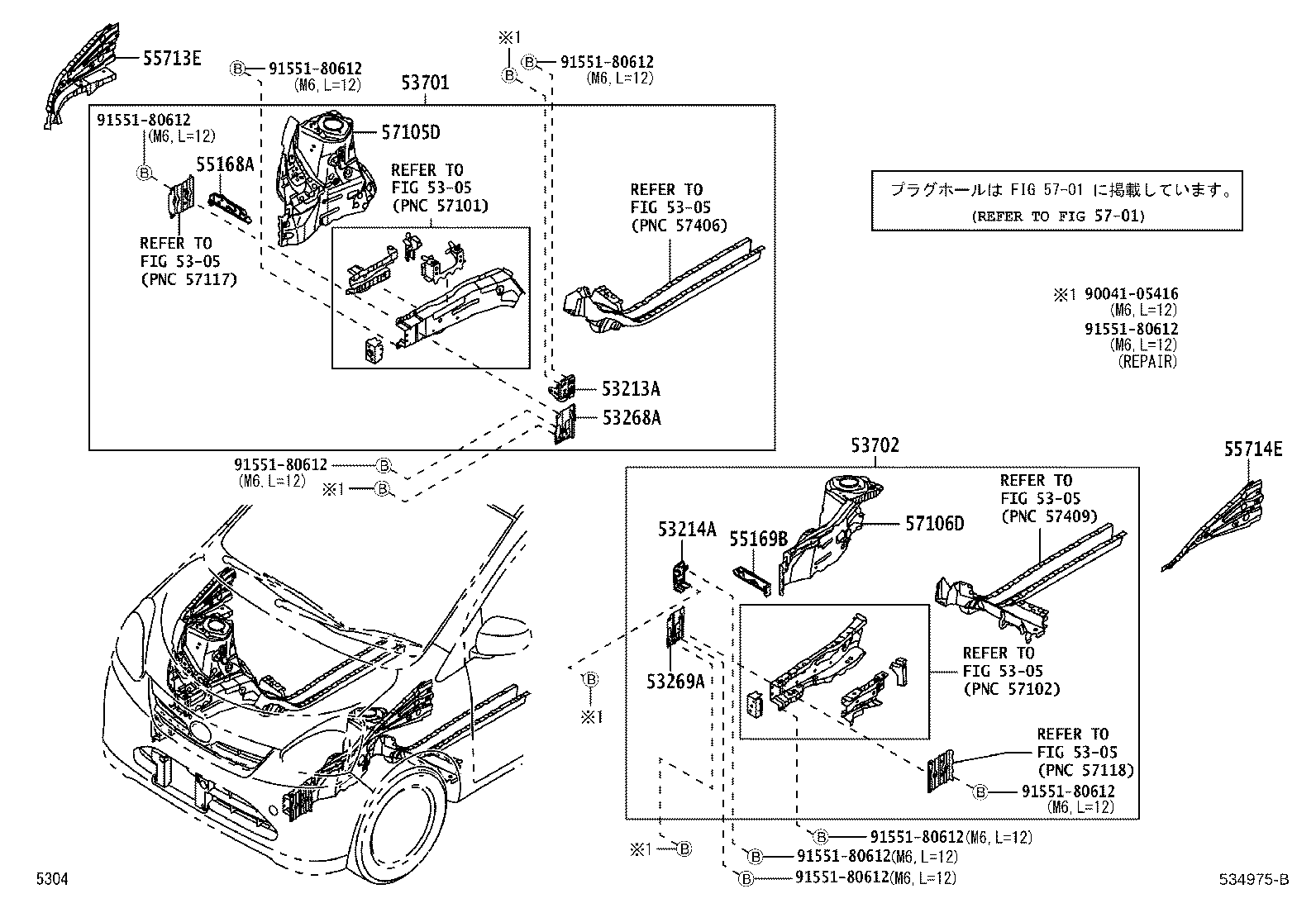

Figure 534974F 534974F 2012-04 → — Figure 534975B 534975B 2012-04 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53209B Brace Sub-assy, Hood Lock Support
53213A Support, Radiator, Upper RH
53214A Support, Radiator, Upper LH
53215B Support, Hood Lock
53216A Support, Radiator, Upper
53218A Support, Radiator, Lower
53268A Reinforcement, Radiator Mounting, RH
53269A Reinforcement, Radiator Mounting, LH
53381D Bumper, Hood TO Front Shroud
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55210A Clip
55210C Clip
55221 Board, Dash Panel Silencer
55223A Insulator, Dash Panel, Outer
55713E Panel, Cowl Top Side, RH
55714E Panel, Cowl Top Side, LH
57105D Plate Sub-assy, Front Side Member, RH
57106D Plate Sub-assy, Front Side Member, LH
82715P Bracket, Wiring Harness Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
