Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

21 part groups · 2 illustrations

Illustrations

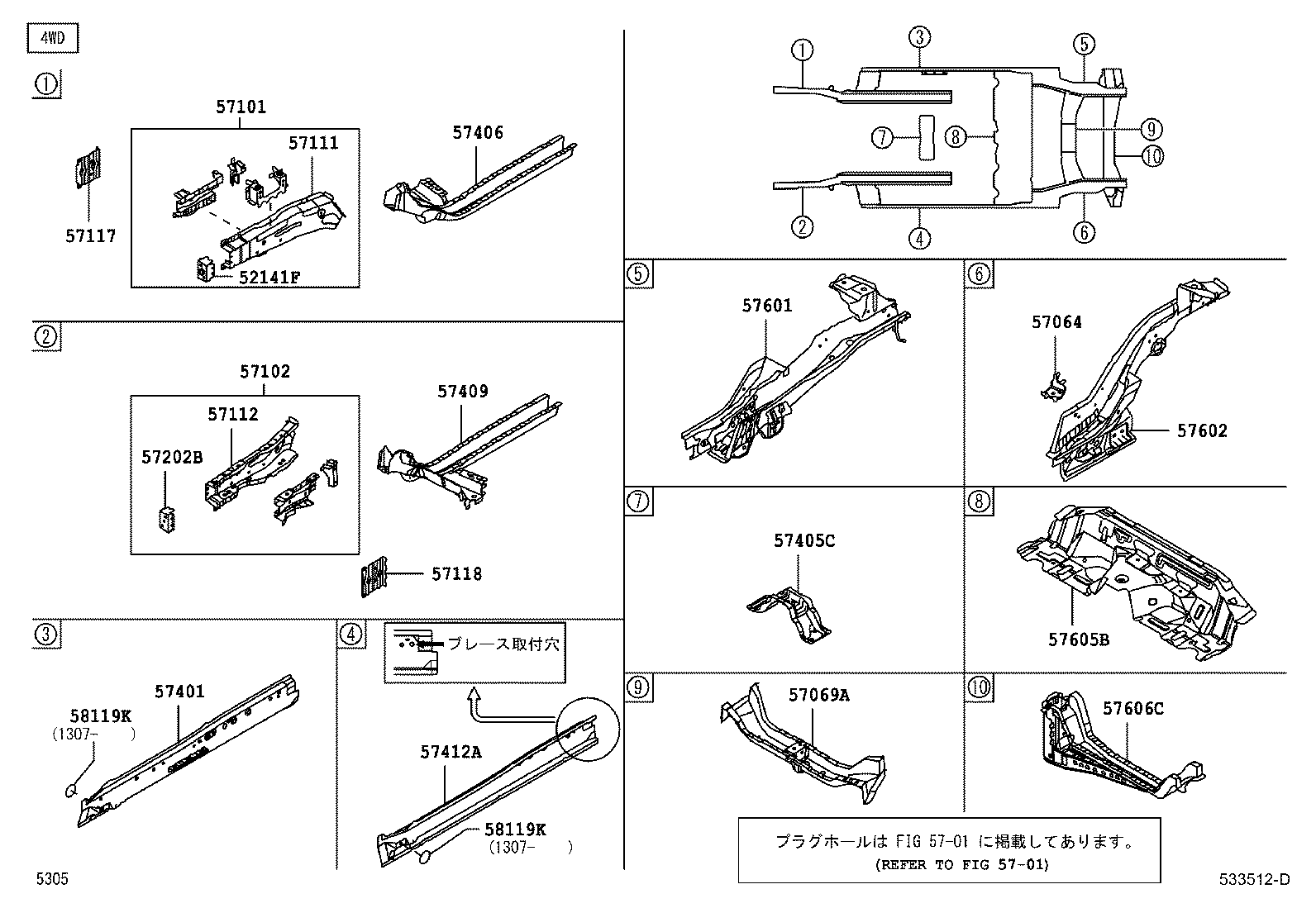

Figure 533511C 533511C 2012-04 → — Figure 533512D 533512D 2012-04 → —

Part groups

PNCDescription
52141F Arm, Front Bumper, RH
57064 Bracket Sub-assy, Fuel Tank Mounting, Rear LH
57069A Member, Rear Floor, Center
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57111 Member, Front Side, RH
57112 Member, Front Side, LH
57117 Plate Sub-assy, Front Side Member, Front RH
57118 Plate Sub-assy, Front Side Member, Front LH
57202B Extension Sub-assy, Front Side Member, LH
57401 Member Sub-assy, Main Floor Side, RH
57405C Member Sub-assy, Center Floor Cross, Rear
57406 Member Sub-assy, Main Floor Side, RH
57409 Member Sub-assy, Main Floor Side, LH
57412A Member, Floor Side, Inner LH
57451 Member, Front Floor Cross
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
58119K Cover, Front Floor Side, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
