Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

18 part groups · 5 illustrations

Illustrations

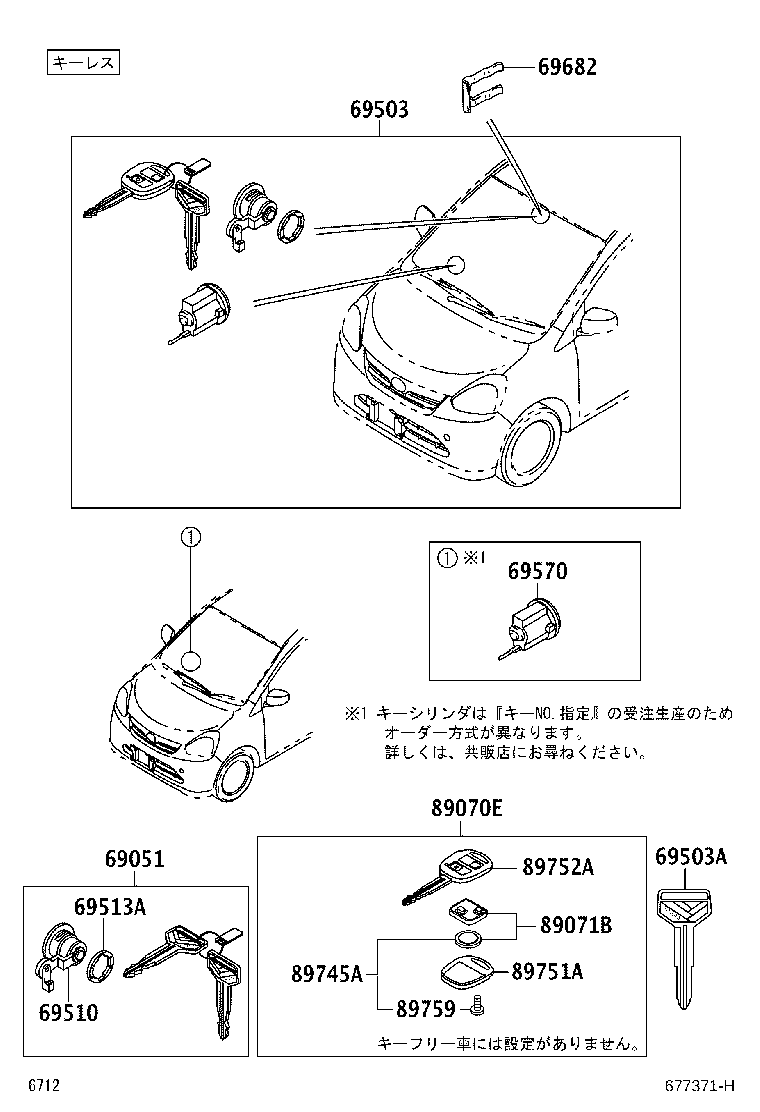

Figure 677373F 677373F 2012-04 → 2013-07 Figure 677373F 677373F 2013-07 → — Figure 677371H 677371H 2012-04 → 2013-07 Figure 677371H 677371H 2013-07 → — Figure 677372B 677372B 2012-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69055B Cylinder & Key Set, Back Door Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503C Key, Sub
69510 Cylinder Assy, Front Door Lock, RH
69513A Pad, Door Cylinder
69560A Cylinder Assy, Luggage Compartment Door Lock
69570 Cylinder Assy, Ignition Switch Lock
69682 Retainer, Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89759 Screw, Door Control Transmitter
89785B Transmitter, Transponder Key Master
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
