Toyota Pixis Epoch
2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan
Supported model
Data version 2017-11

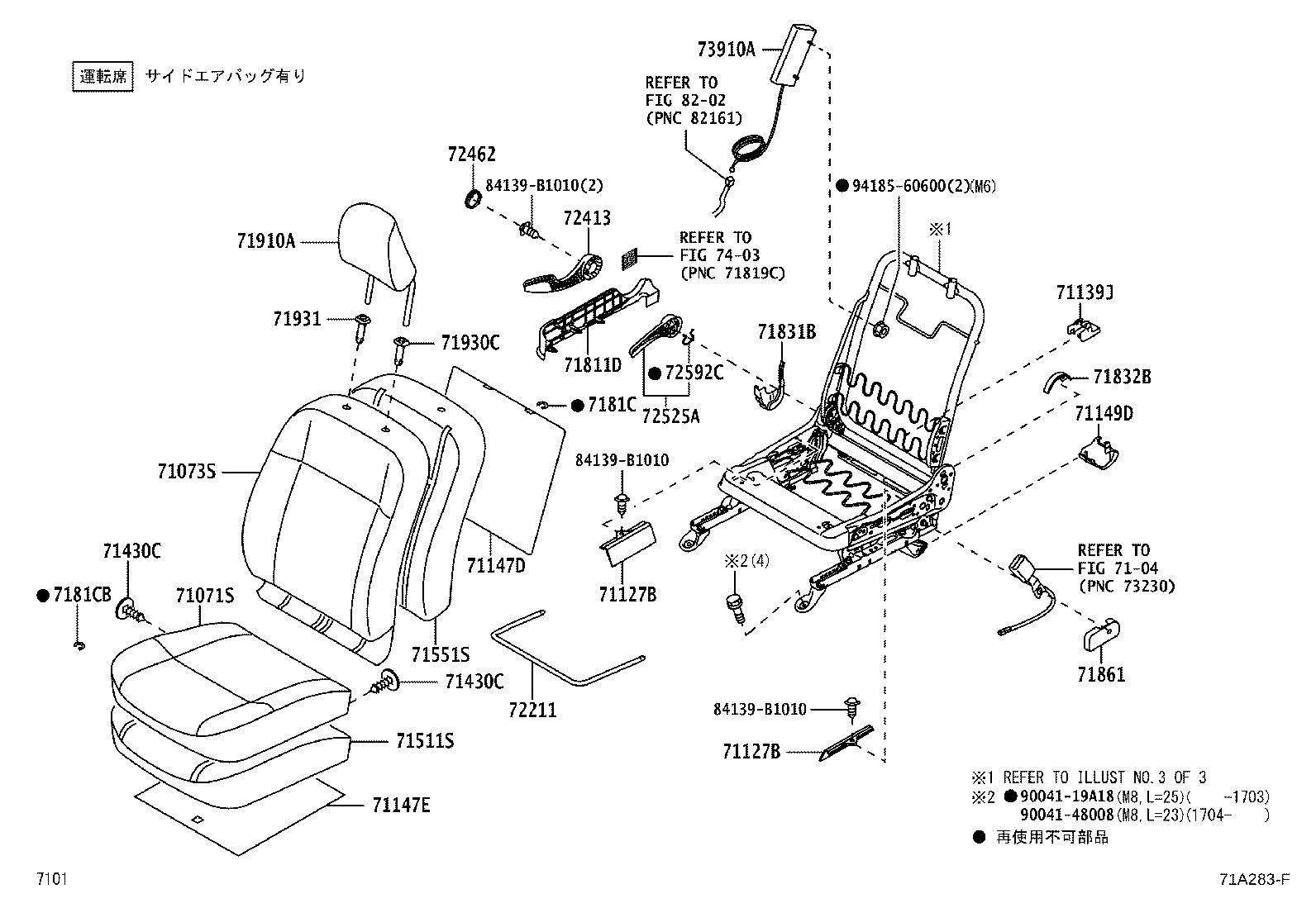

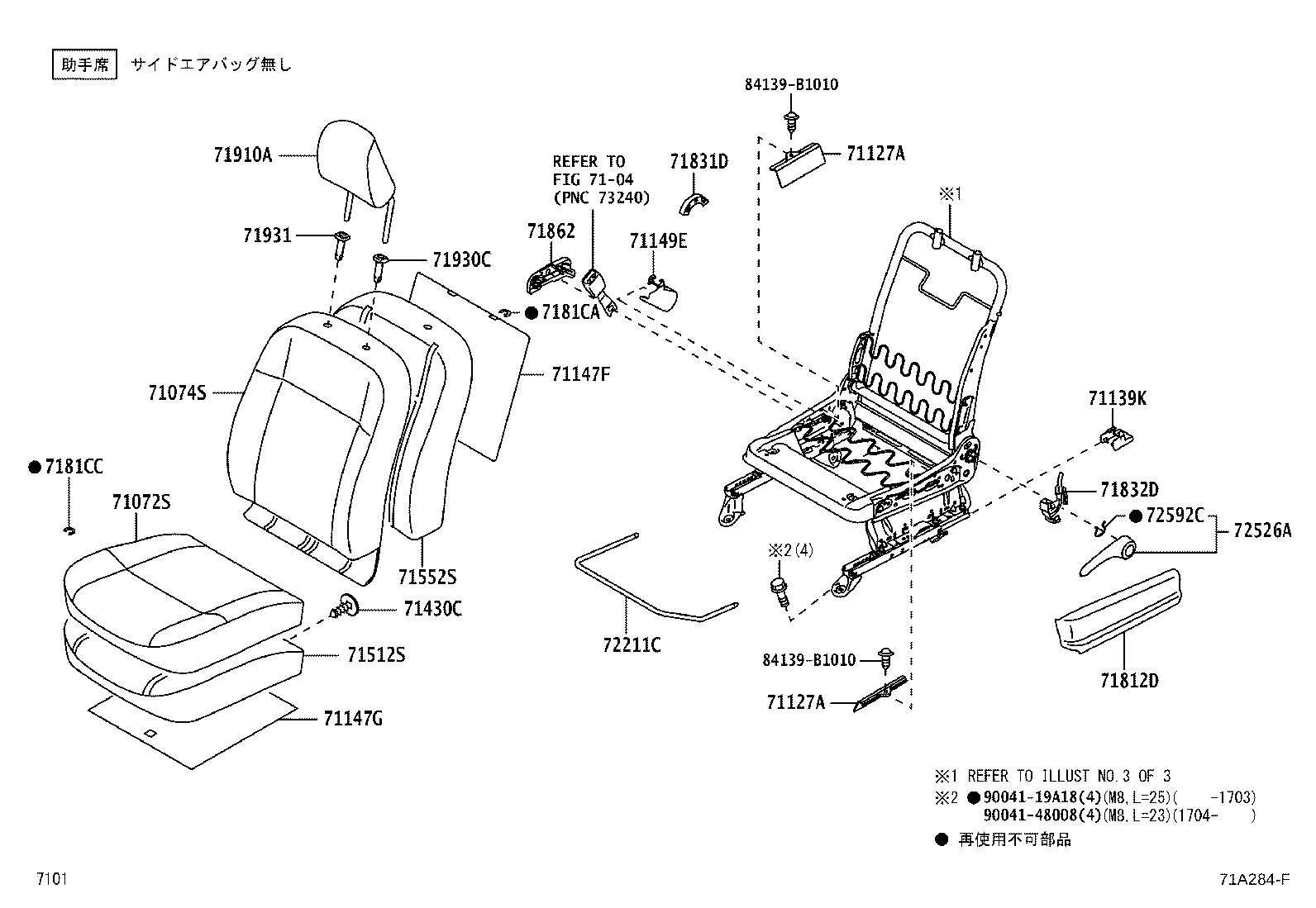

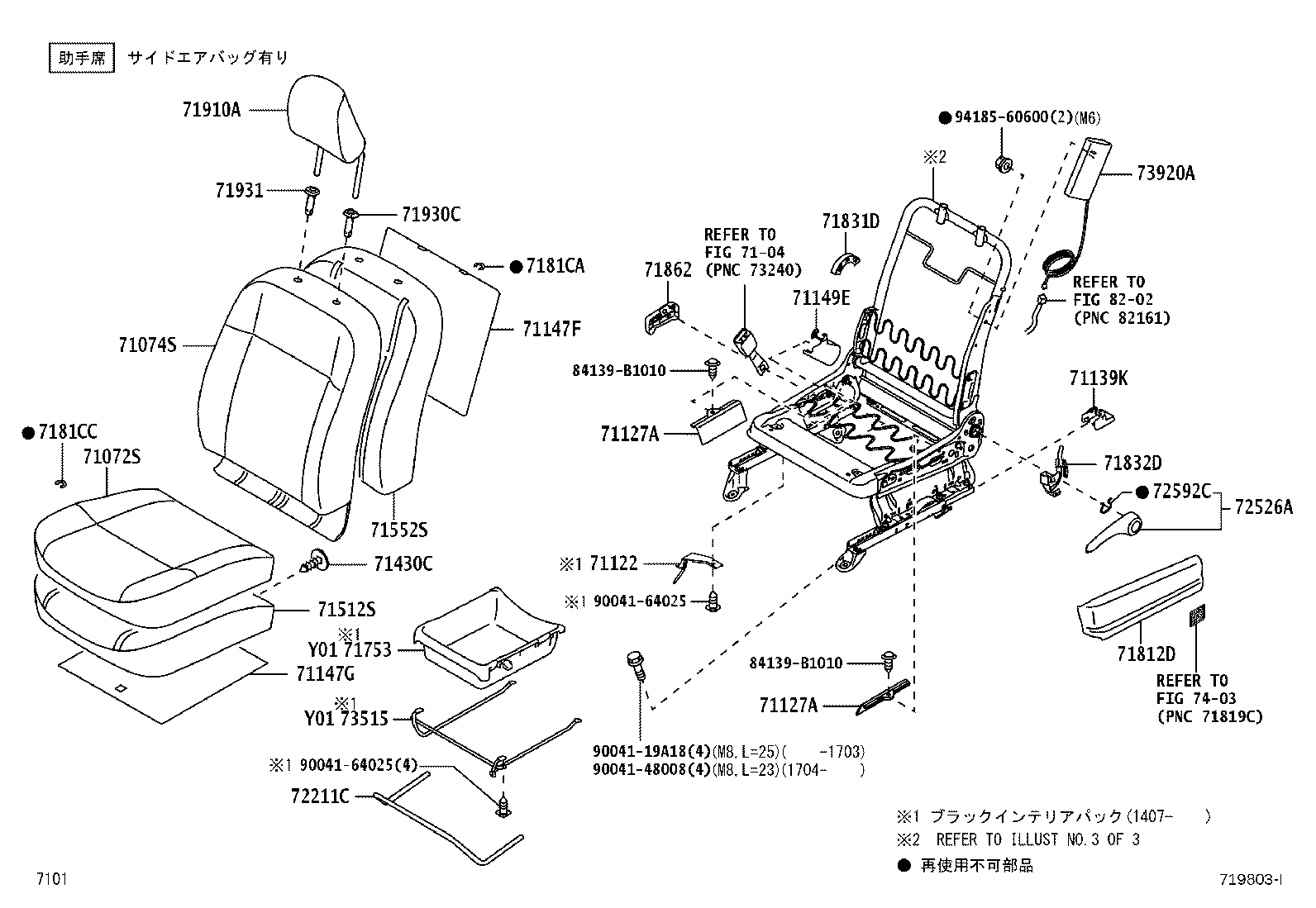

Front Seat & Seat Track
55 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |

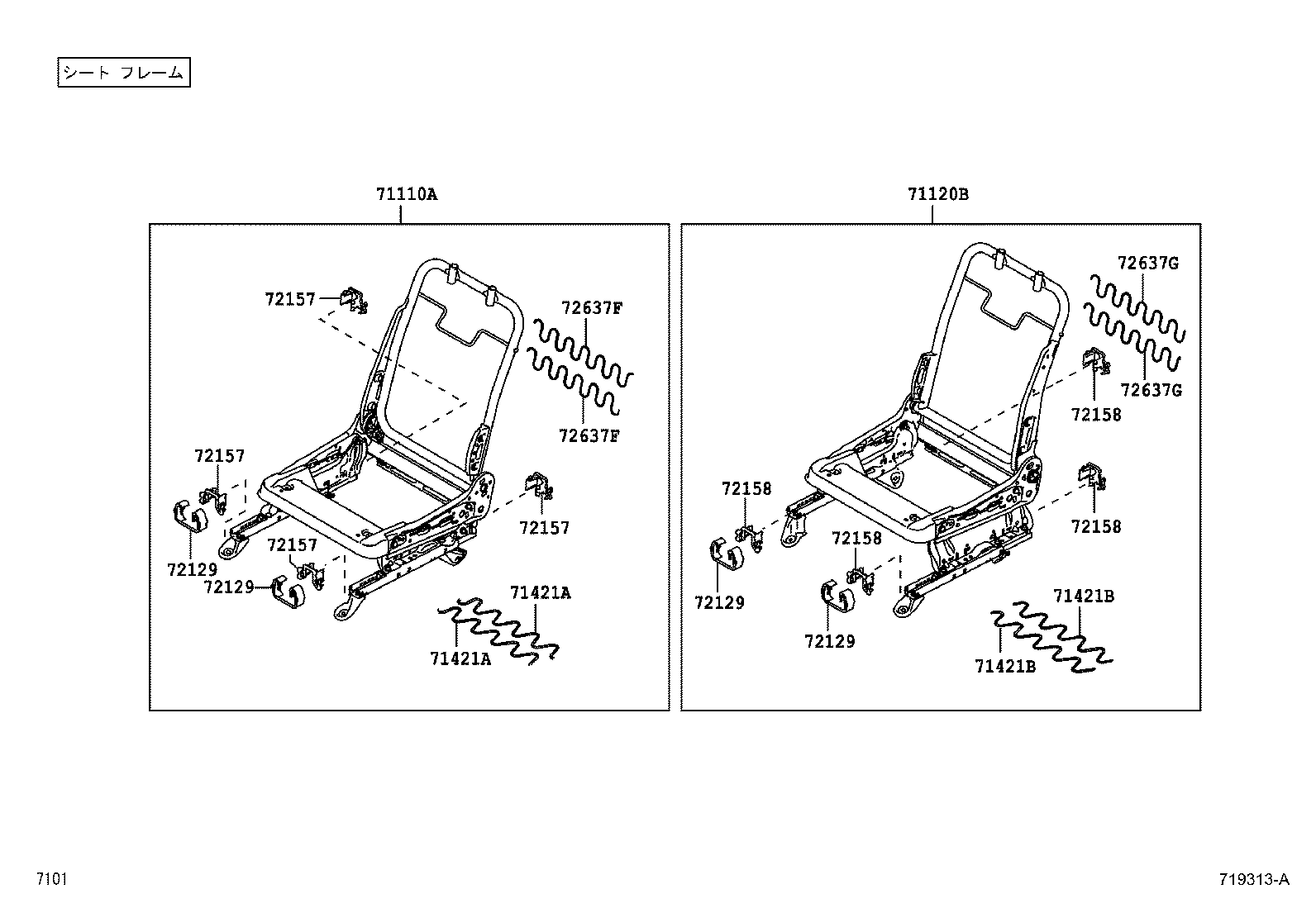

| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71122 | Bracket, Front Seat Cushion, LH |
| 71127A | Plate, FR0NT Seat Cushion Cover Set |
| 71127B | Plate, FR Seat Cushion Protector Set |
| 71139J | Cover, Front Seat Leg, RH(FOR RH SEAT) |
| 71139K | Cover, Front Seat Leg, LH(FOR LH SEAT) |
| 71147D | Silencer, Seat Spring, RH(FOR SEATBACK) |
| 71147E | Silencer, Seat Spring, RH(FOR SEAT CUSHION) |
| 71147F | Silencer, Seat Spring, LH(FOR SEATBACK) |
| 71147G | Silencer, Seat Spring, LH(FOR SEAT CUSHION) |
| 71149D | Cover, Front Seat Leg, Inner (FOR RH SEAT) |
| 71149E | Cover, Front Seat Leg, Inner (FOR LH SEAT) |
| 71421A | Spring, Front Seat Cushion |
| 71421B | Spring, Front Seat Cushion |
| 71430C | Clip |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71753 | Tray, Front Seat Under |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181C | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CA | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CB | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 7181CC | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 71831B | Cover, Front Seat Hinge, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71930C | Support, Front Seat Headrest, LH |
| 71931 | Support, Front Seat Headrest |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72157 | Cover, Seat Track Bracket, Inner |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72413 | Lever, Vertical Adjuster Lock |
| 72462 | Cover, Vertical Adjuster RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72592C | Ring, Shaft Snap |
| 72637F | Spring, Seatback, RH |
| 72637G | Spring, Seatback, LH |
| 73515 | Rail, Front Seat Under Tray, NO.1 |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
