Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

8 part groups · 2 illustrations

Illustrations

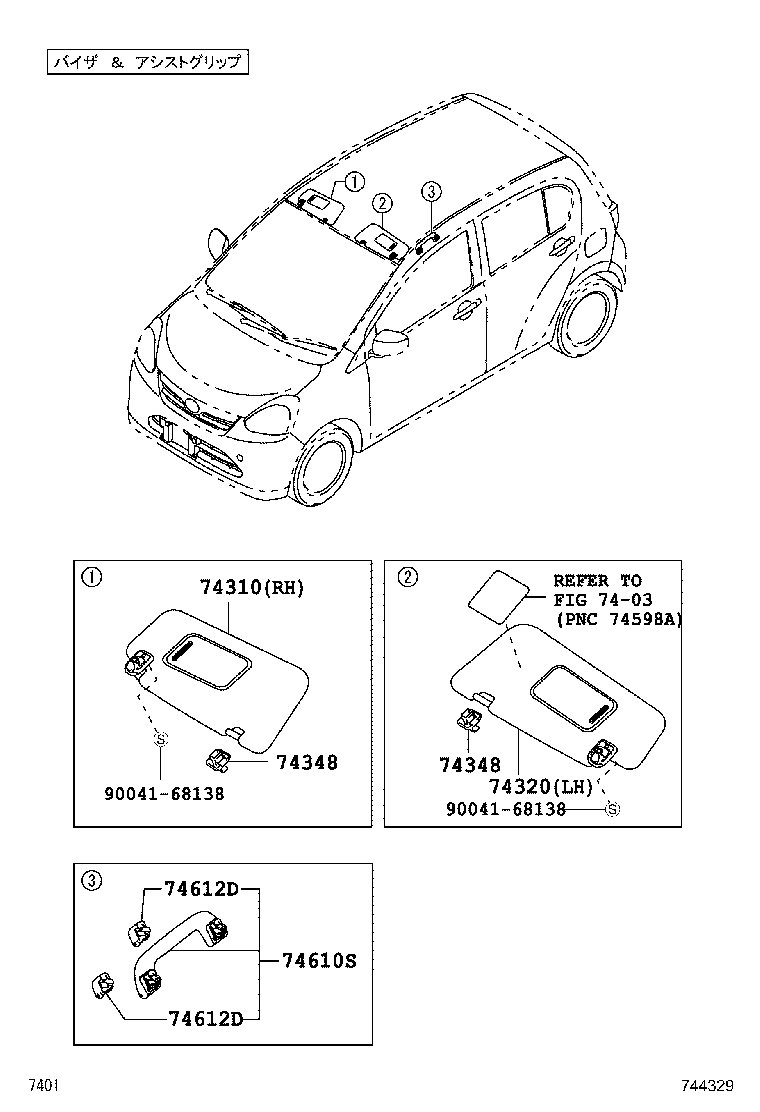

Figure 744328 744328 2012-04 → — Figure 744329 744329 2012-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610S Grip Assy, Assist
74612D Cover, Assist Grip
74811B Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
