Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

17 part groups · 4 illustrations

Illustrations

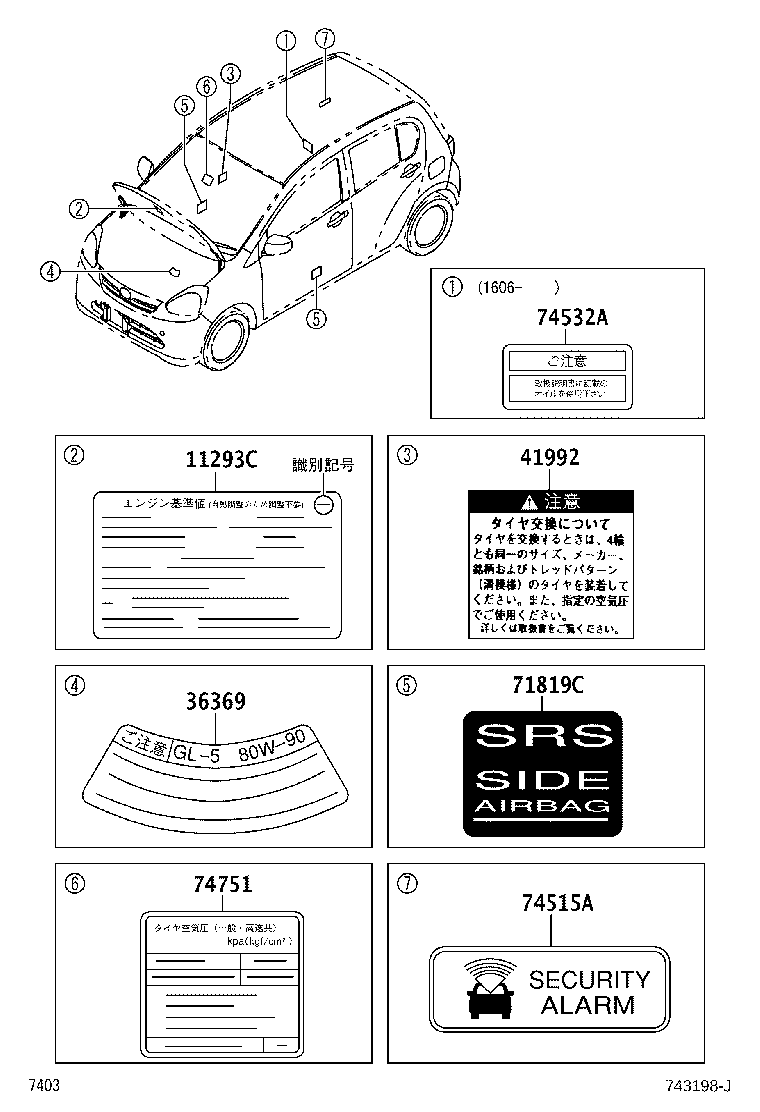

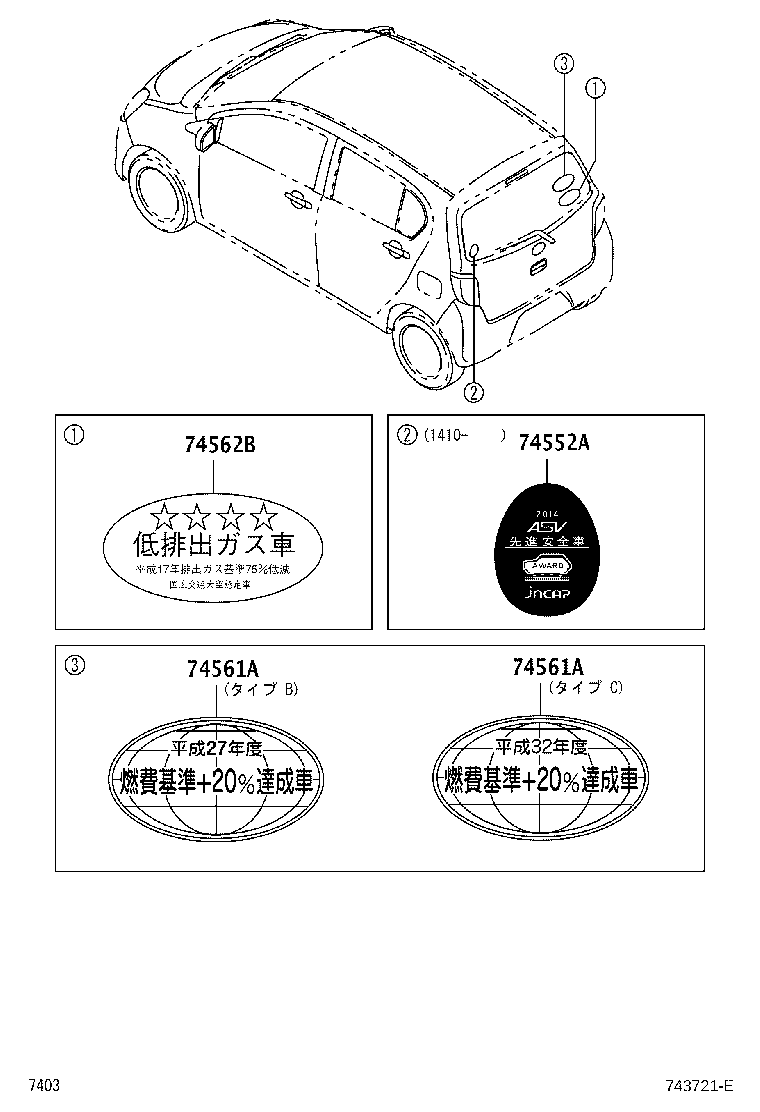

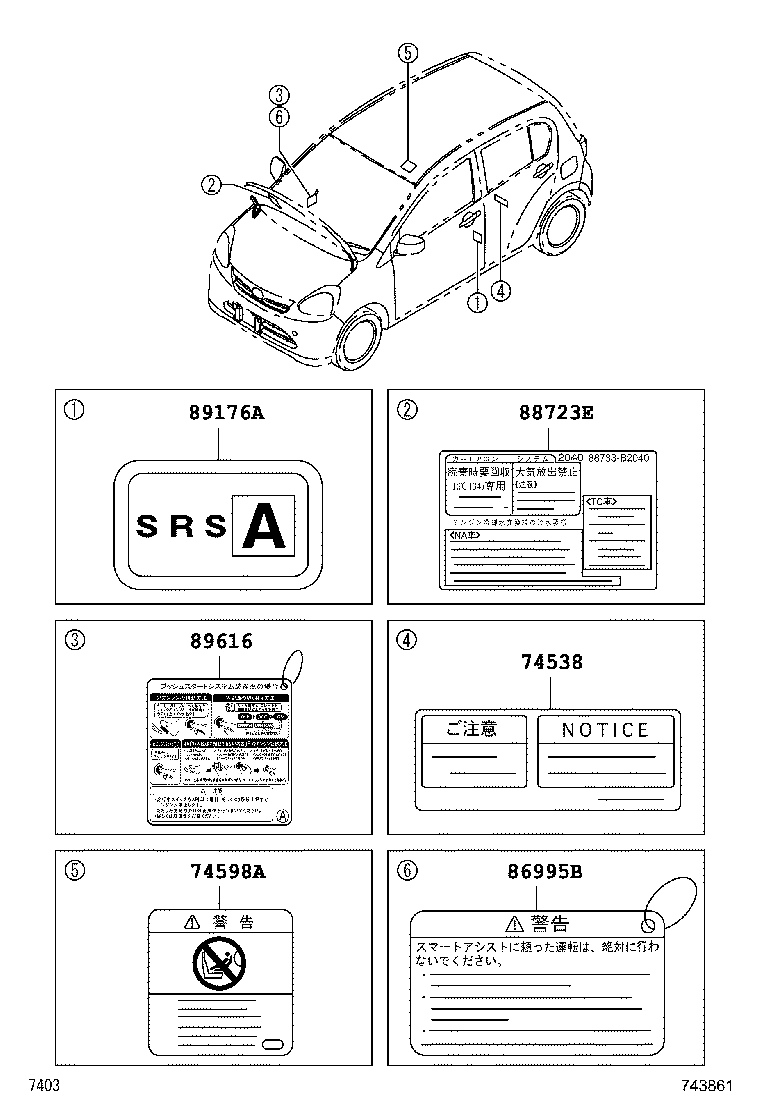

Figure 745602 745602 2012-04 → — Figure 743198J 743198J 2012-04 → — Figure 743861 743861 2012-04 → — Figure 743721E 743721E 2012-04 → —

Part groups

PNCDescription
11293C Label, Tune-up Specification Information
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
41992 Label, Differential Notice
71819C Label, Side Airbag Name
74515A Plate, Theft Warning
74532A Plate, Caution
74538 Plate, Jack Carrier Caution
74552A Label, Safety Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
86995B Plate, Caution
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
