Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

25 part groups · 10 illustrations

Illustrations

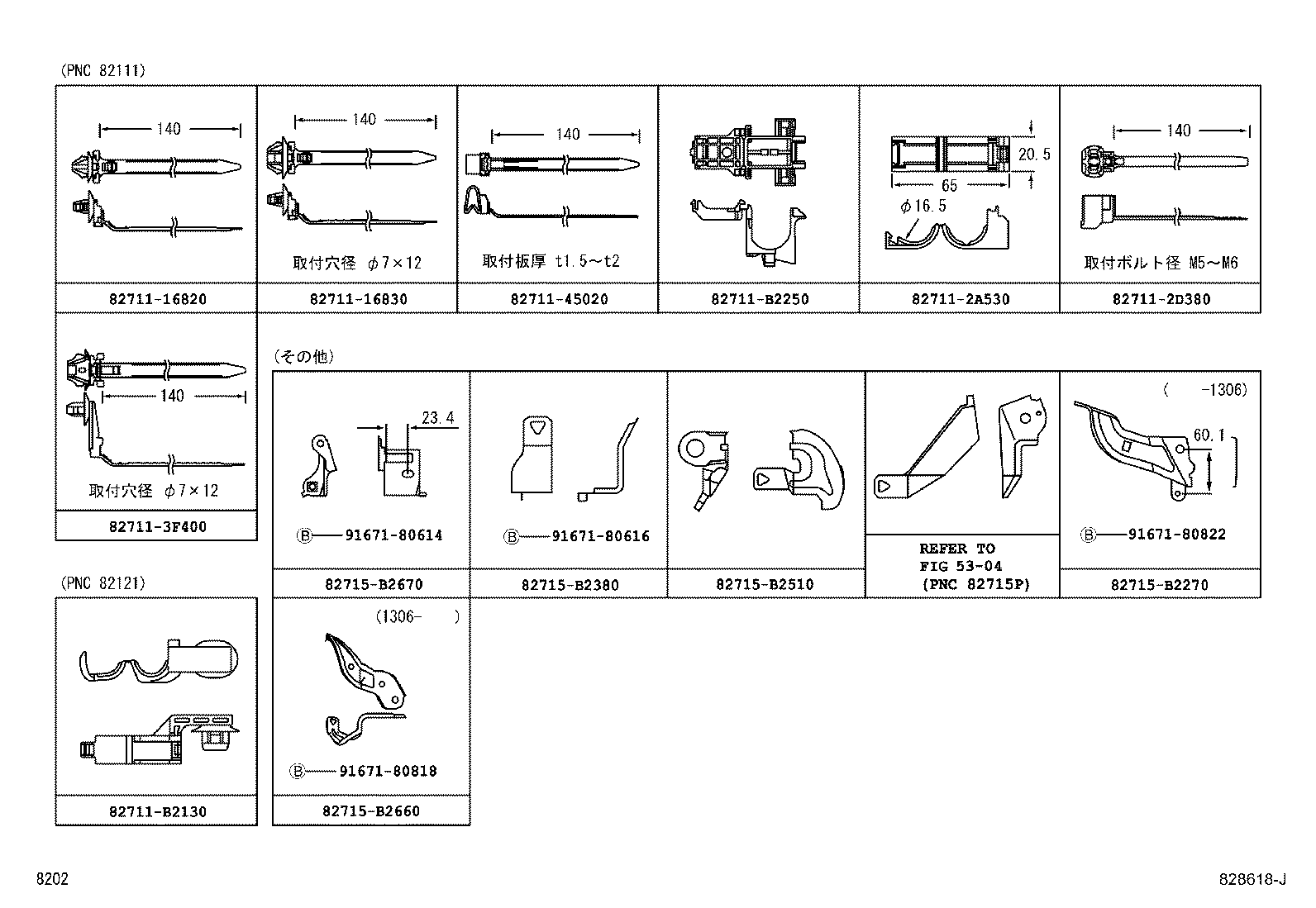

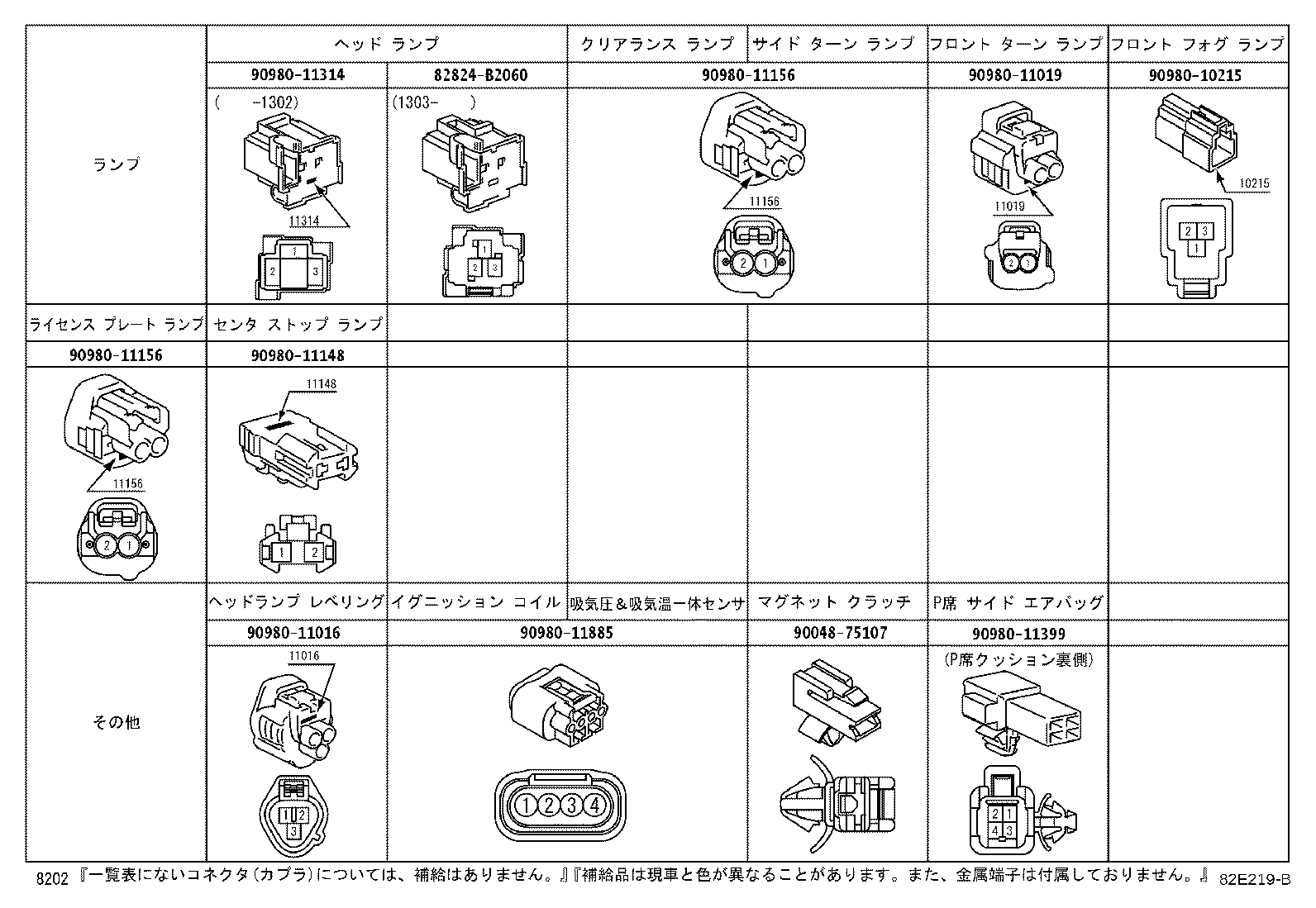

Figure 828865G 828865G 2012-04 → — Figure 828331A 828331A 2012-04 → — Figure 828332C 828332C 2012-04 → — Figure 828333A 828333A 2012-04 → — Figure 828334A 828334A 2012-04 → — Figure 828335A 828335A 2012-04 → — Figure 828618J 828618J 2012-04 → — Figure 828336 828336 2012-04 → — Figure 828337 828337 2012-04 → — Figure 82E219B 82E219B 2012-04 → —

Part groups

PNCDescription
82046D Wire, Body Ground

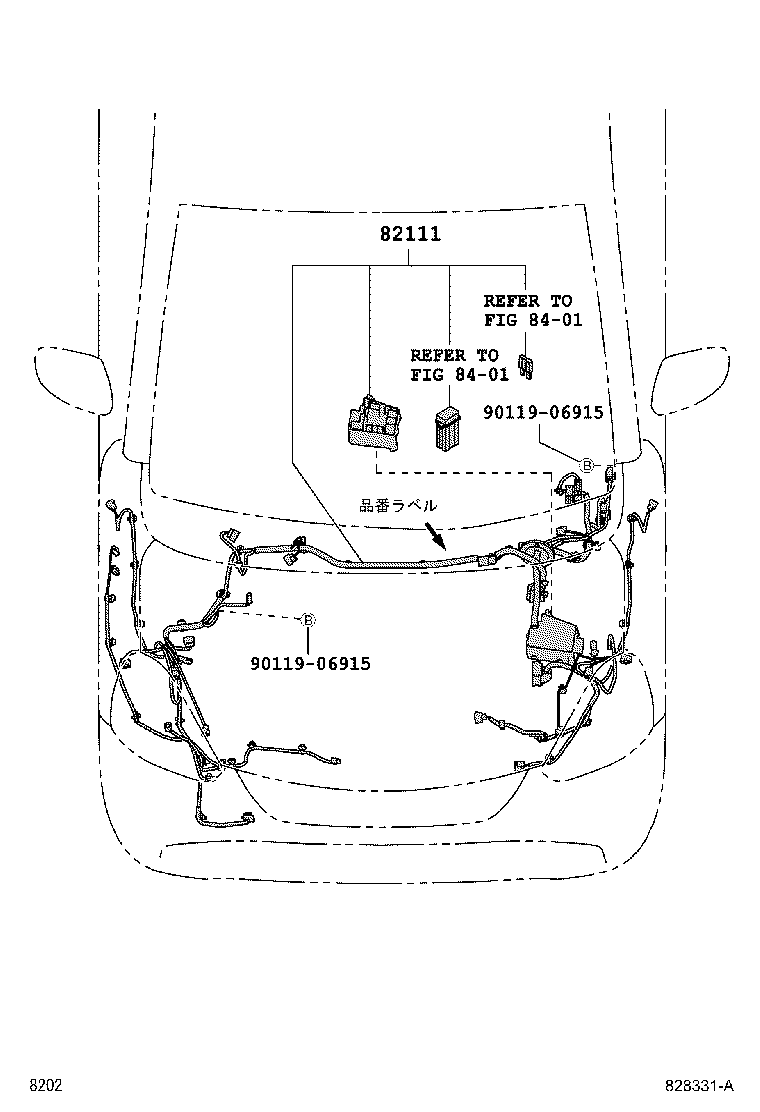

82111 Wire, Engine Room Main

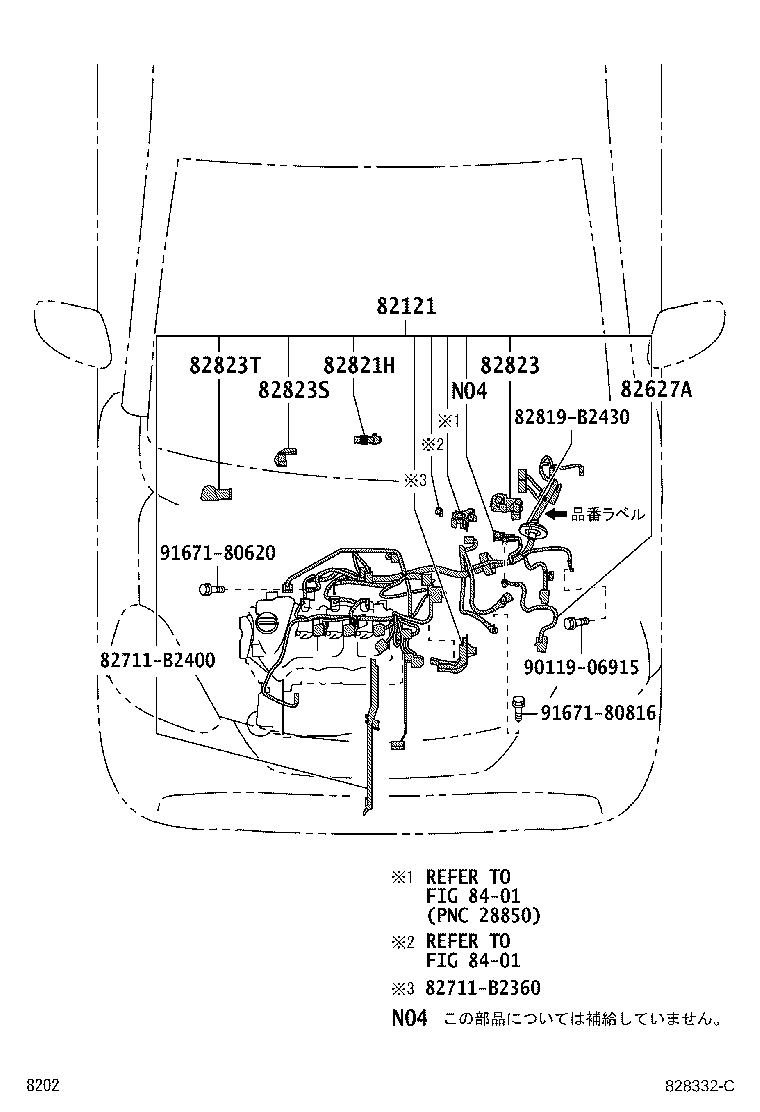

82121 Wire, Engine

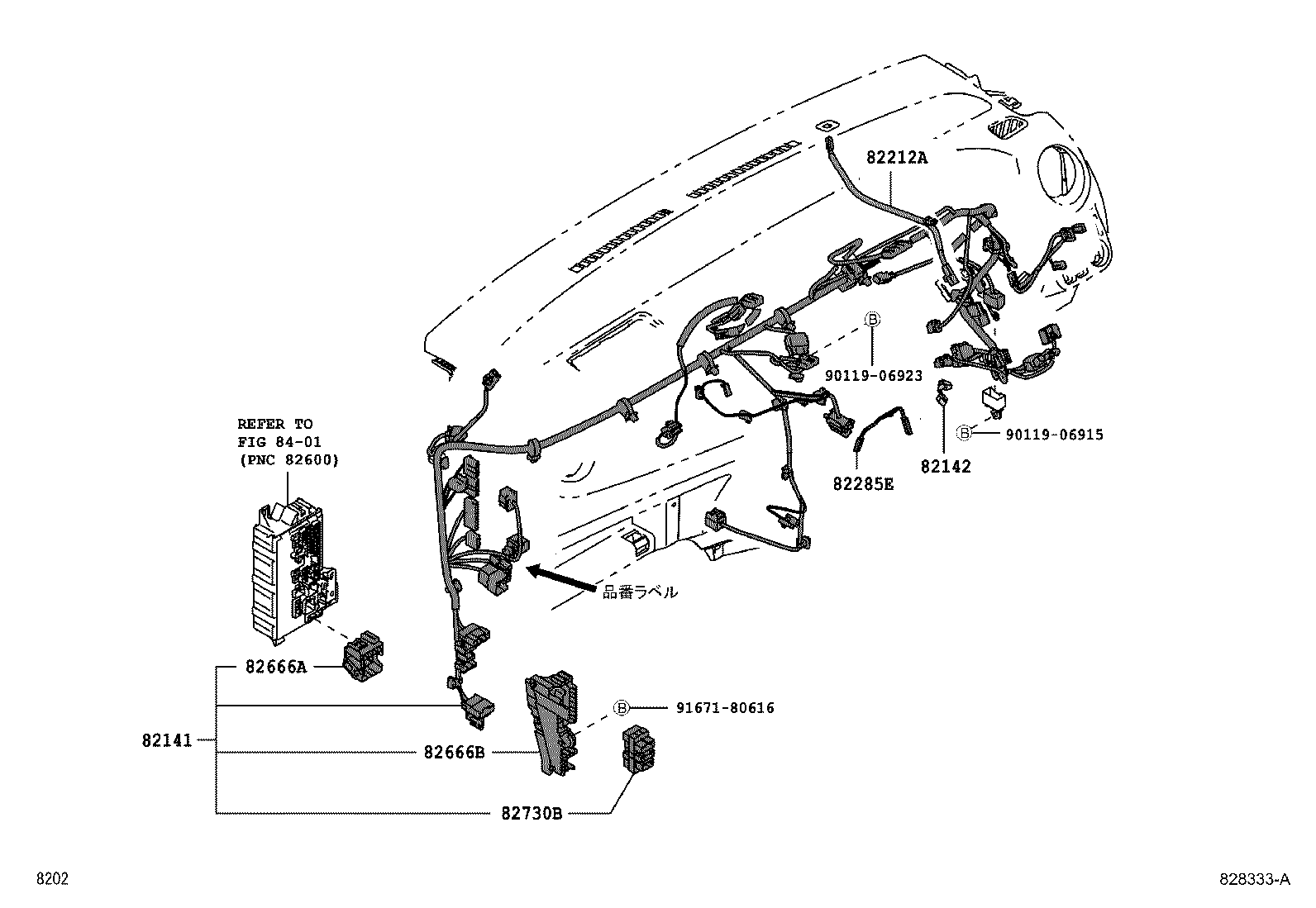

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

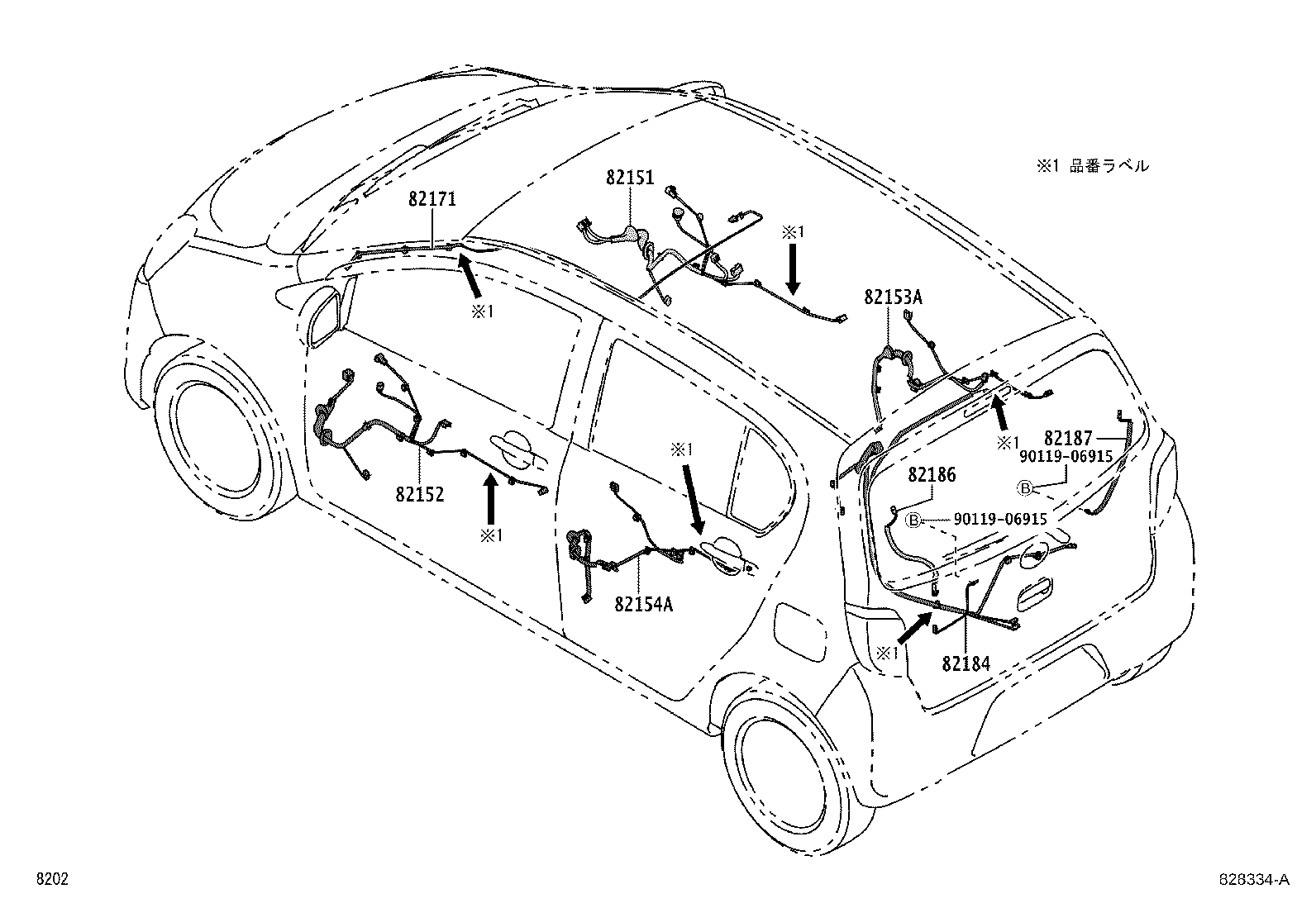

82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

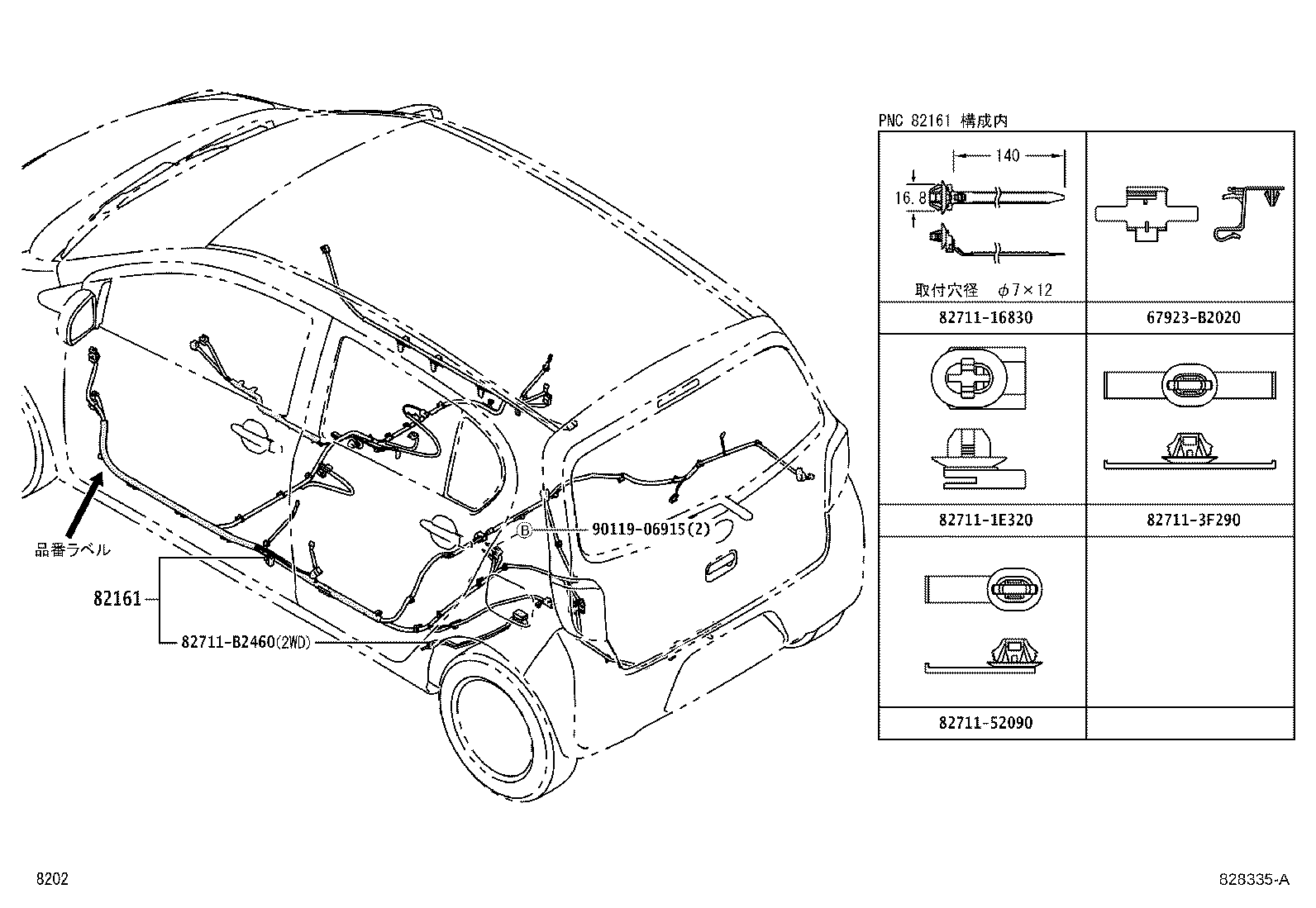

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82212A Harness, Air Conditioner
82285E Wire, Illumination

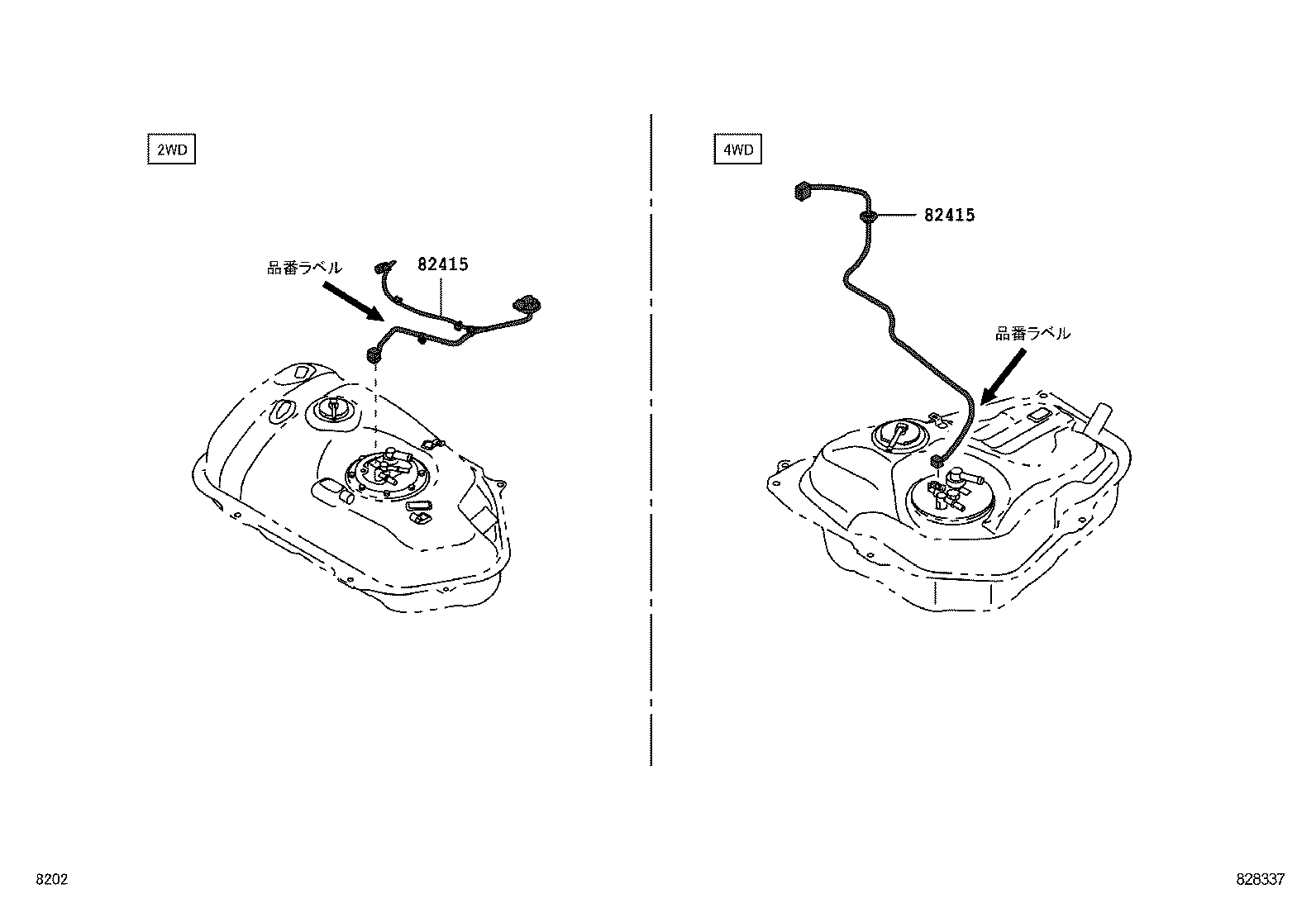

82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82730B Block Assy, Passenger Side Junction
82821H Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
