Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 2 illustrations

Illustrations

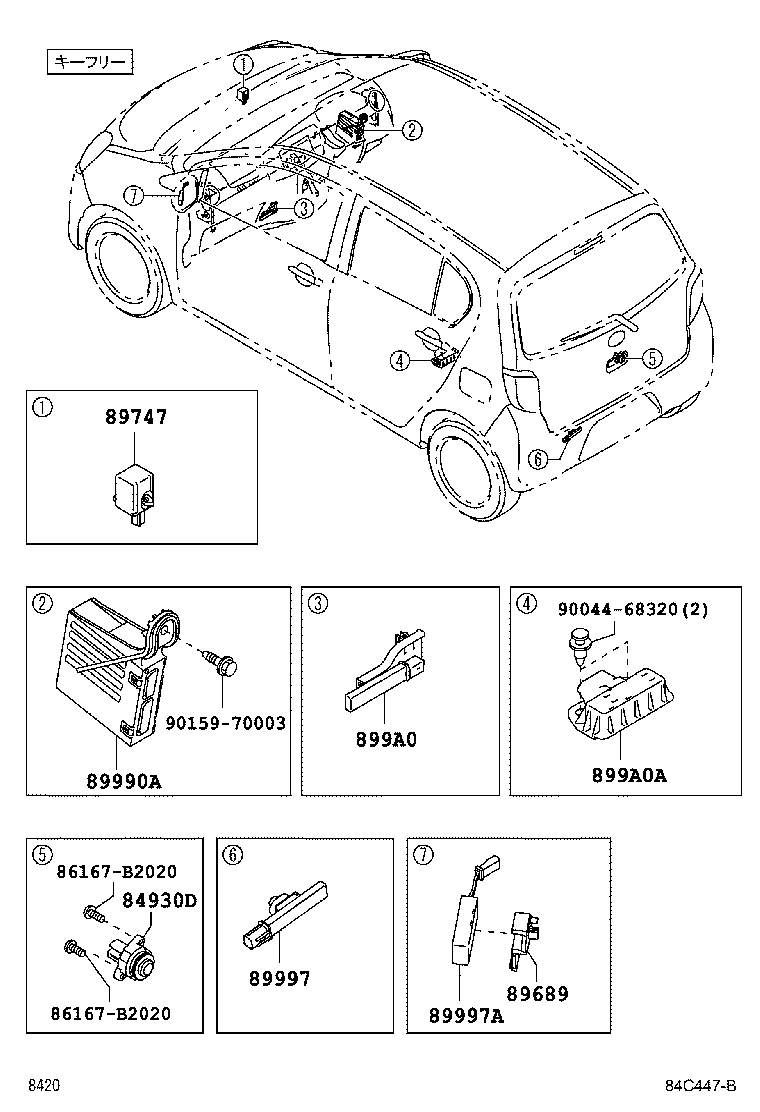

Figure 84C446 84C446 2012-04 → — Figure 84C447B 84C447B 2012-04 → —

Part groups

PNCDescription
84930D Switch, Door Control
89689 Clamp, Wireless Door Lock
89743 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
89997A Antenna, Electrical Key, NO.2
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
