Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

3 part groups · 2 illustrations

Illustrations

866540 2012-04 → 2013-07

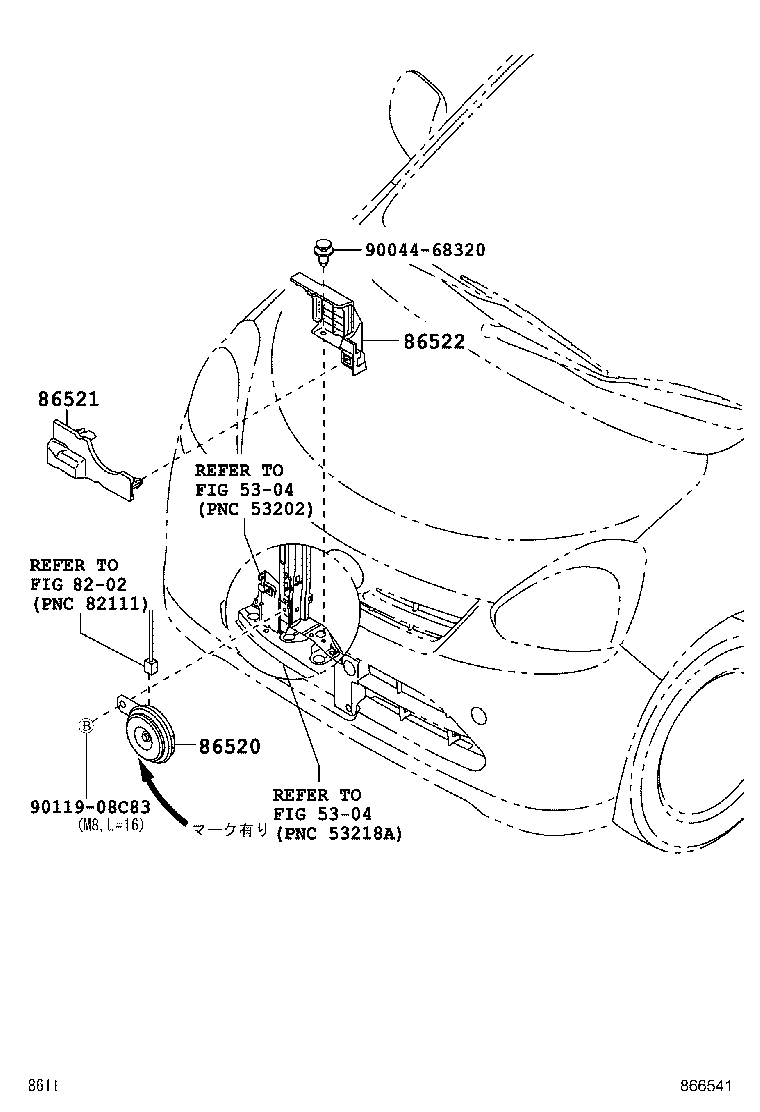

866541 2013-07 → —

Part groups

PNC	Description
86520	Horn Assy, Low Pitched
86521	Cover, Low Pitched Horn
86522	Protector, Horn

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
