Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 3 illustrations

Illustrations

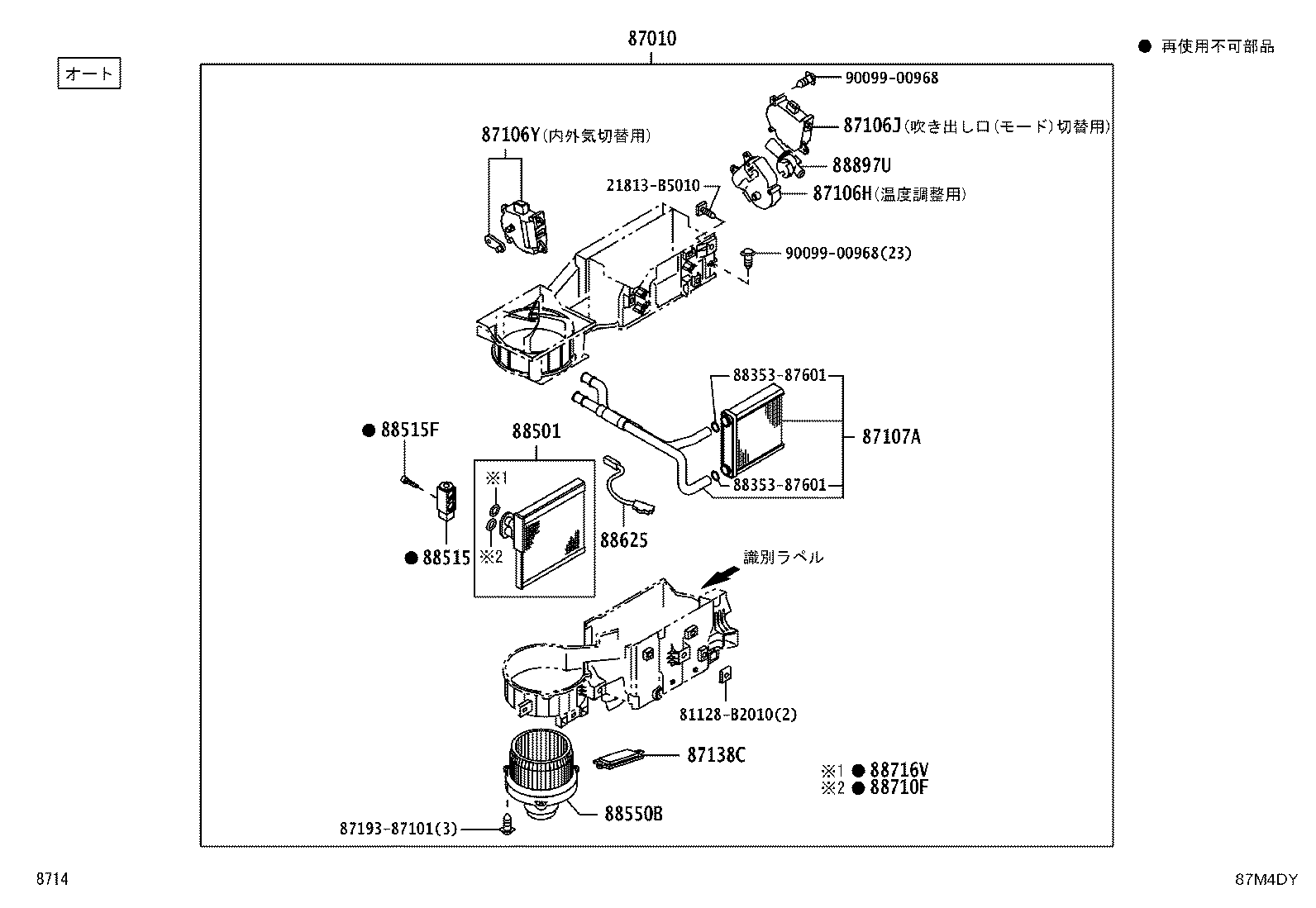

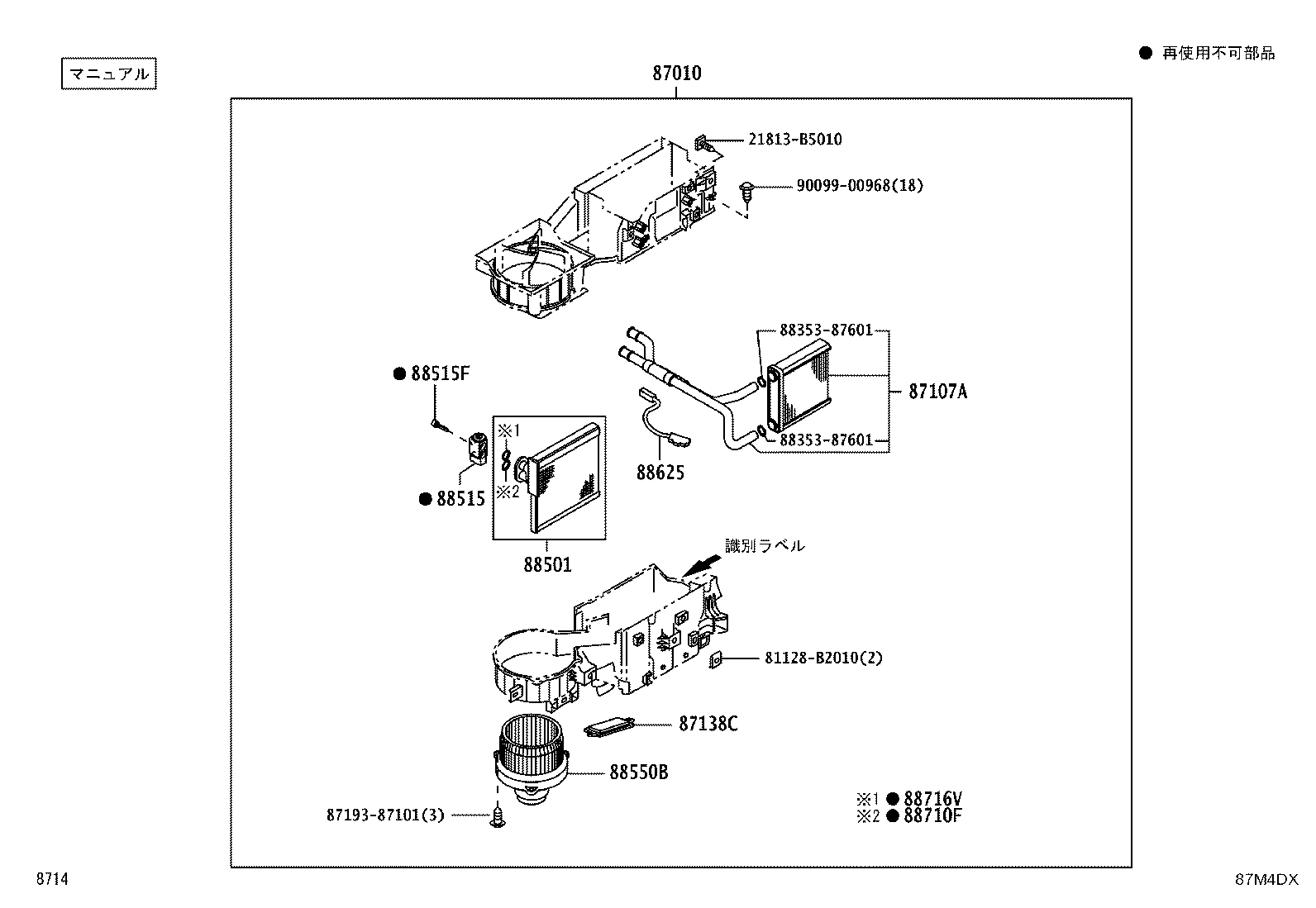

Figure 87F732 87F732 2012-04 → — Figure 87M4DX 87M4DX 2012-04 → — Figure 87M4DY 87M4DY 2012-04 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88550B Motor Assy, Blower
88568B Filter, Air
88625 Thermistor, Cooler, NO.1
88648P Wire,Air Conditioner,NO.1
88710F Ring, O
88716V Ring, O(FOR COOLER UNIT)
88892N Cover, Cooler, NO.2
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
