Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 3 illustrations

Illustrations

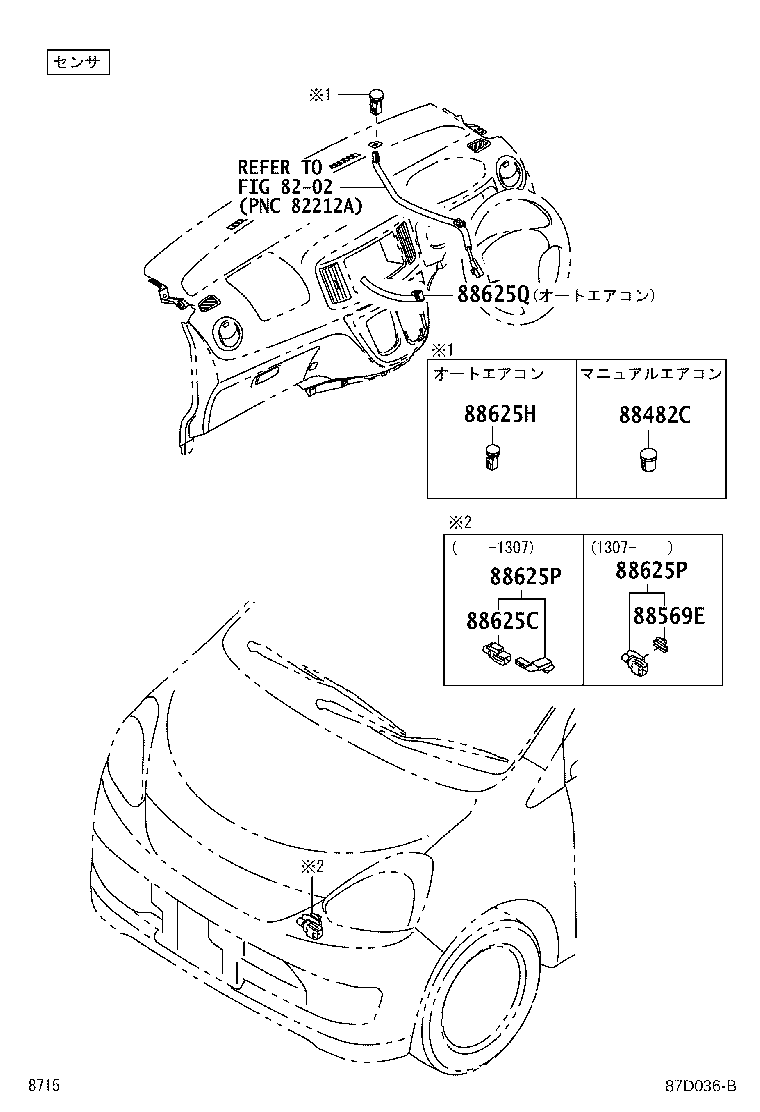

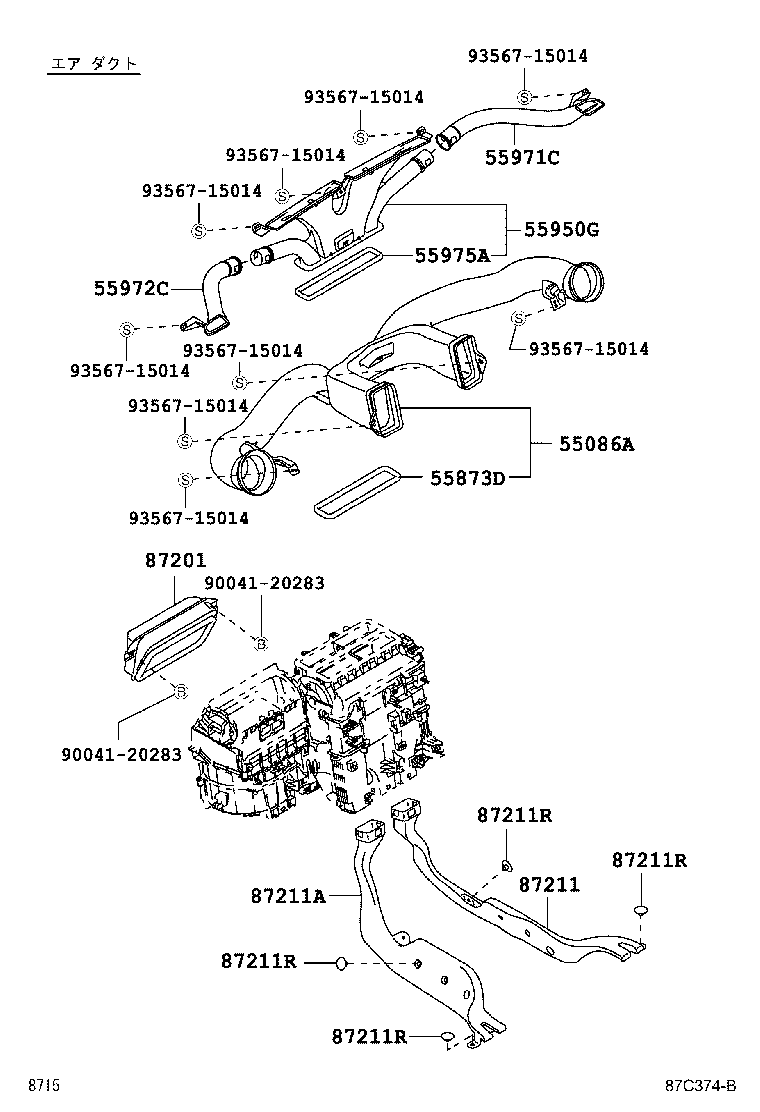

Figure 87F733 87F733 2012-04 → — Figure 87C374B 87C374B 2012-04 → — Figure 87D036B 87D036B 2012-04 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55975A Seal, Defroster Nozzle, NO.1
81942A Sheet, Heater Control Name, NO.1
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211R Clip, Air Duct
88482C Cap, Cooler
88569E Clamp (FOR COOLER THERMISTOR)
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
