Toyota Pixis Epoch

2012-04 → 2017-04 · chassis LA300A,LA310A · catalogue 594110 · Japan

Supported model Data version 2017-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

24 part groups · 2 illustrations

Illustrations

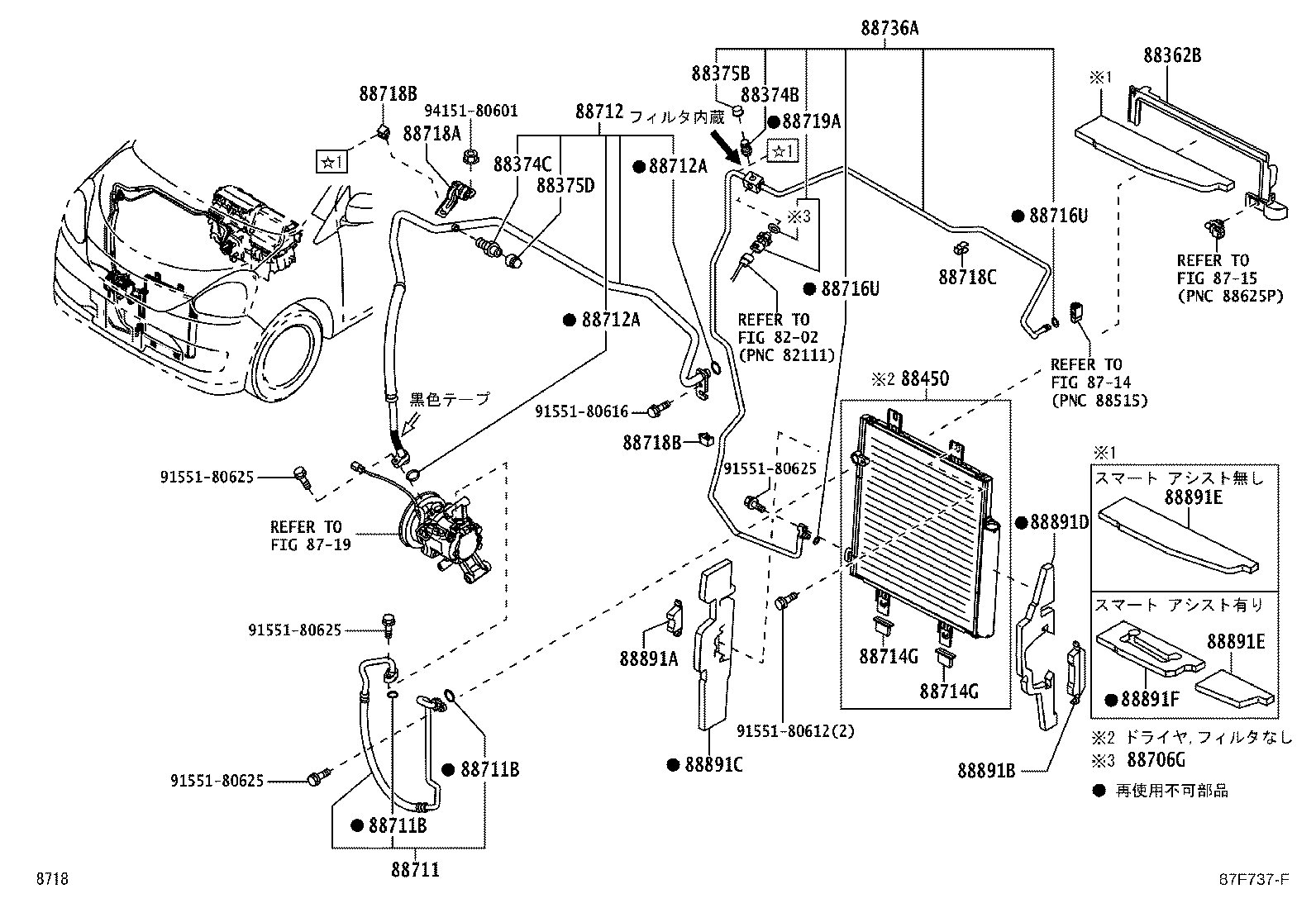

Figure 87F736E 87F736E 2012-04 → 2013-07 Figure 87F737F 87F737F 2013-07 → —

Part groups

PNCDescription
88362B Plate, Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88706G Ring, O(FOR LIQUID TUBE)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88736A Tube, Liquid, A(FOR COOL BOX)
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
88891F Packing F (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
