Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

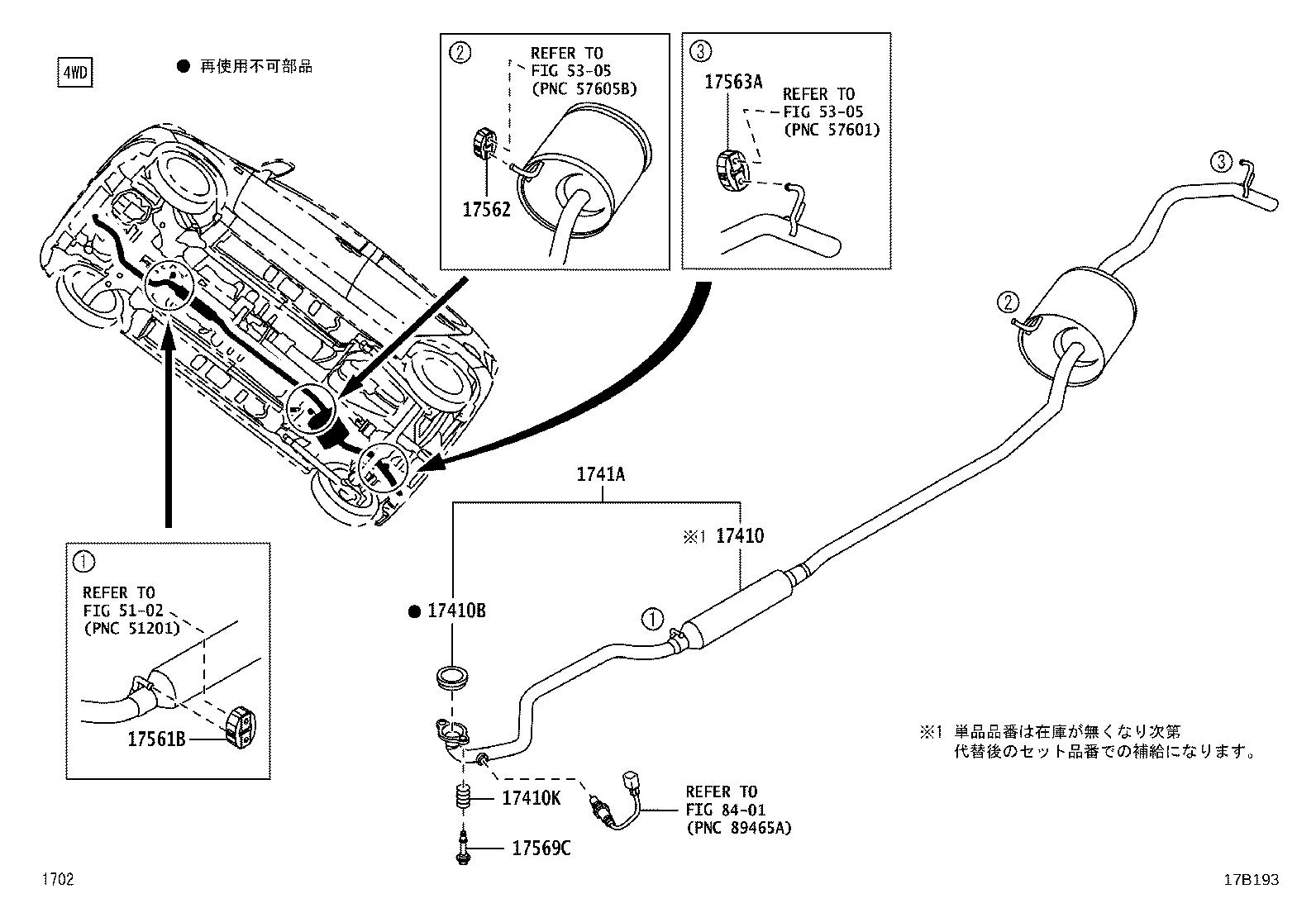

Figure 17B192 17B192 2017-05 → — Figure 17B193 17B193 2017-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410K Spring, Exhaust Pipe
1741A Pipe Set, Exhaust
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17569C Bolt, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
