Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 2 illustrations

Illustrations

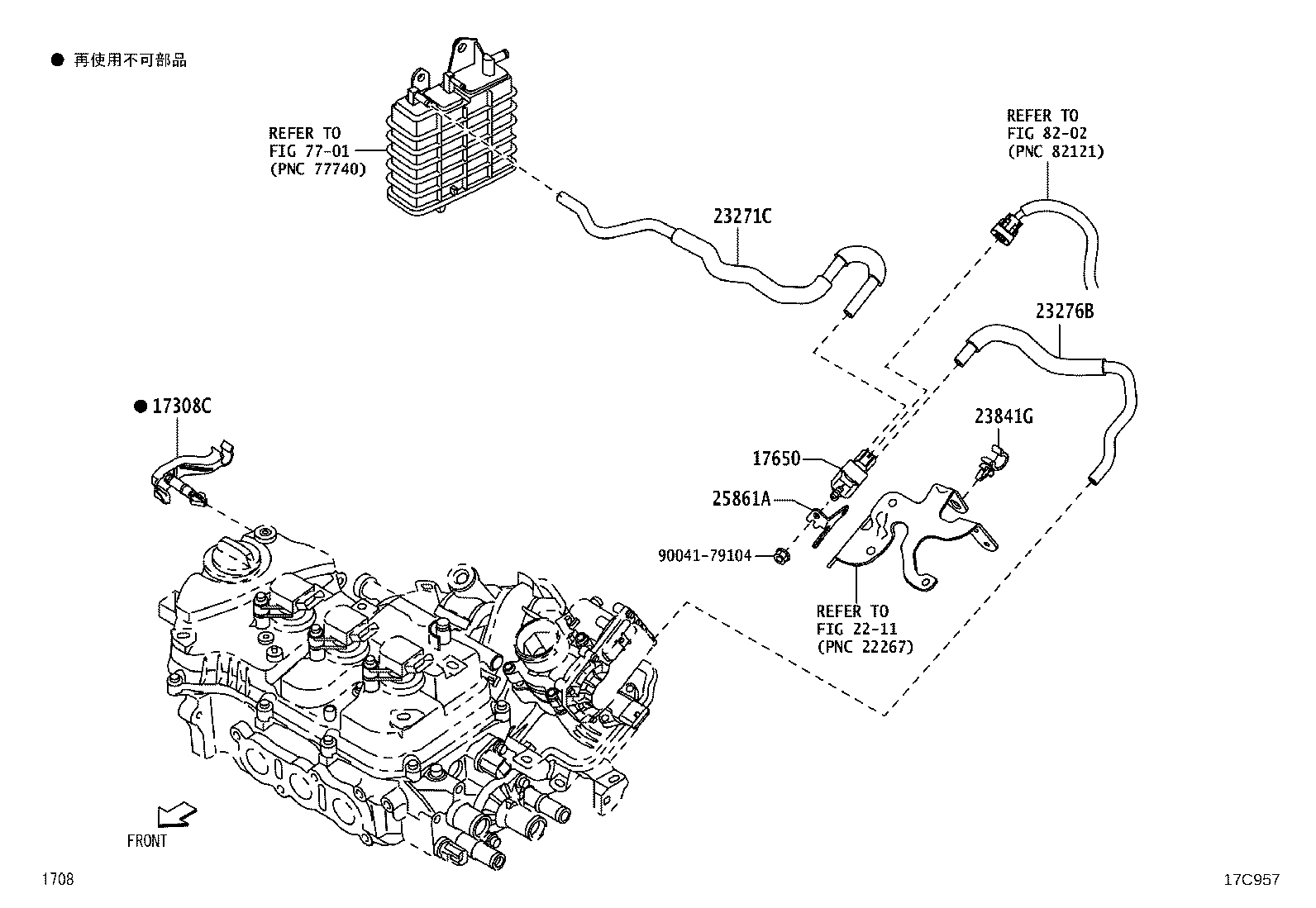

Figure 17B194 17B194 2017-05 → 2023-09 Figure 17C957 17C957 2023-09 → —

Part groups

PNCDescription
17308C Clamp(FOR VACUUM HOSE)
17650 Valve Assy, Vacuum Switching
23271C Hose, Fuel
23276B Hose(FOR VACUUM CONTROL VALVE)
23841G Clamp, Fuel Hose
25860 Valve Assy, Vacuum Switching, NO.1
25861A Bracket, Vacuum Switching Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
