Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

5 part groups · 2 illustrations

Illustrations

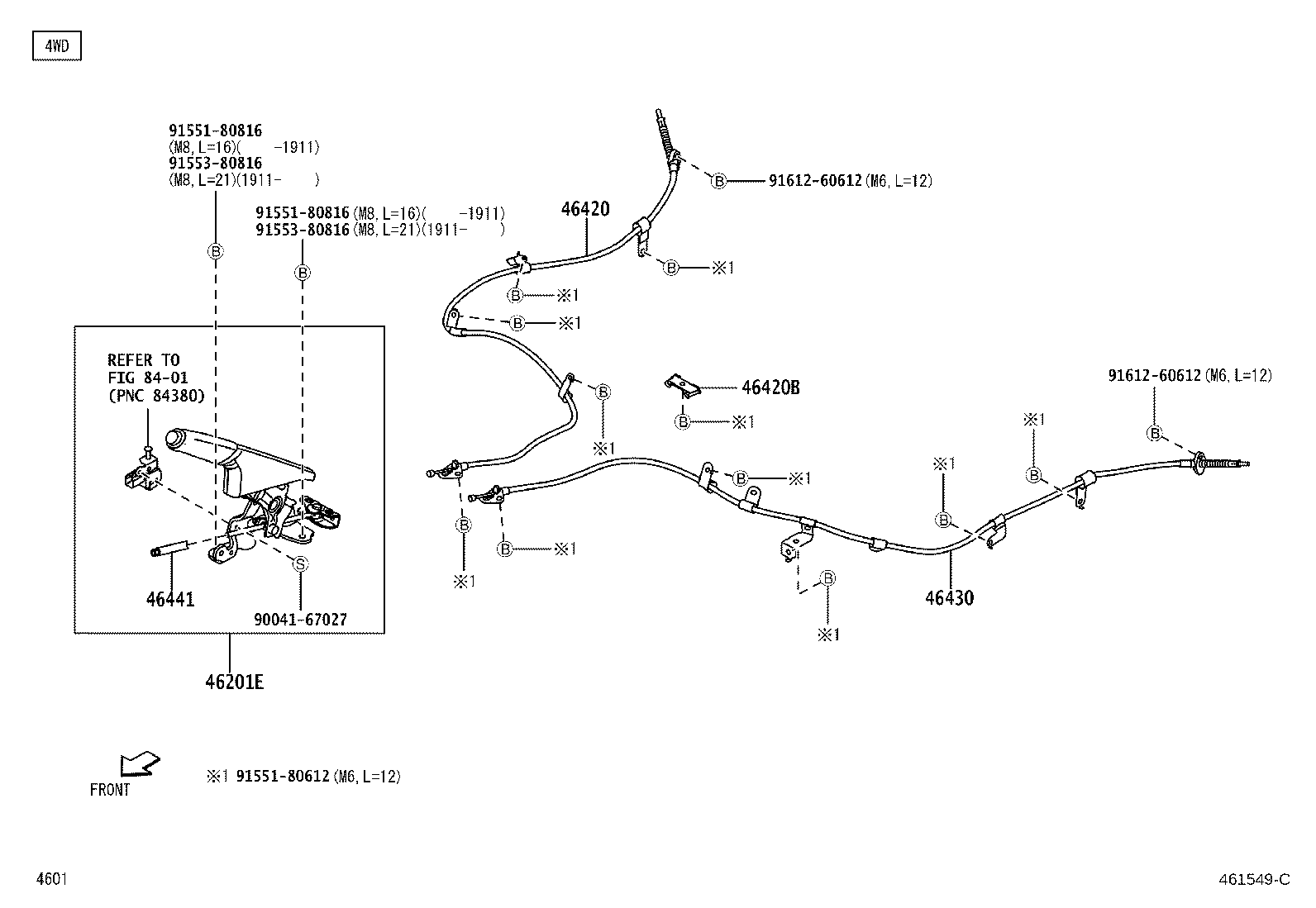

Figure 461548C 461548C 2017-05 → — Figure 461549C 461549C 2017-05 → —

Part groups

PNCDescription
46201E Lever Sub-assy, Parking Brake
46420 Cable Assy, Parking Brake, NO.2
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
