Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

7 part groups · 2 illustrations

Illustrations

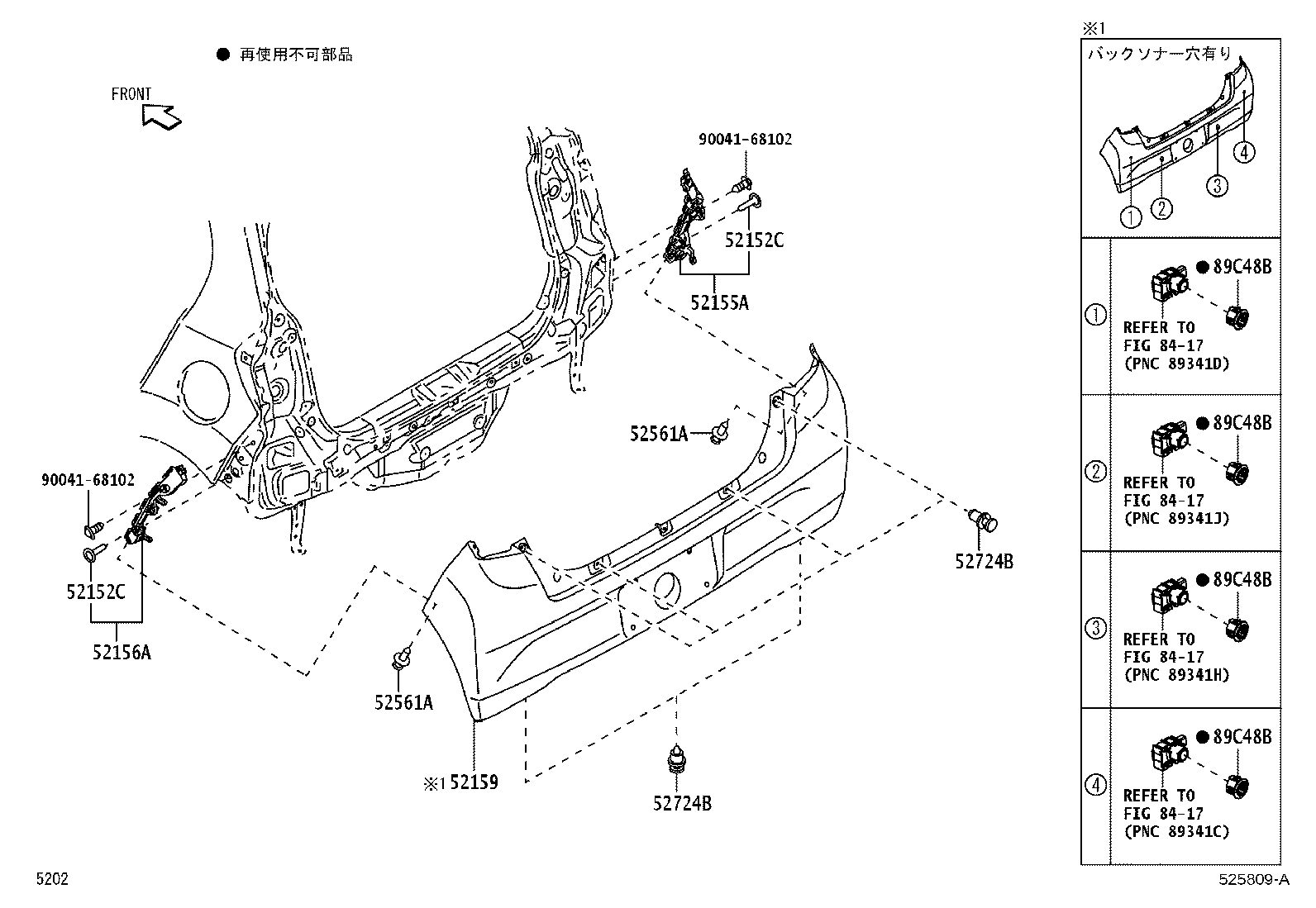

Figure 525069A 525069A 2017-05 → 2024-10 Figure 525809A 525809A 2024-10 → —

Part groups

PNCDescription
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
52724B Clip, Rear Bumper Extension Moulding, NO.2
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
