Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

24 part groups · 2 illustrations

Illustrations

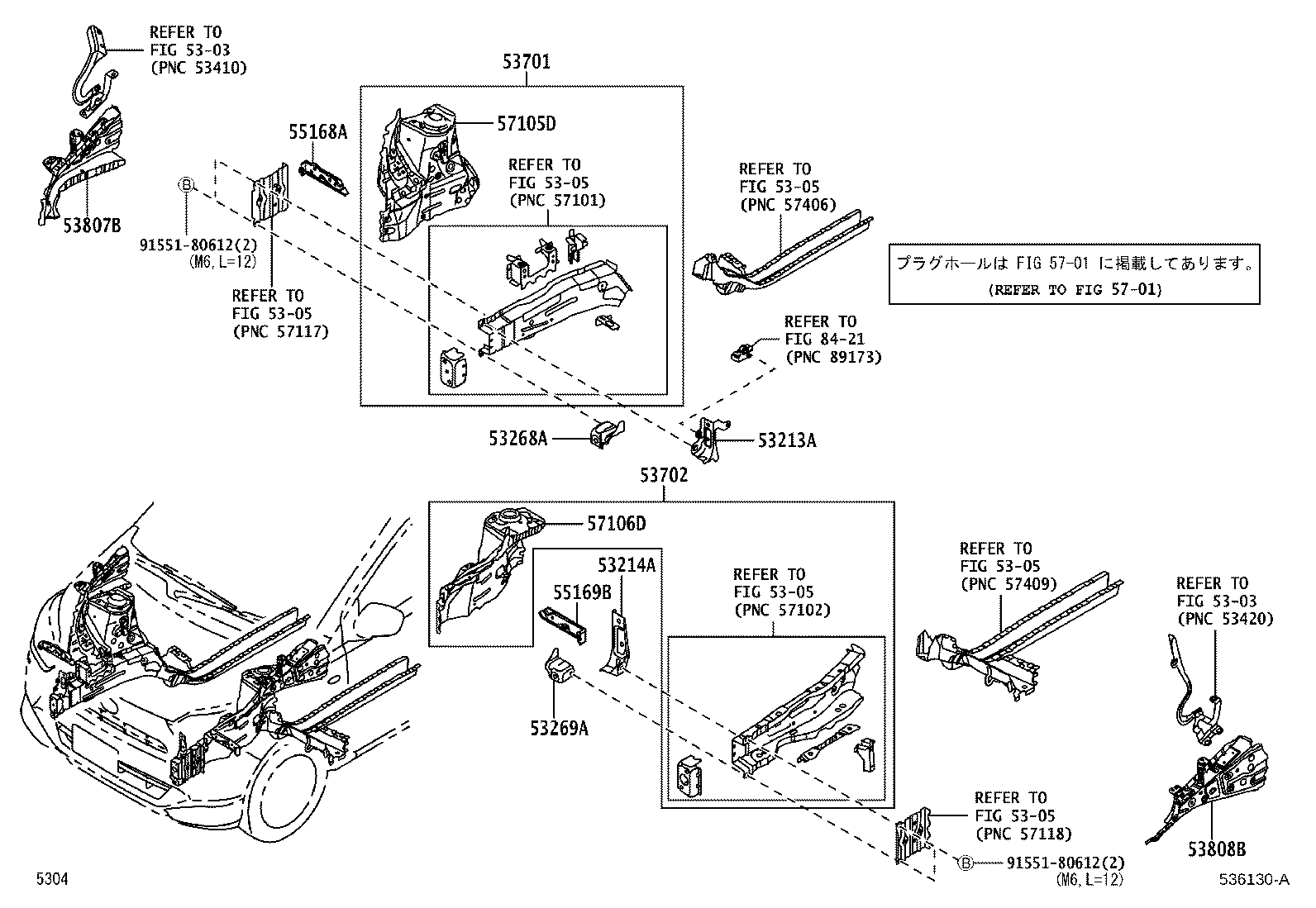

Figure 5390CQ 5390CQ 2017-05 → — Figure 536130A 536130A 2017-05 → —

Part groups

PNCDescription
53201 Support Sub-assy, Radiator
53209B Brace Sub-assy, Hood Lock Support
53213A Support, Radiator, Upper RH
53214A Support, Radiator, Upper LH
53215B Support, Hood Lock
53217A Brace, Hood Lock Support
53228A Bracket, Radiator Mounting, Lower NO.1
53268A Reinforcement, Radiator Mounting, RH
53269A Reinforcement, Radiator Mounting, LH
53381D Bumper, Hood TO Front Shroud
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53807B Reinforcement Sub-assy, Front Fender, Top RH
53808B Reinforcement Sub-assy, Front Fender, Top LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55210A Clip
55210C Clip
55221 Board, Dash Panel Silencer
55223A Insulator, Dash Panel, Outer
57105D Plate Sub-assy, Front Side Member, RH
57106D Plate Sub-assy, Front Side Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
