Toyota Pixis Epoch
2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan
Supported model
Data version 2018-05

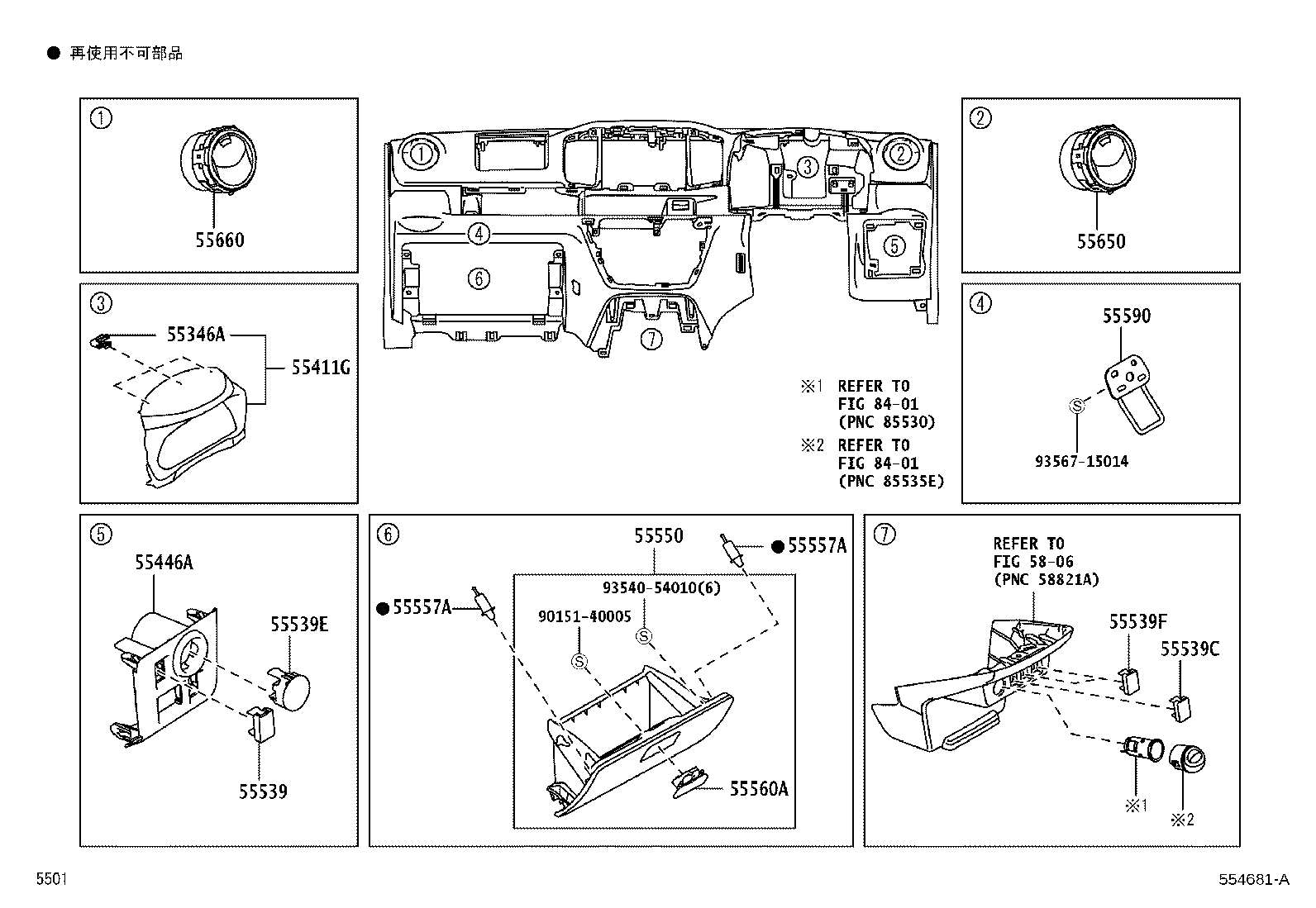

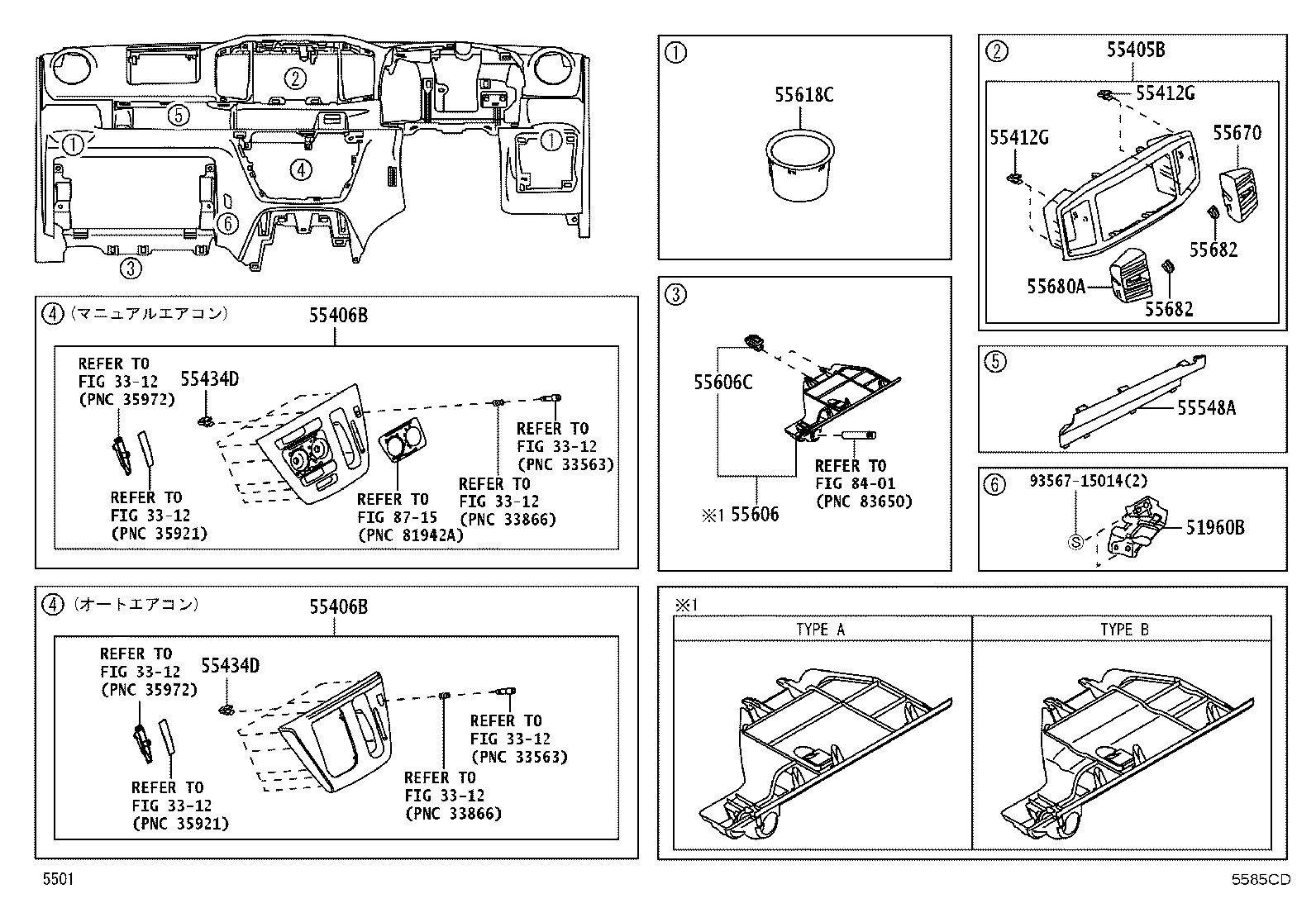

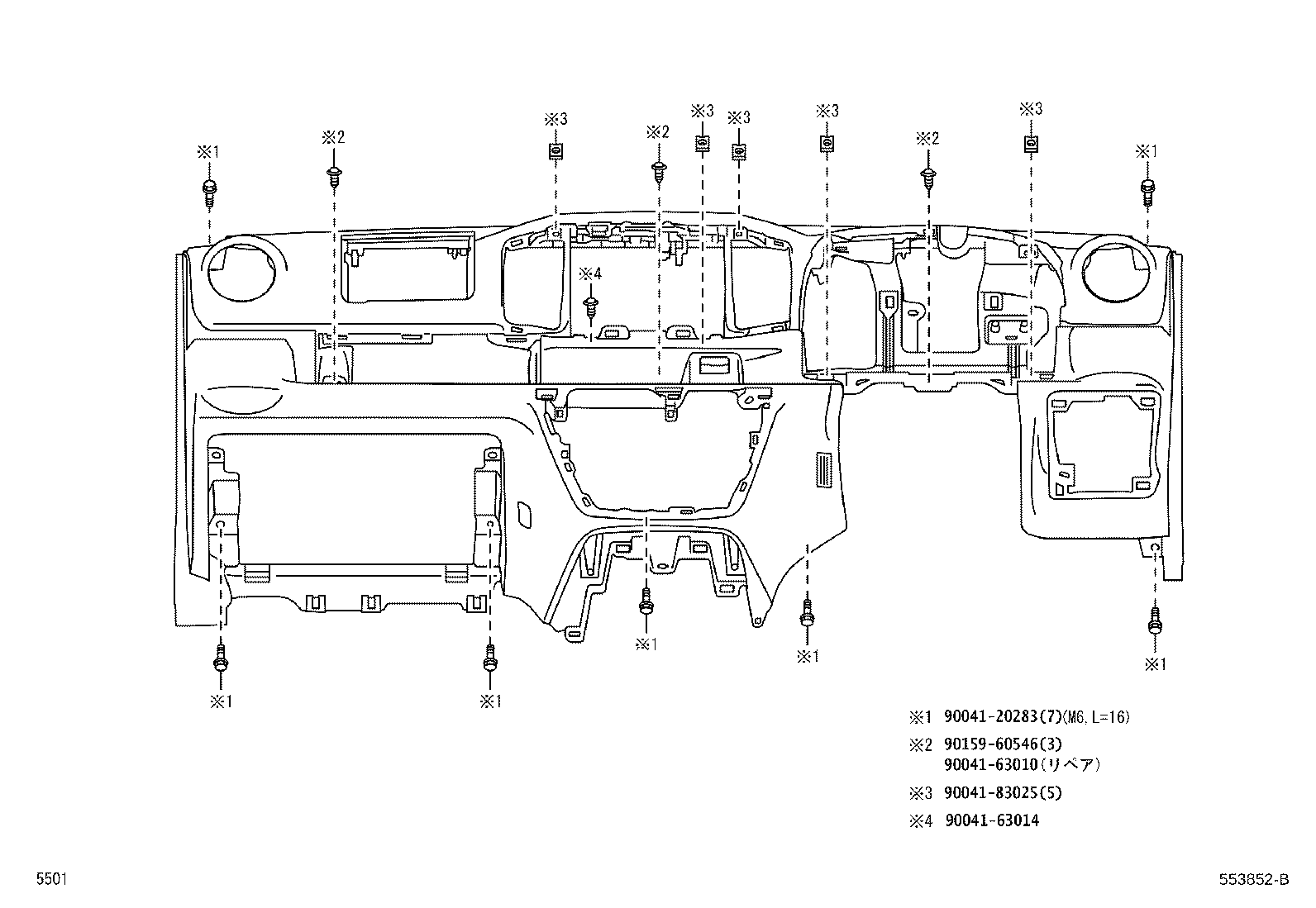

Instrument Panel & Glove Compartment
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51960B | Hook Assy, Front |
| 55301 | Panel Sub-assy, Instrument |
| 55331 | Reinforcement, Instrument Panel |
| 55346A | Clip, Instrument Panel, NO.2 |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55394B | Bolt, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412G | Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55446A | Base, Switch Hole, NO.1 |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55606C | Clip(FOR INSTRUMENT PANEL UNDER COVER) |
| 55618C | Holder, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55682 | Spring, Instrument Panel Register Support |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 88376D | Cap, Blind |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
