Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

12 part groups · 2 illustrations

Illustrations

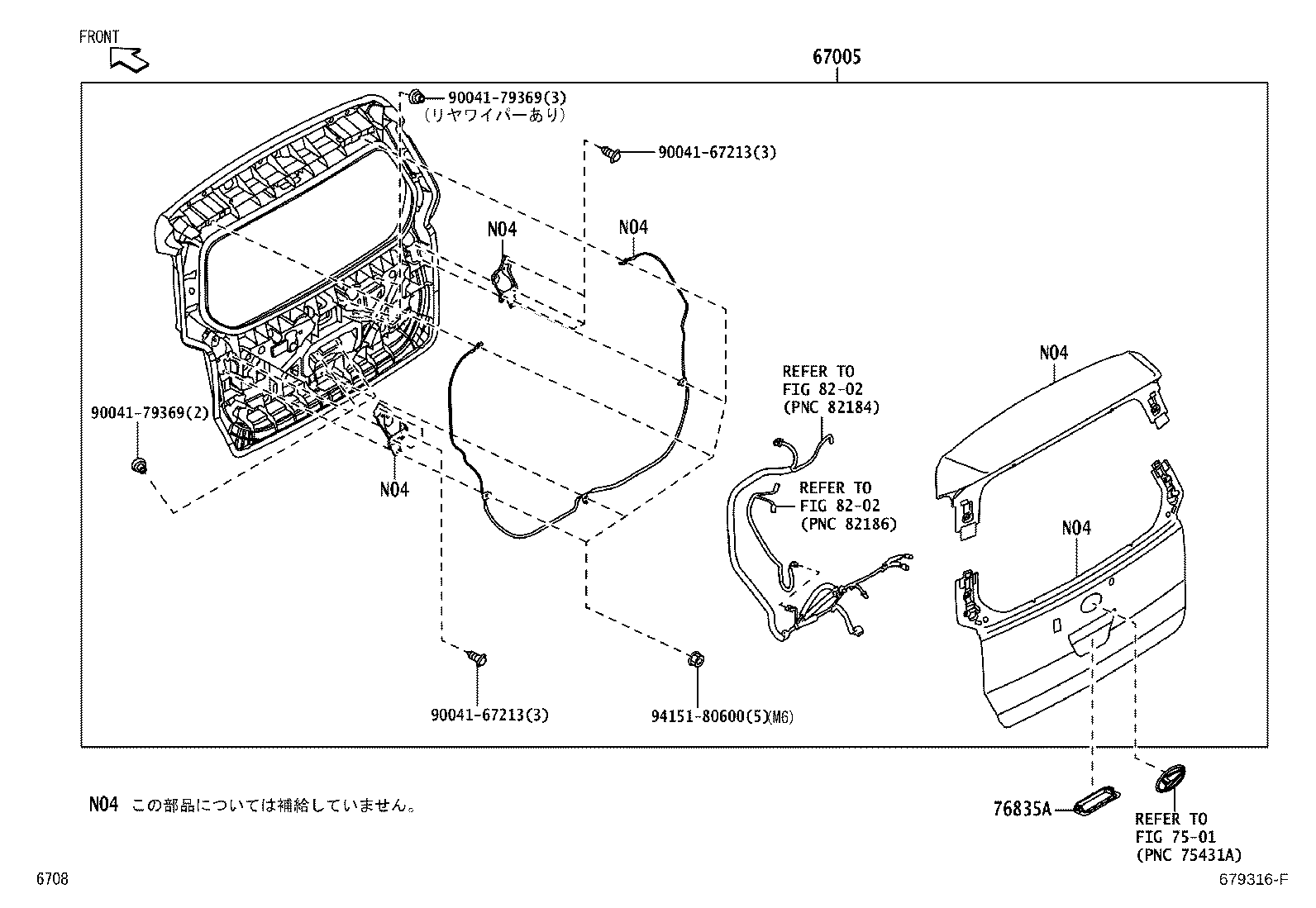

Figure 67A987B 67A987B 2017-05 → — Figure 679316F 679316F 2017-05 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67818B Spacer, Back Window Glass
67881A Weatherstrip, Back Door
68131 Glass, Back Door
76835A Protector, Back Door Finish Panel, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
