Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

10 part groups · 2 illustrations

Illustrations

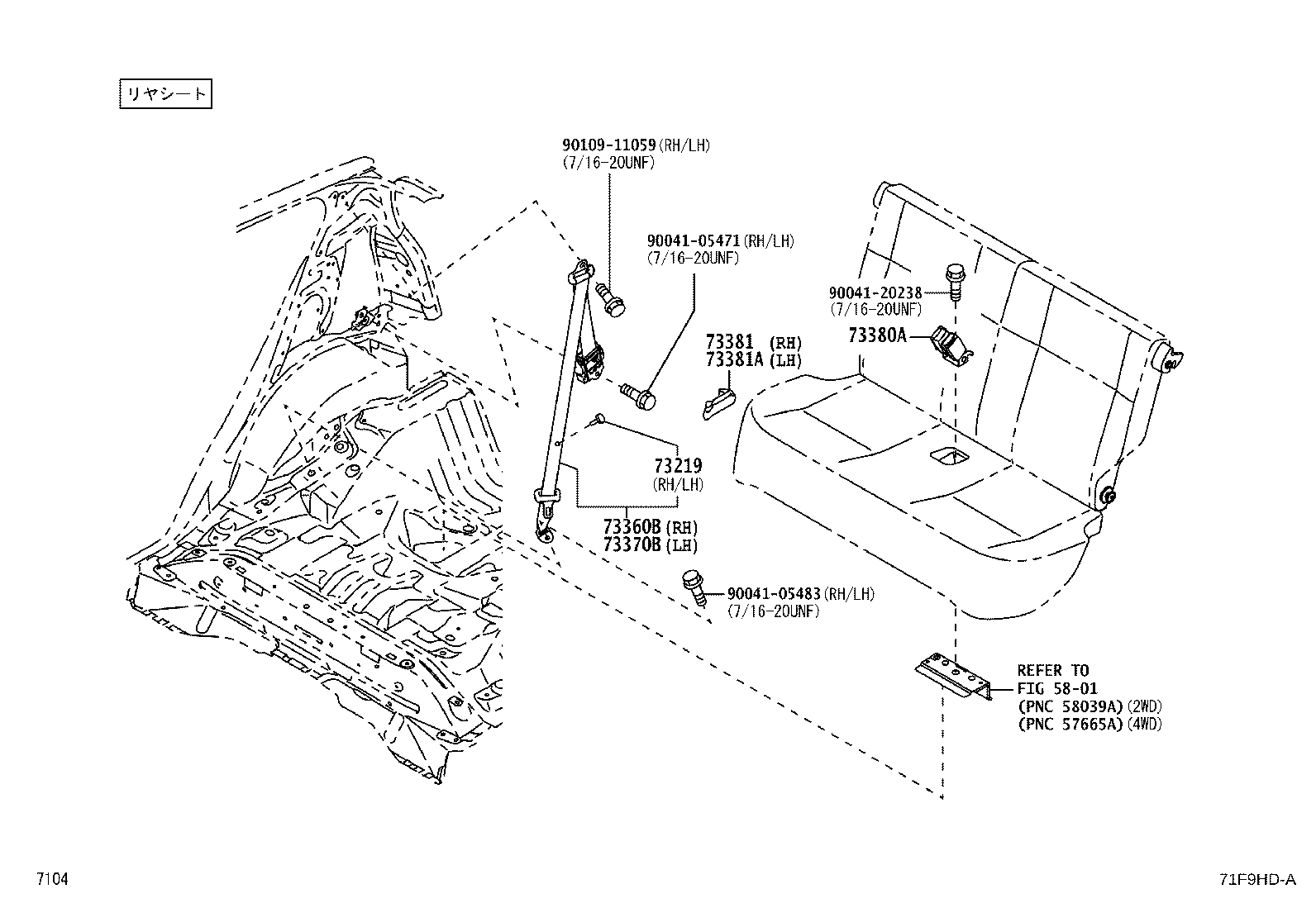

Figure 71F9HCA 71F9HCA 2017-05 → — Figure 71F9HDA 71F9HDA 2017-05 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73380A Belt Assy, Rear Seat, Inner
73381 Holder, Rear Seat Belt
73381A Holder, Rear Seat Belt NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
