Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

2 part groups · 2 illustrations

Illustrations

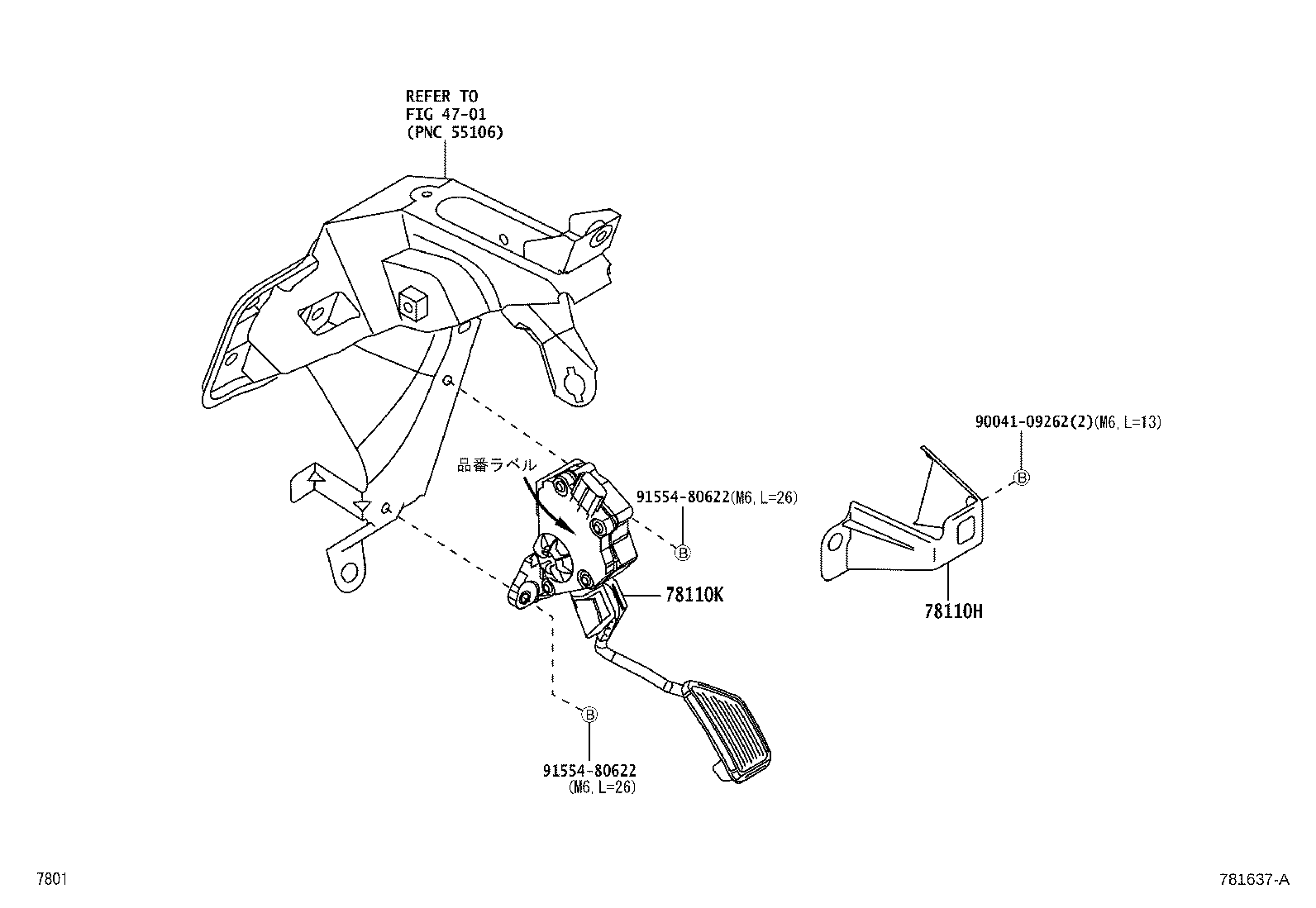

Figure 781549A 781549A 2017-05 → 2019-04 Figure 781637A 781637A 2019-04 → —

Part groups

PNCDescription
78110H Cover (FOR ACCELERATOR PEDAL ROD)
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
