Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

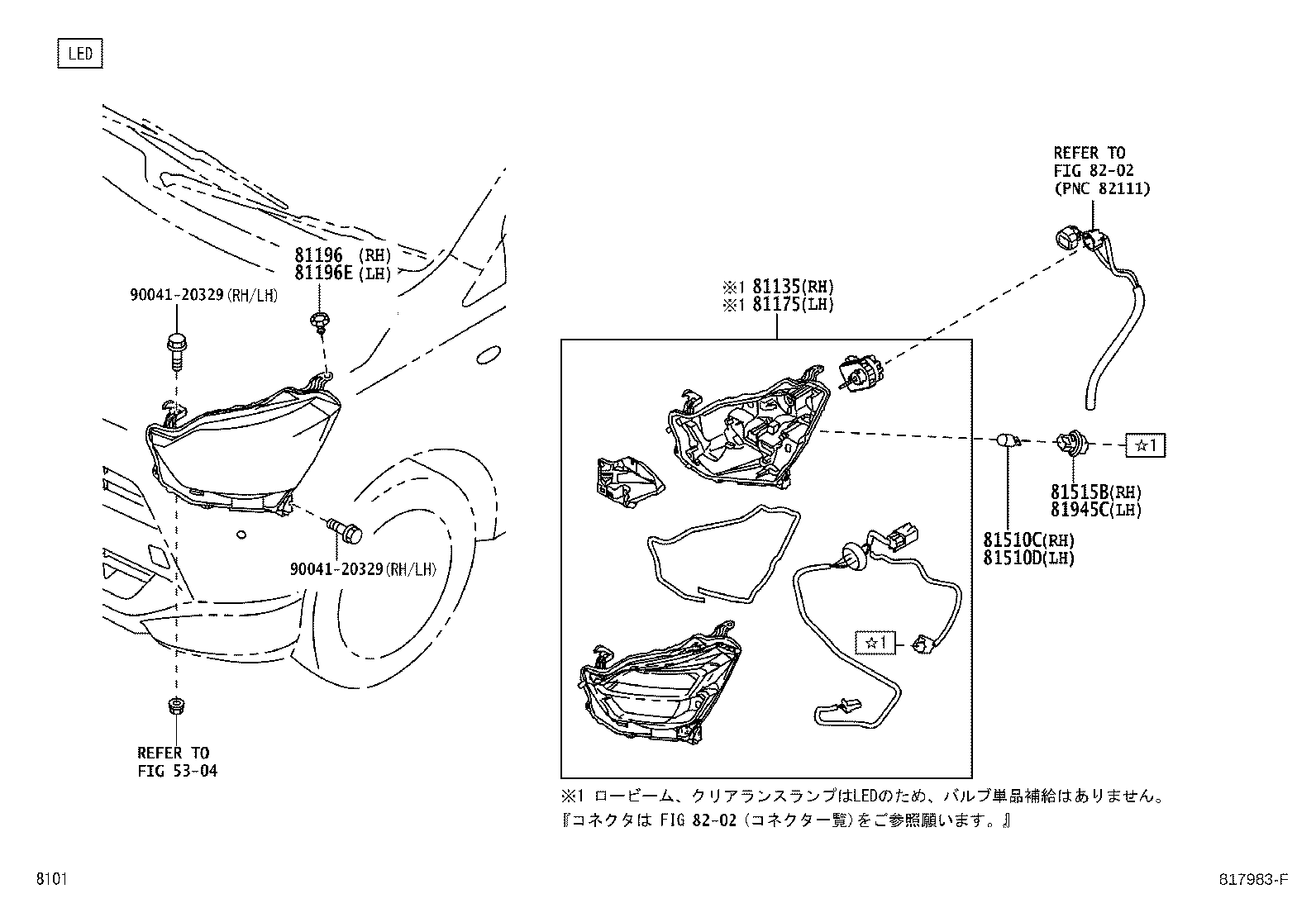

Figure 817982G 817982G 2017-05 → — Figure 817983F 817983F 2017-05 → —

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144C Cover, Headlamp Socket
81175 Unit Assy, Headlamp, LH
81196 Retainer, Headlamp
81196E Retainer, Headlamp
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615H Socket, Clearance Lamp, RH
81615J Socket, Clearance Lamp, LH
81945C Socket, Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
