Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 10 illustrations

Illustrations

Figure 82B044B 82B044B 2017-05 → — Figure 82C007B 82C007B 2017-05 → — Figure 82C008C 82C008C 2017-05 → — Figure 82B973D 82B973D 2017-05 → — Figure 82B050A 82B050A 2017-05 → — Figure 82B051C 82B051C 2017-05 → — Figure 82B052 82B052 2017-05 → — Figure 82B084C 82B084C 2017-05 → — Figure 82H5W4 82H5W4 2017-05 → — Figure 82H5W5 82H5W5 2017-05 → —

Part groups

PNCDescription
82046D Wire, Body Ground

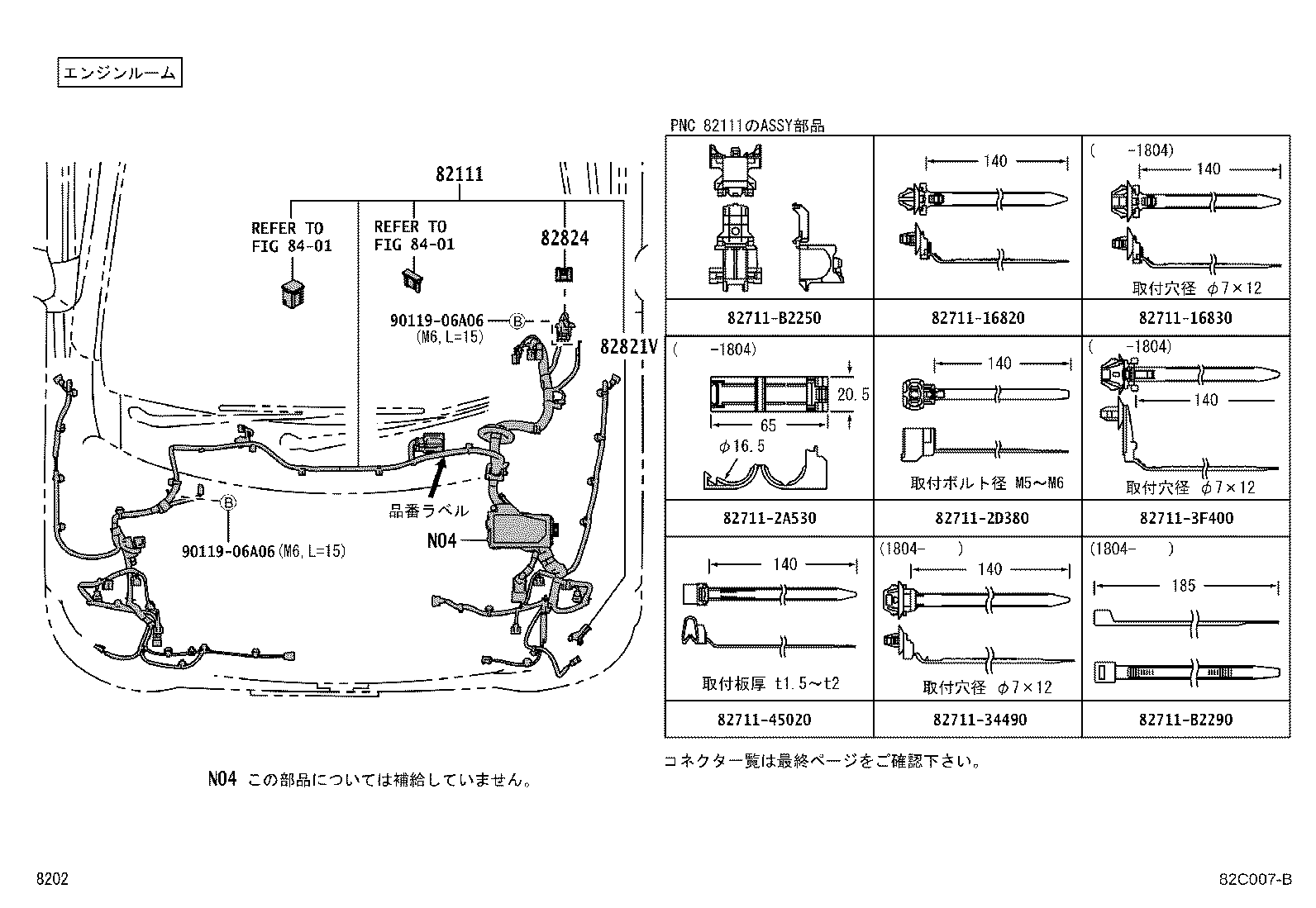

82111 Wire, Engine Room Main

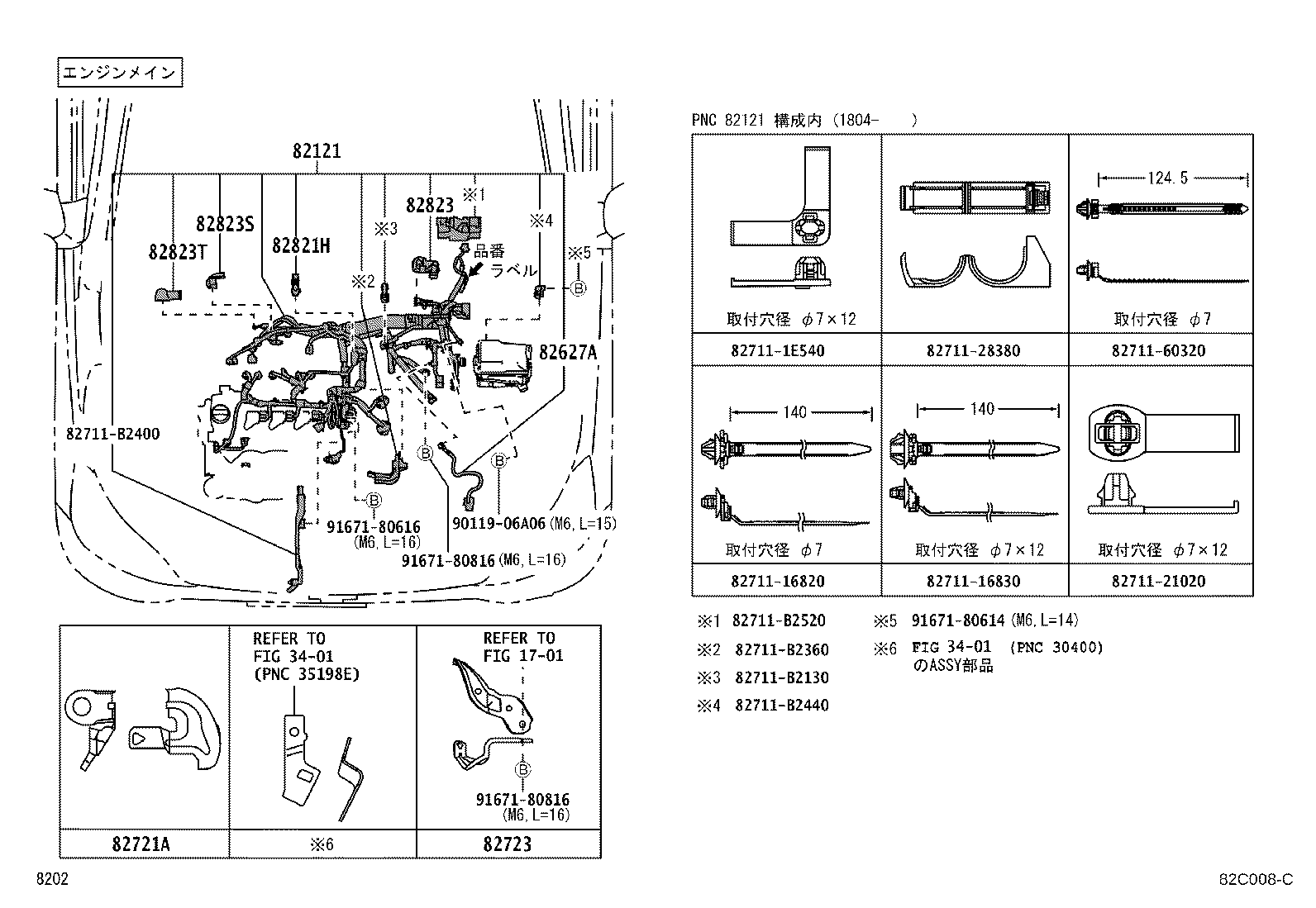

82121 Wire, Engine

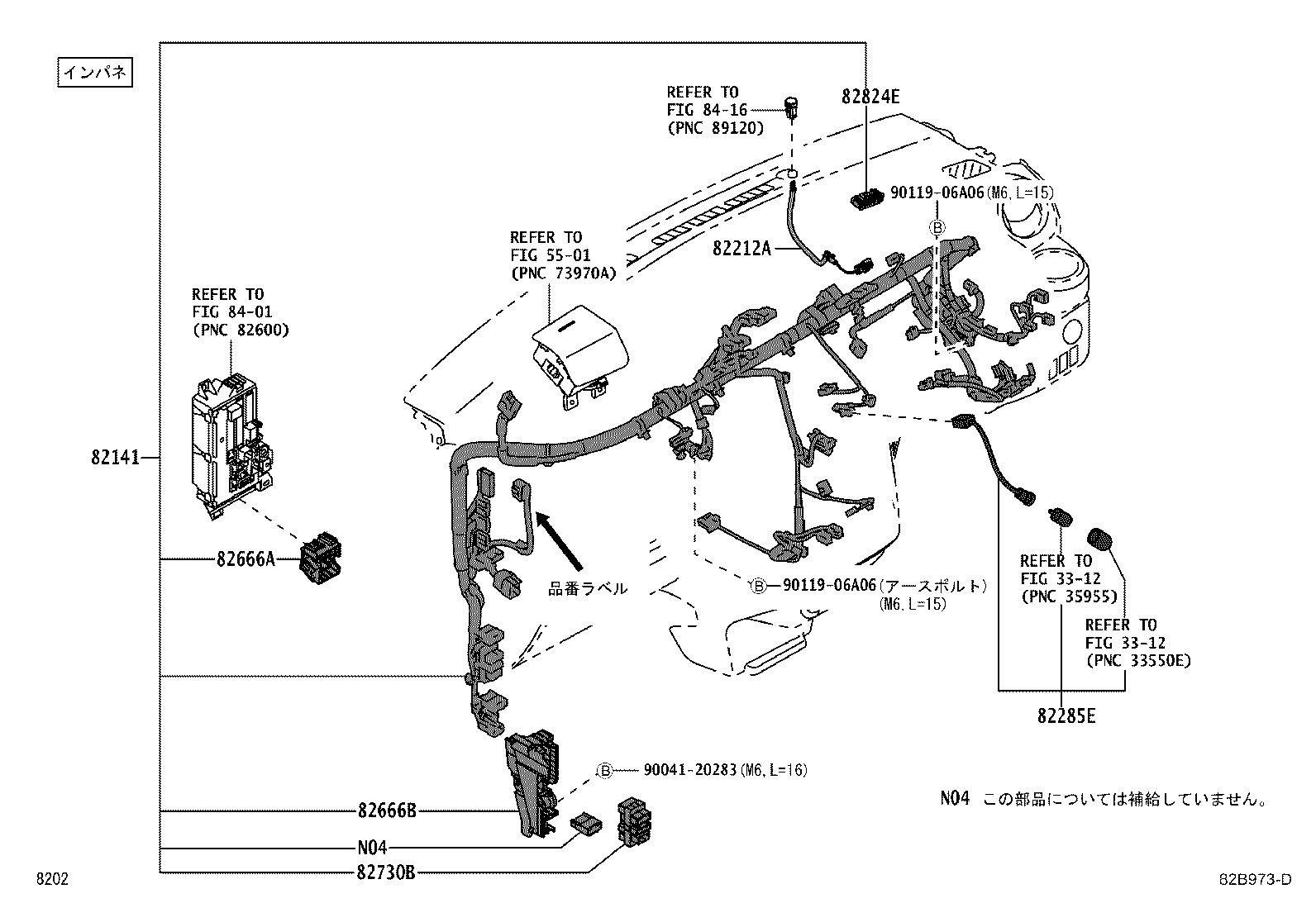

82141 Wire, Instrument Panel

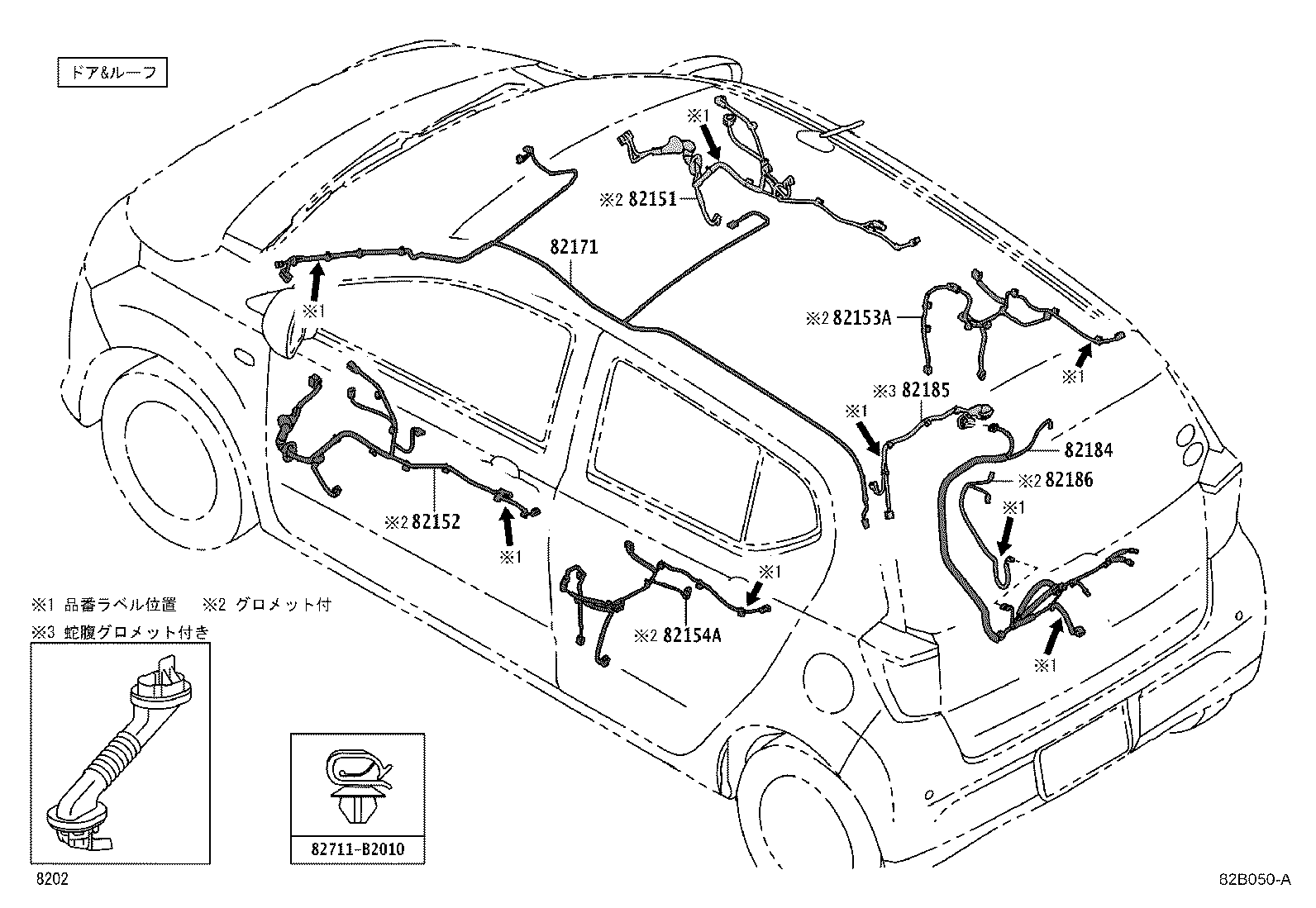

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

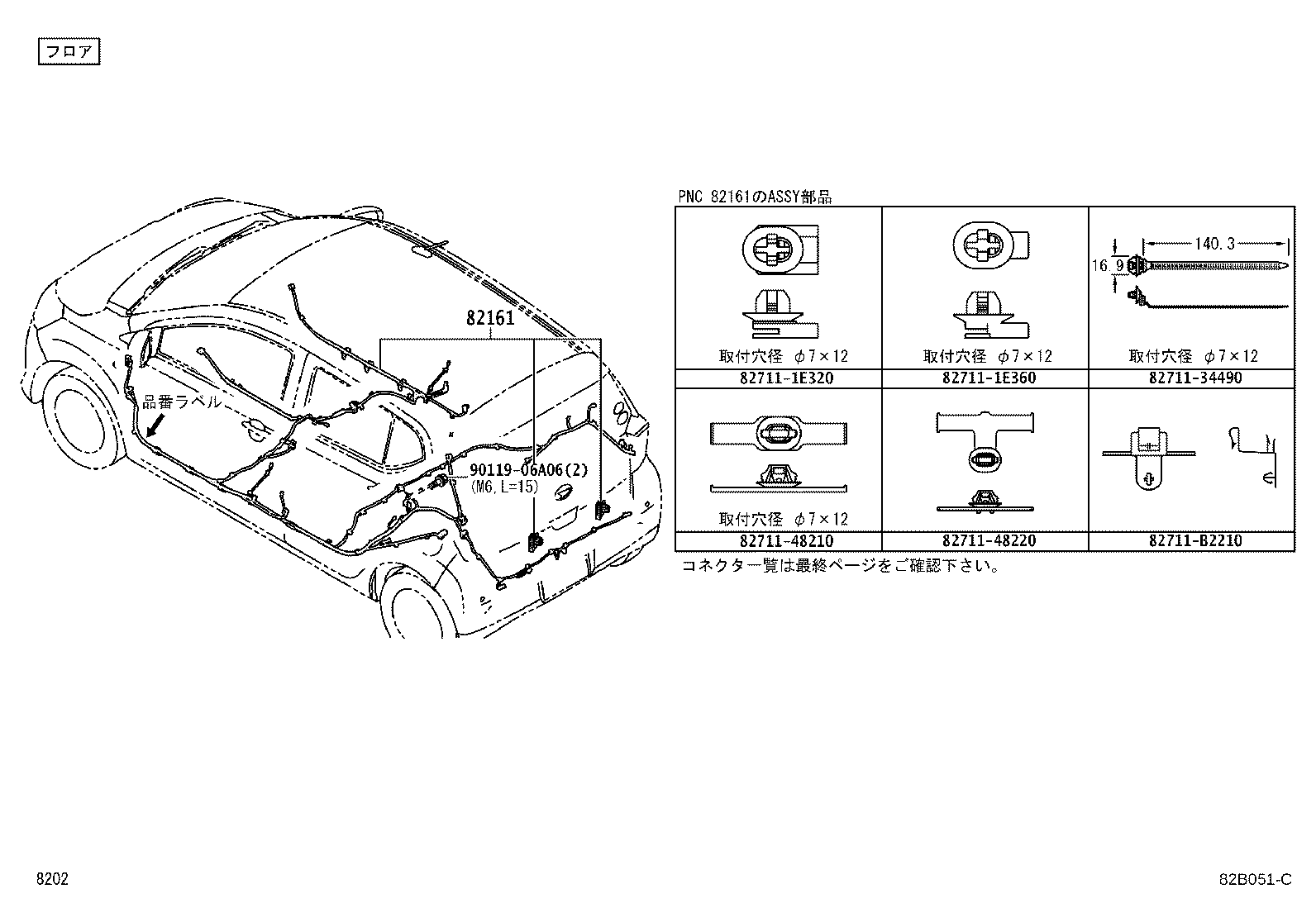

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82212A Harness, Air Conditioner
82285E Wire, Illumination

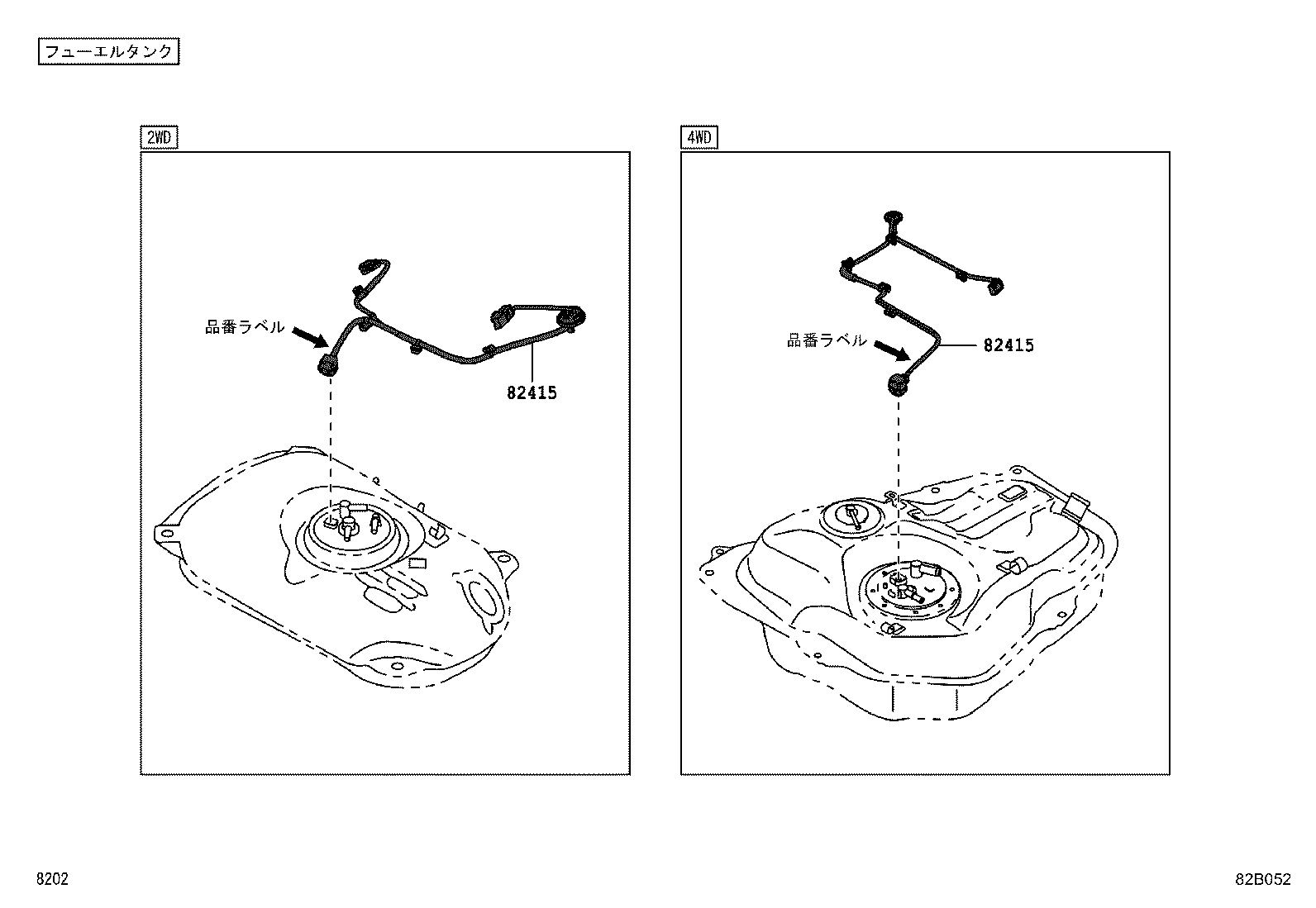

82415 Wire, Fuel Pump
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82721 Bracket, Wiring Harness, NO.1
82721A Bracket, Wiring Harness, NO.2
82723 Bracket, Wire Harness, NO.3
82730B Block Assy, Passenger Side Junction
82821H Cover, Connector
82821V Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

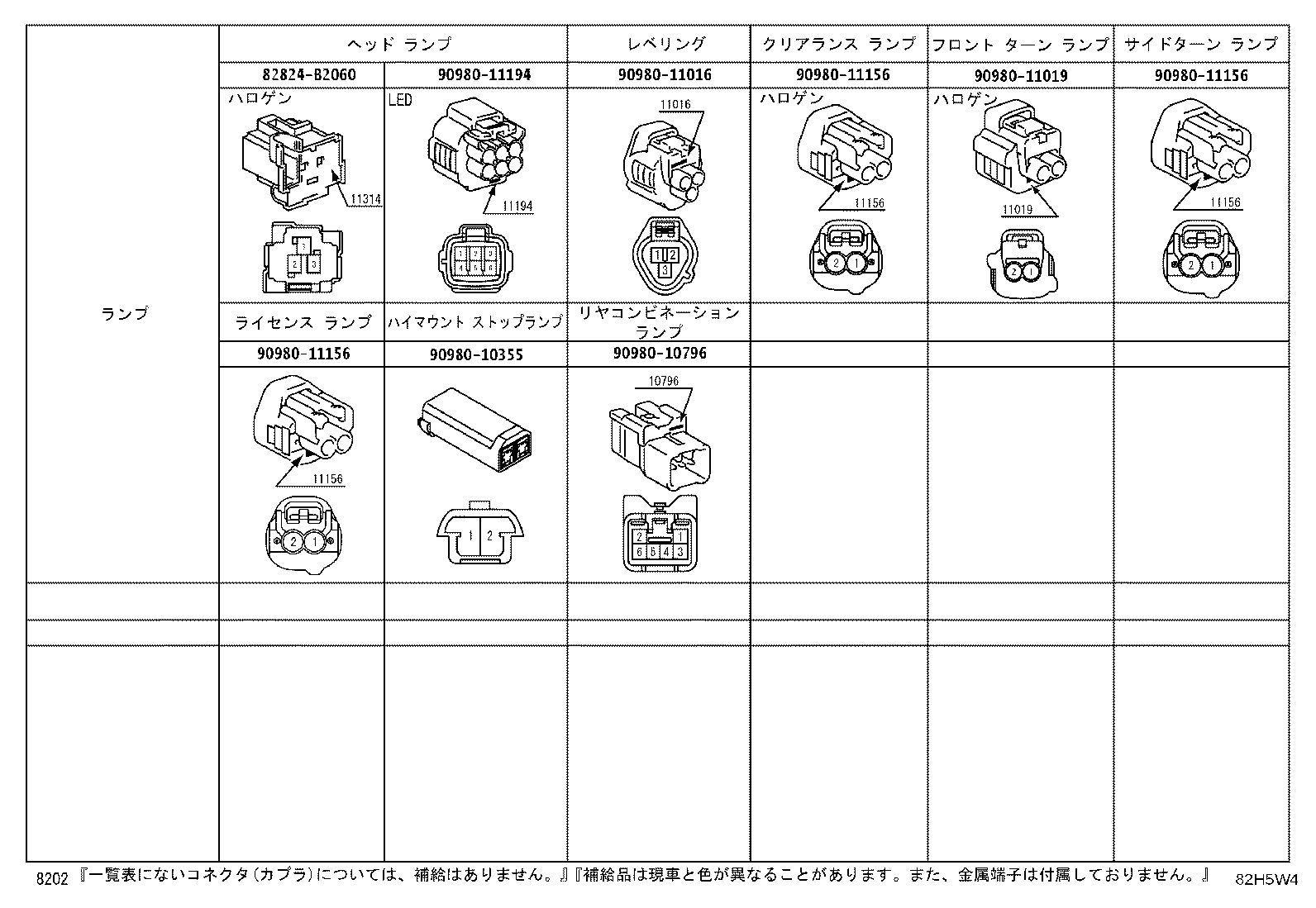

82824 Connector, Wiring Harness

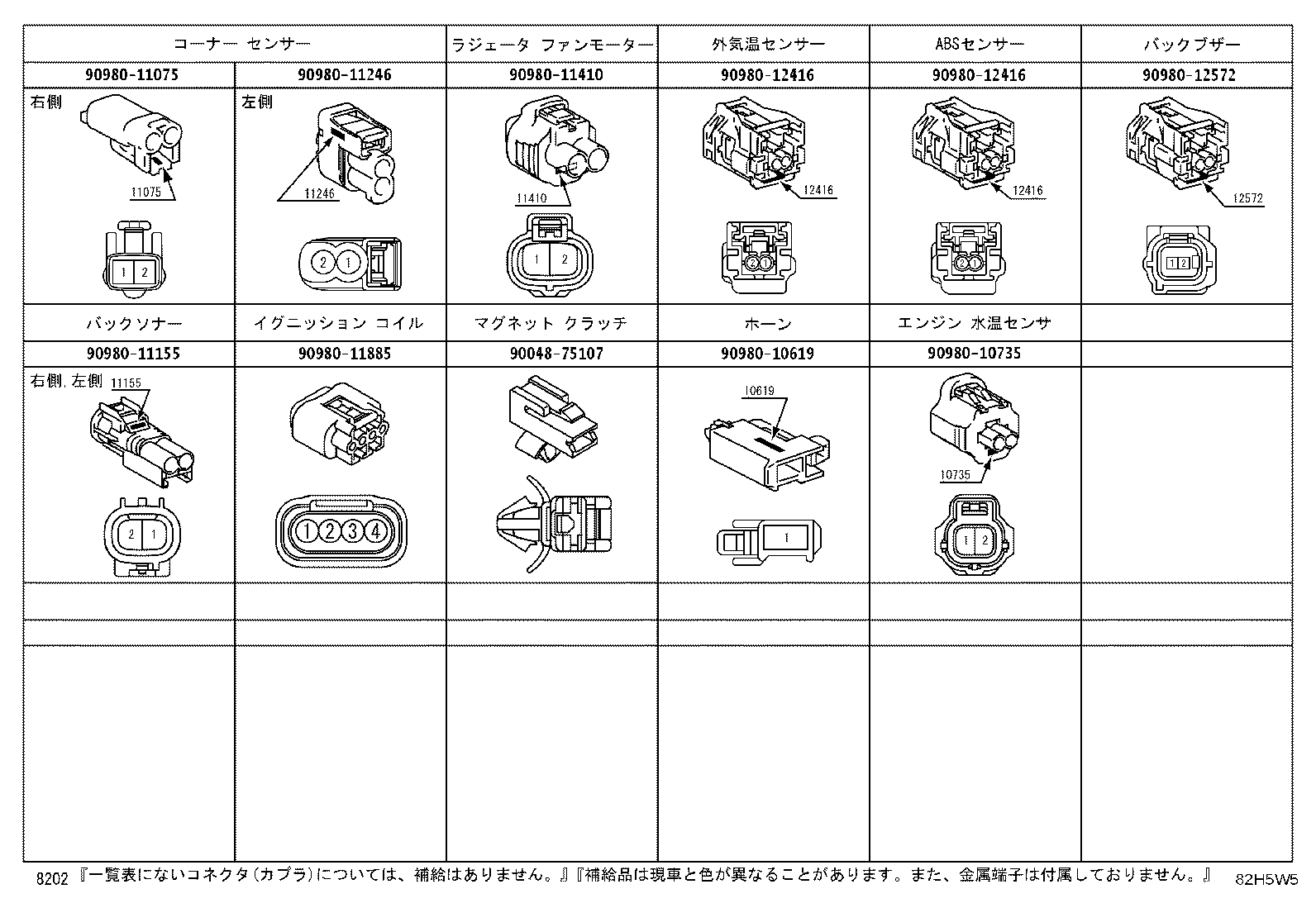

82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
