Toyota Pixis Epoch
2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan
Supported model
Data version 2018-05

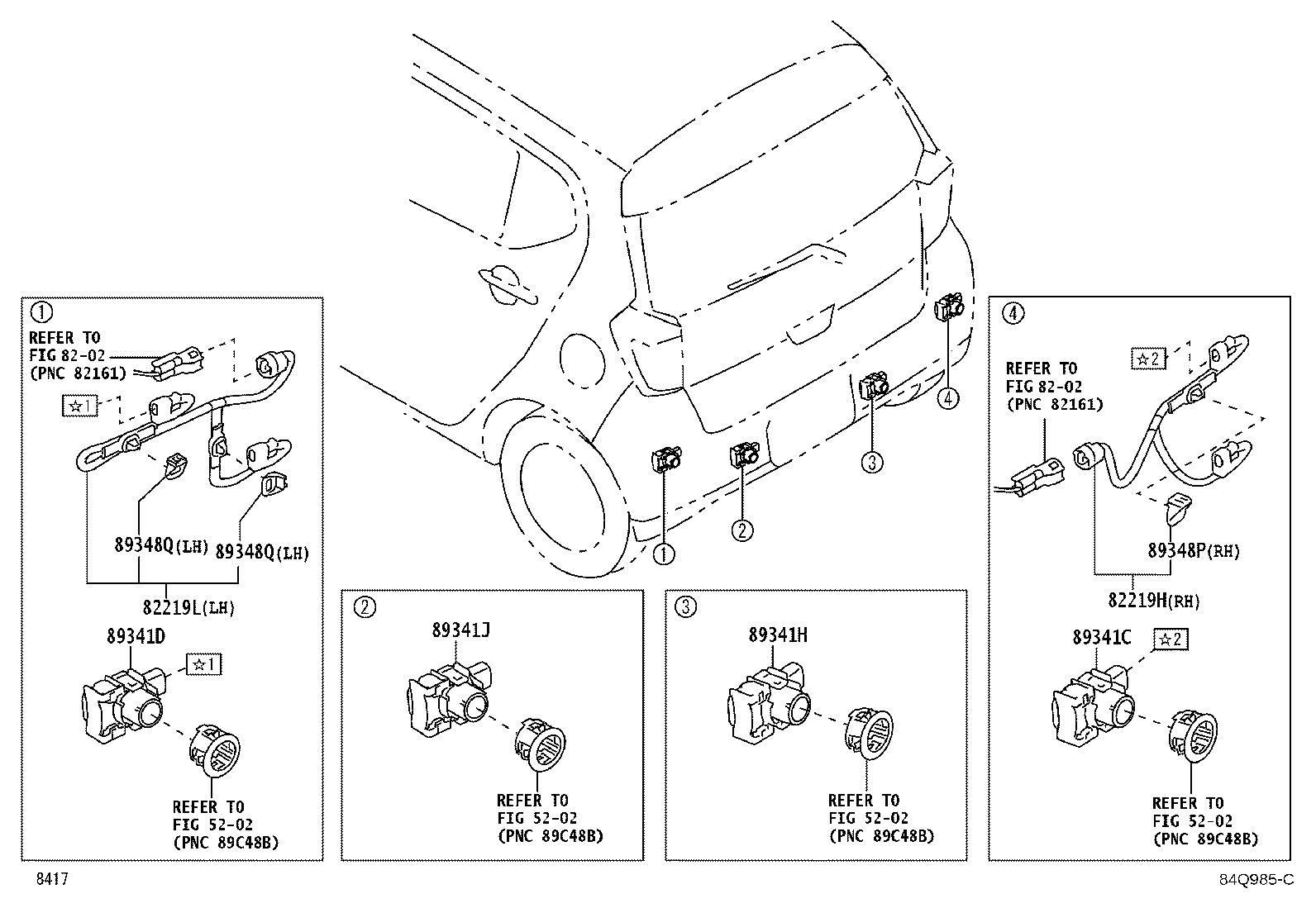

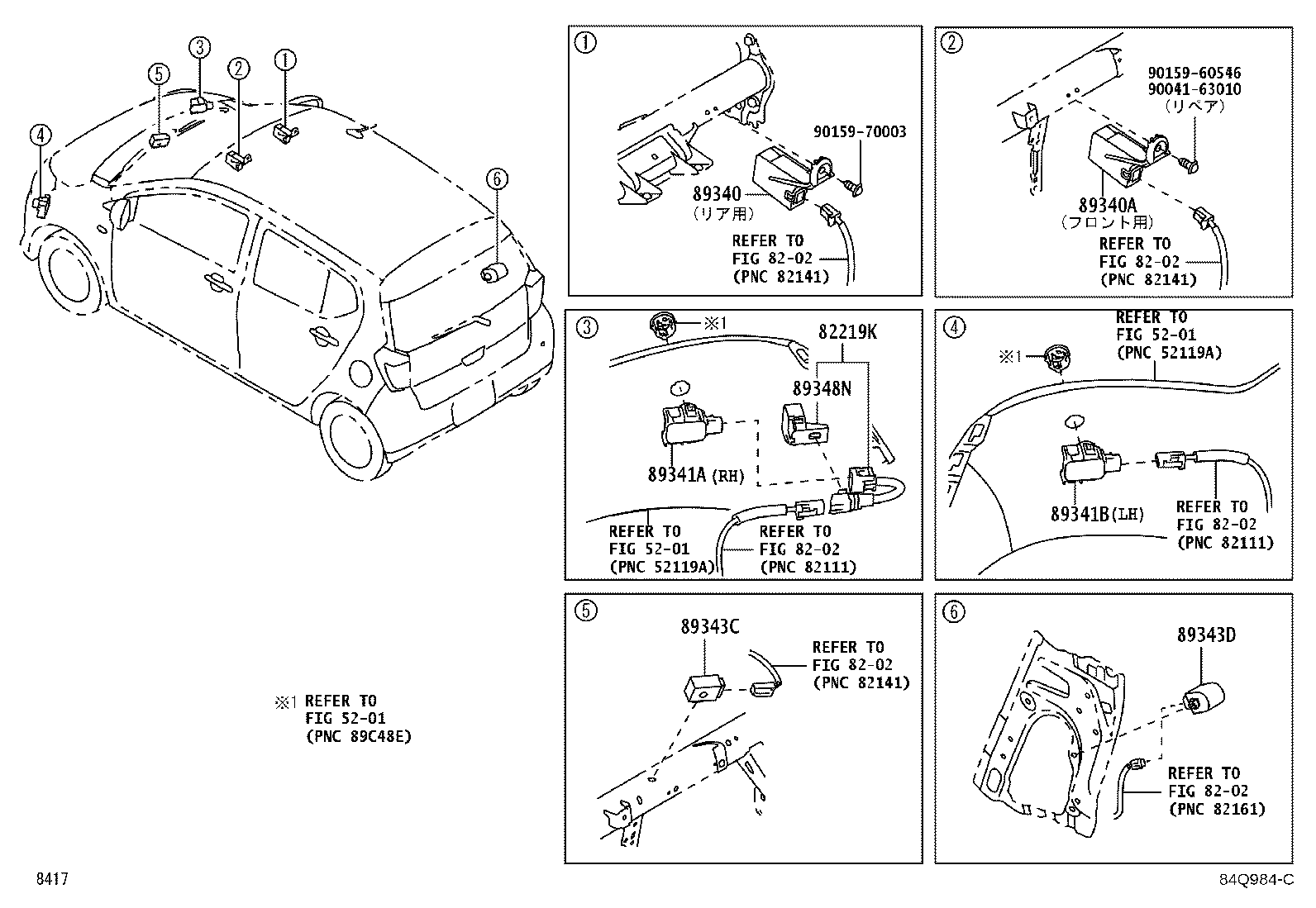

Clearance & Back Sonar
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82219H | Wire, Sensor |
| 82219K | Wire, Sensor |
| 82219L | Wire, Sensor |
| 89340 | Computer Assy, Rear Clearance Warning |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341B | Sensor, Ultrasonic, NO.2 |
| 89341C | Sensor, Ultrasonic, NO.3 |
| 89341D | Sensor, Ultrasonic, NO.4 |
| 89341H | Sensor, Ultrasonic, NO.5 |
| 89341J | Sensor, Ultrasonic, NO.6 |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89343D | Buzzer, Clearance Warning, NO.2 |
| 89348N | Clip, Ultrasonic Sensor, NO.1 |
| 89348P | Clip, Ultrasonic Sensor, NO.2 |
| 89348Q | Clip, Ultrasonic Sensor, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
