Toyota Pixis Epoch
2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan
Supported model
Data version 2018-05

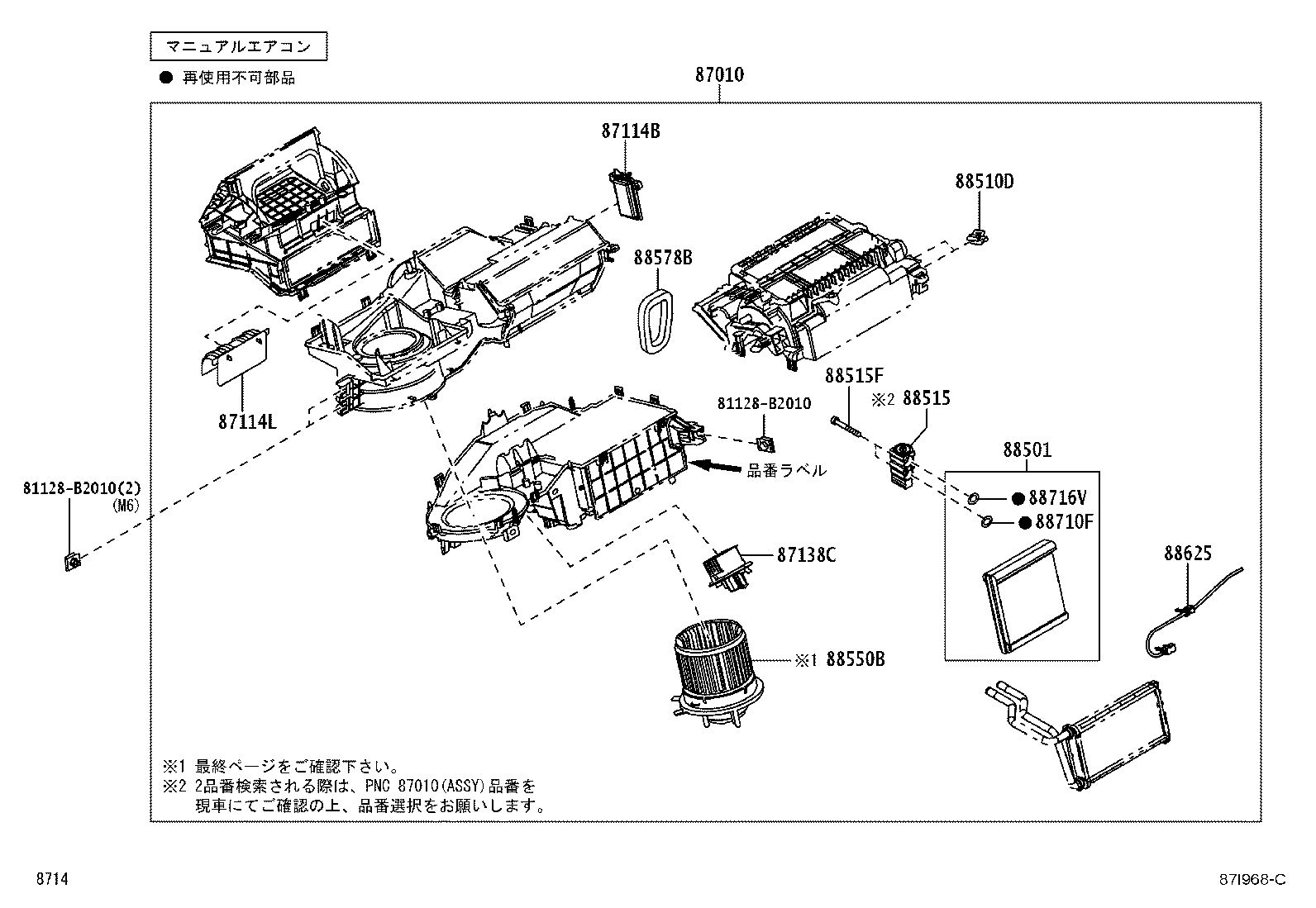

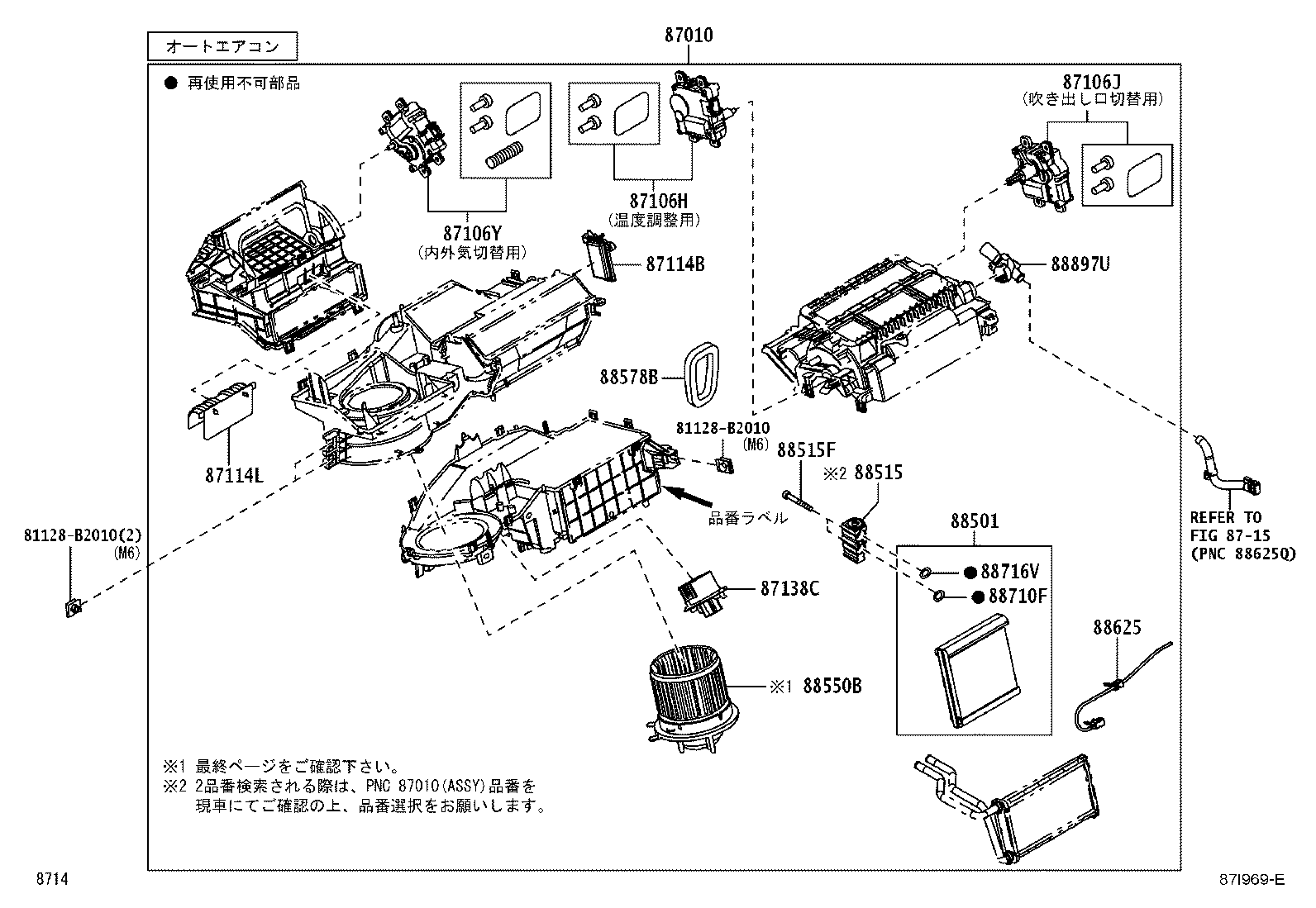

Heating & Air Conditioning - Cooler Unit
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106Y | Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH) |
| 87114B | Cover, Heater |
| 87114L | Cover, Heater, NO.2 |
| 87138C | Resistor, Blower |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510D | Clamp, Cooler Unit |
| 88512 | Duct, Air |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539J | Hose, Drain Cooler |

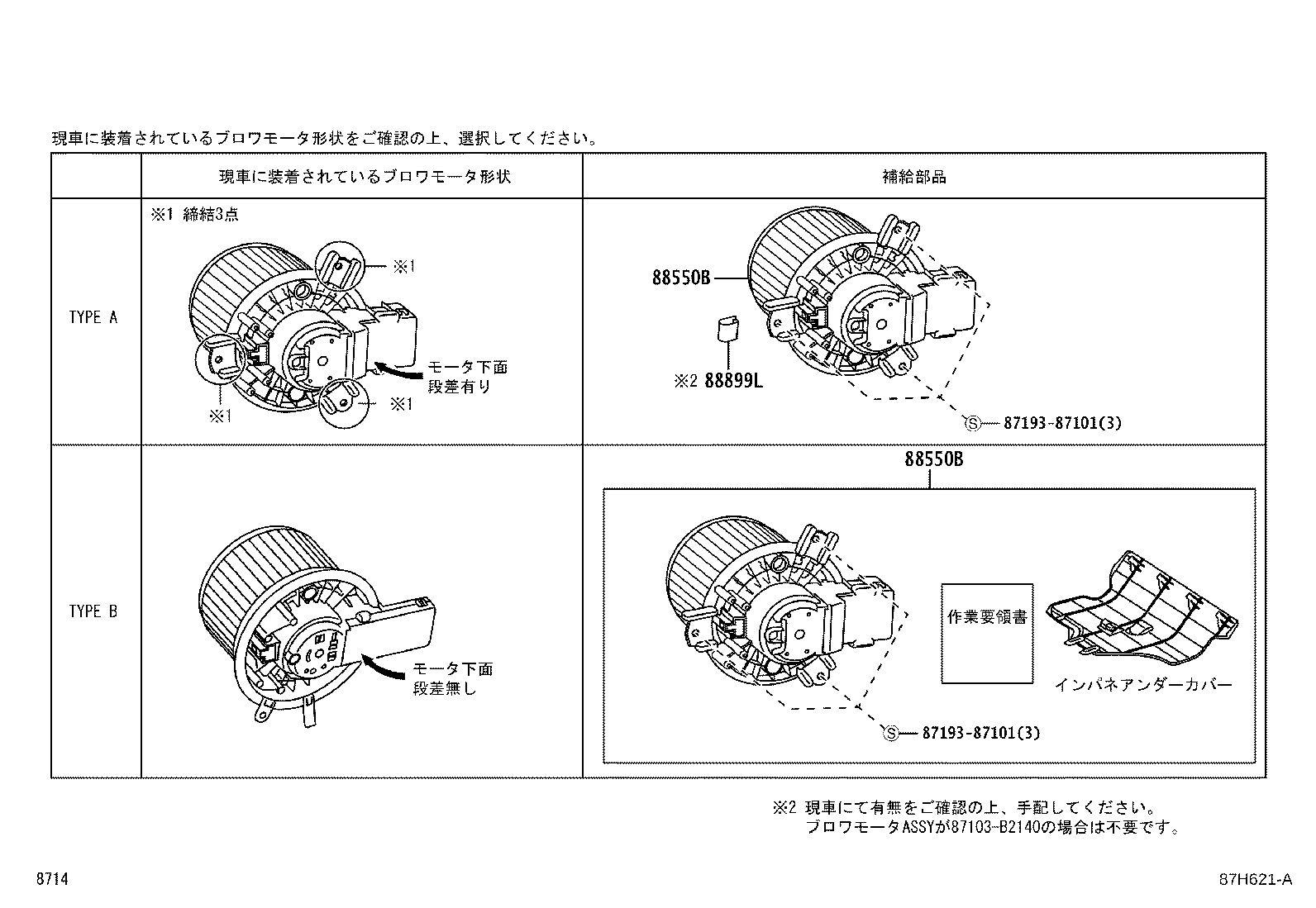

| 88550B | Motor Assy, Blower |
| 88568B | Filter, Air |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648P | Wire,Air Conditioner,NO.1 |
| 88710F | Ring, O |
| 88716V | Ring, O(FOR COOLER UNIT) |
| 88892N | Cover, Cooler, NO.2 |
| 88897U | Pipe, Aspirator |
| 88899L | Parts, Cooling Unit |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
