Toyota Pixis Epoch

2017-05 → present · chassis LA350A,LA360A · catalogue 594120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 3 illustrations

Illustrations

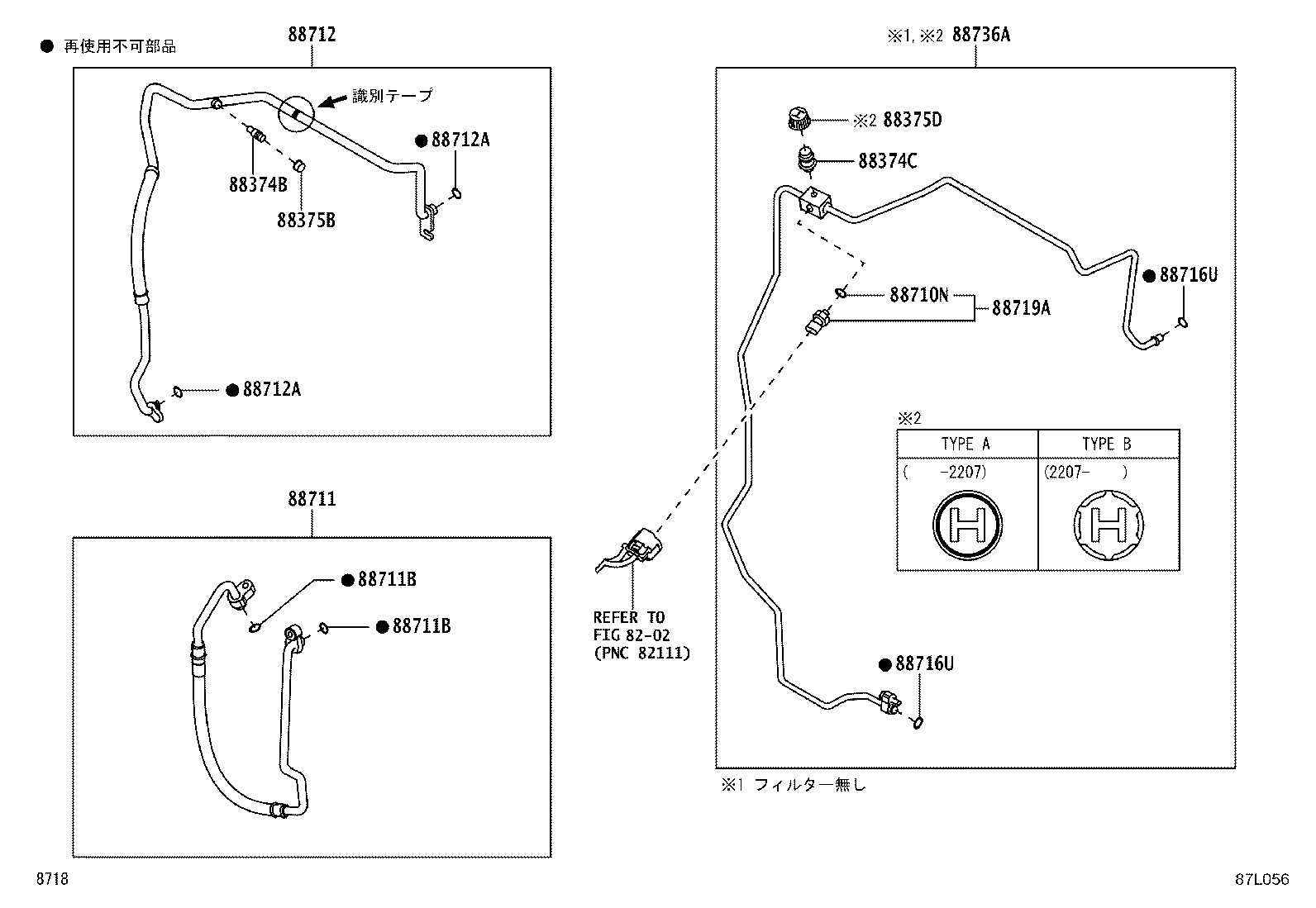

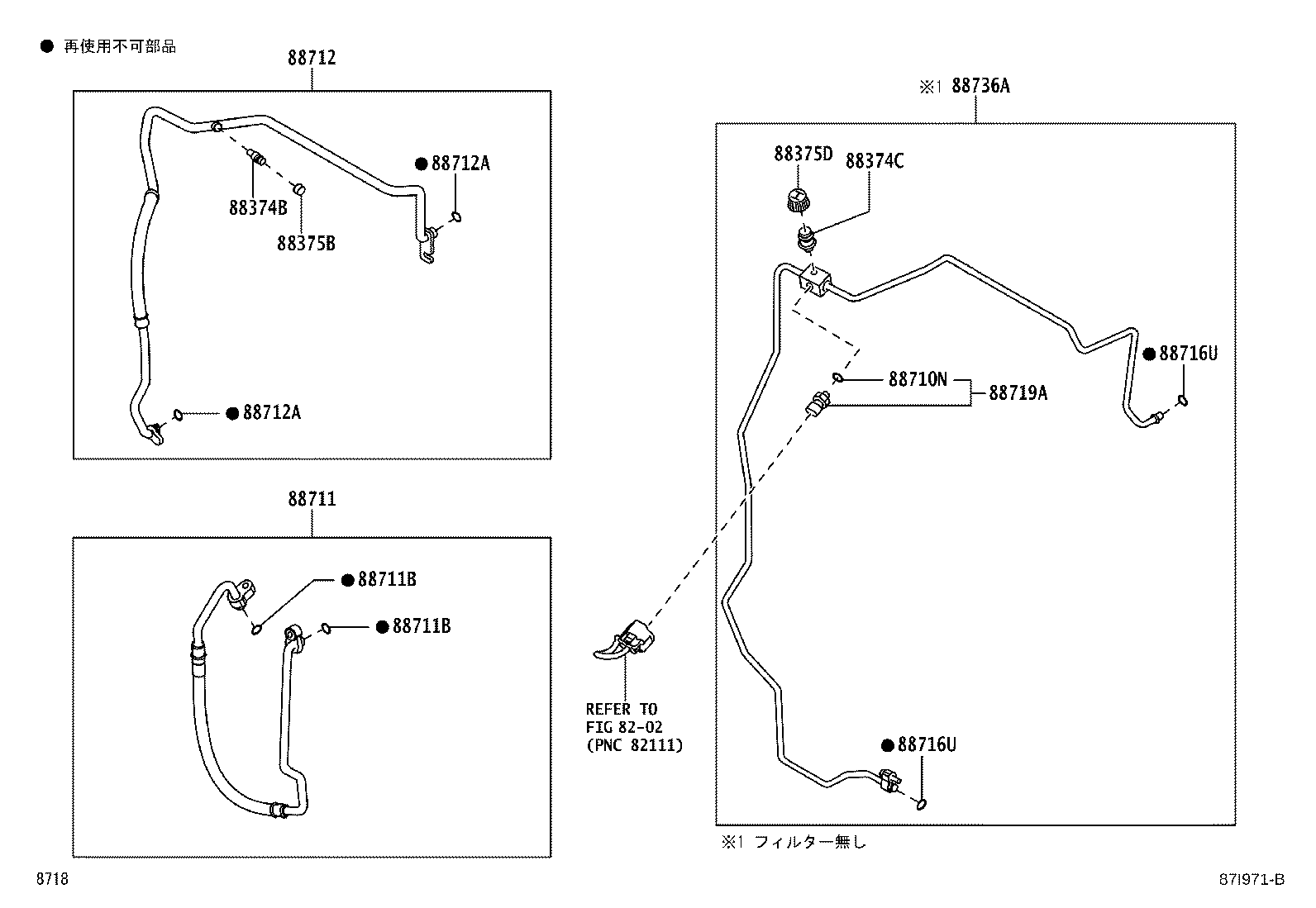

Figure 87M4RV 87M4RV 2017-05 → — Figure 87I971B 87I971B 2017-05 → 2022-07 Figure 87L056 87L056 2022-07 → —

Part groups

PNCDescription
16561D Seal, Radiator TO Support, NO.1
16562L Seal, Radiator TO Support, NO.2
88362A Plate,Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88474 Dryer, Cooler
88710N Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88736A Tube, Liquid, A(FOR COOL BOX)
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
