Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

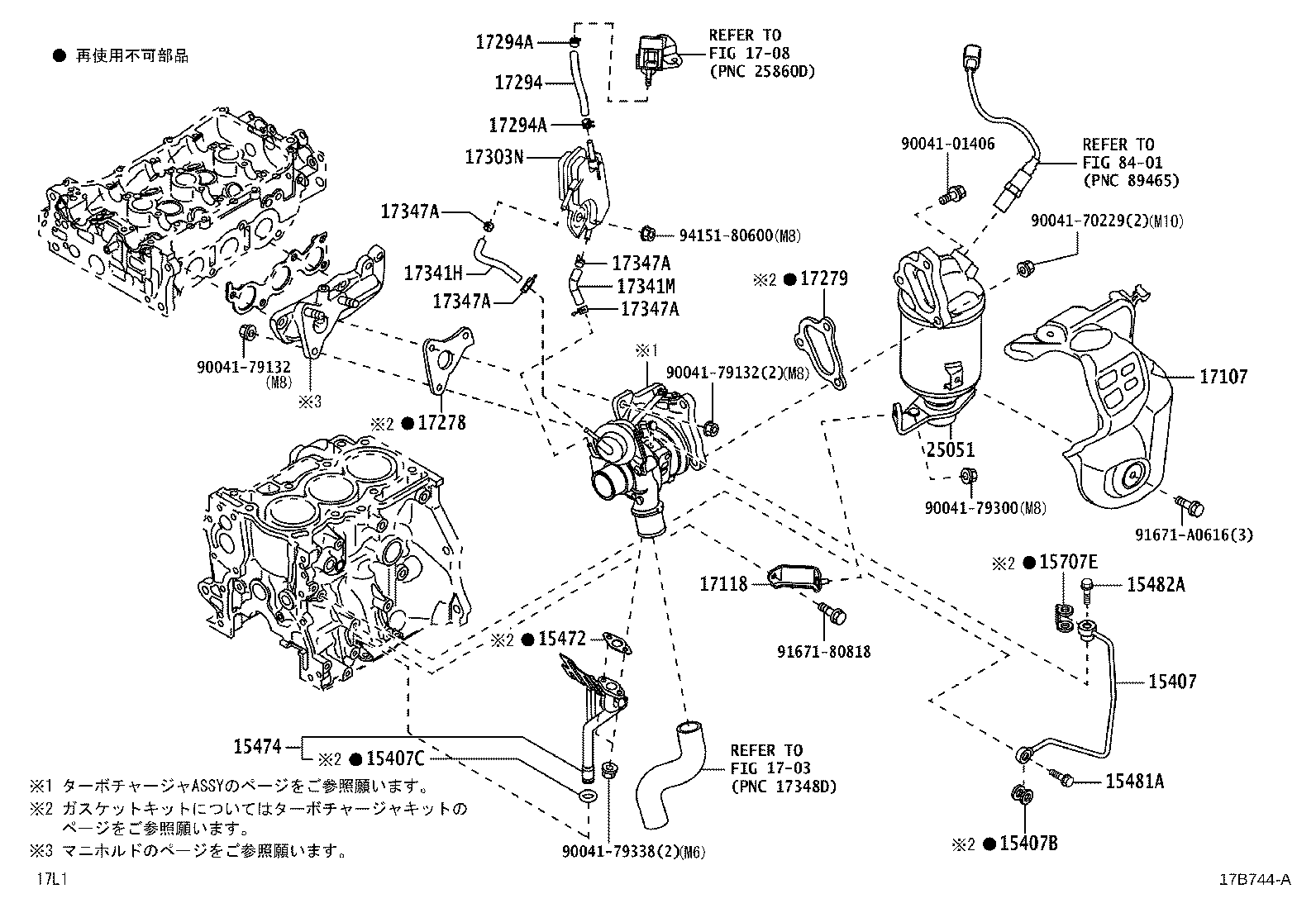

Manifold
36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

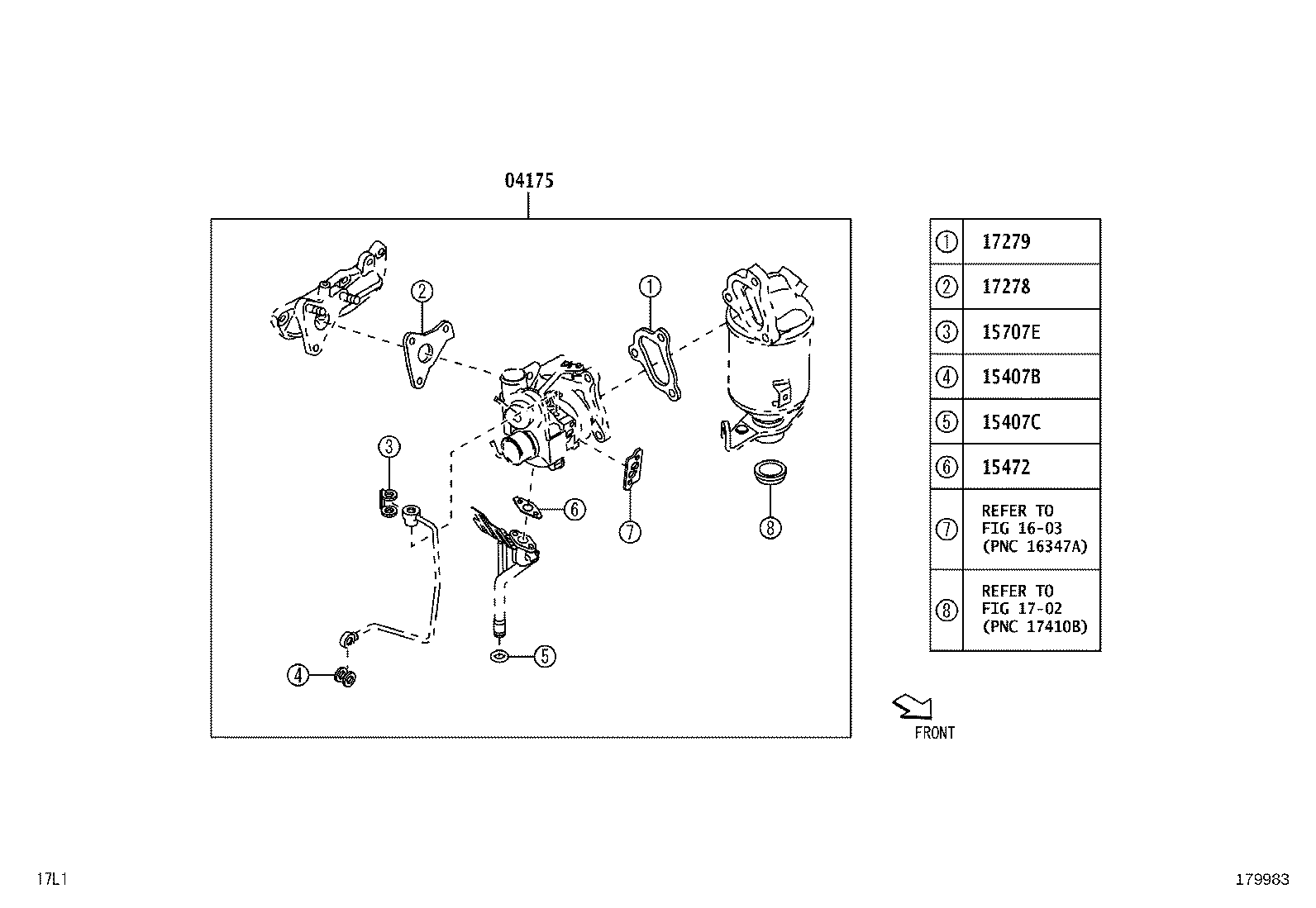

| 04175 | Gasket Kit, Turbocharger |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15407C | Ring, O(FOR TURBO OIL PIPE) |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15474 | Pipe, Turbo Oil Outlet |
| 15481A | Bolt, Union, NO.1 |
| 15482A | Bolt, Union, NO.2 |
| 15707E | Gasket(FOR OIL PIPE) |
| 17021B | Bolt, Stud |
| 17107 | Insulator Sub-assy, Exhaust Manifold Heat |
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17118 | Stay, Manifold |
| 1711A | Grommet |
| 17138B | Stay, Intake Manifold |
| 17141 | Manifold, Exhaust |
| 17141G | Bolt, Stud(FOR TURBOCHARGER) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17201 | Turbocharger Sub-assy |
| 17230 | Actuator Assy, W/Bracket |
| 17269A | Ring, Retainer(FOR TURBOCHARGER) |
| 17278 | Gasket, Turbo TO Exhaust Manifold |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17293A | Bolt, Stud(FOR TURBOCHARGER STAY) |
| 17294 | Hose, Actuator |
| 17294A | Clip(FOR ACTUATOR HOSE) |
| 17303N | Pipe Sub-assy, Air |
| 17341H | Hose, Air |
| 17341M | Hose, Air, NO.1 |
| 17347A | Clip(FOR AIR HOSE NO.7) |
| 22271A | Gasket, Throttle Body |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 89421H | Sensor, Vacuum |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
