Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

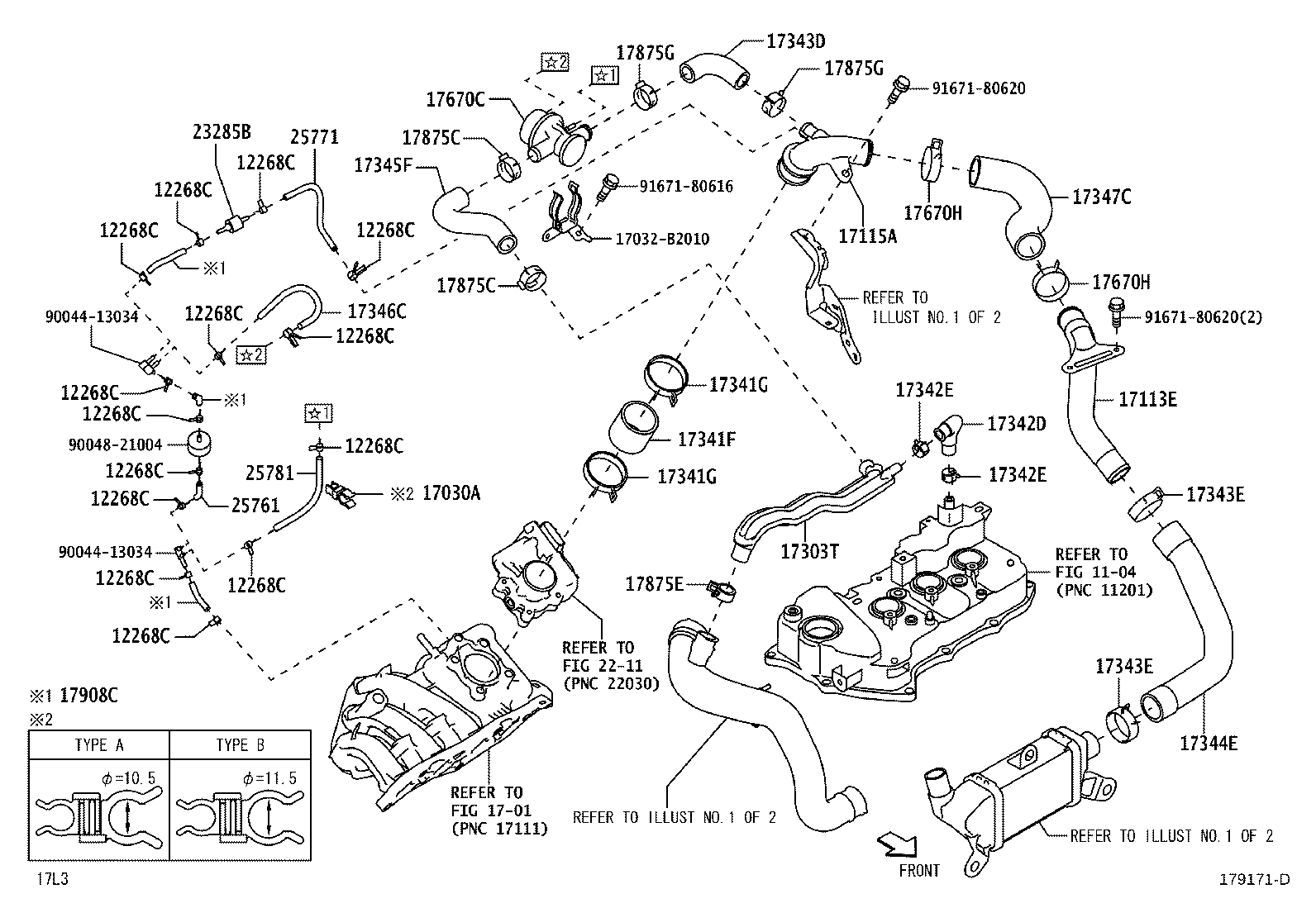

Air Cleaner
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12268C | Clip, Hose |
| 16523E | Cushion, Intercooler Support |
| 17030A | Clamp, Hose |
| 17113E | Pipe, Intake, NO.1 |
| 17115A | Pipe, Intake, NO.2 |
| 17303T | Pipe Sub-assy, Air |
| 17341F | Hose, Air, NO.1 |
| 17341G | Clamp OR Clip(FOR AIR HOSE, NO.1) |
| 17342D | Hose, Air, NO.2 |
| 17342E | Clamp OR Clip(FOR AIR HOSE, NO.2) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17344E | Hose, Air, NO.4 |
| 17344K | Clip(FOR AIR HOSE, NO.4) |
| 17345F | Hose, Air, NO.5 |
| 17346C | Hose, NO.6 |
| 17347C | Hose, Air, NO.7 |
| 17348D | Hose, Air, NO.8 |
| 17670C | Valve Assy, Air By-pass |
| 17670G | Clip(FOR AIR HOSE NO.1) |
| 17670H | Clip(FOR AIR HOSE NO.2) |
| 17670J | Clip(FOR AIR HOSE NO.3) |
| 17670N | Clip(FOR AIR HOSE NO.4) |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17875C | Clip(FOR HOSE, NO.1) |
| 17875E | Clip(FOR HOSE, NO.2) |
| 17875G | Clip(FOR HOSE, NO.3) |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17908C | Hose, Vaccum |
| 17940D | Intercooler Assy |
| 17940E | Bracket, Intercooler Support |
| 23285B | Valve, Check, NO.1 |
| 25761 | Hose, Vaccum Transmitting, NO.1 |
| 25771 | Hose, Vaccum Transmitting, NO.2 |
| 25781 | Hose, Vacuum Transmitting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
