Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

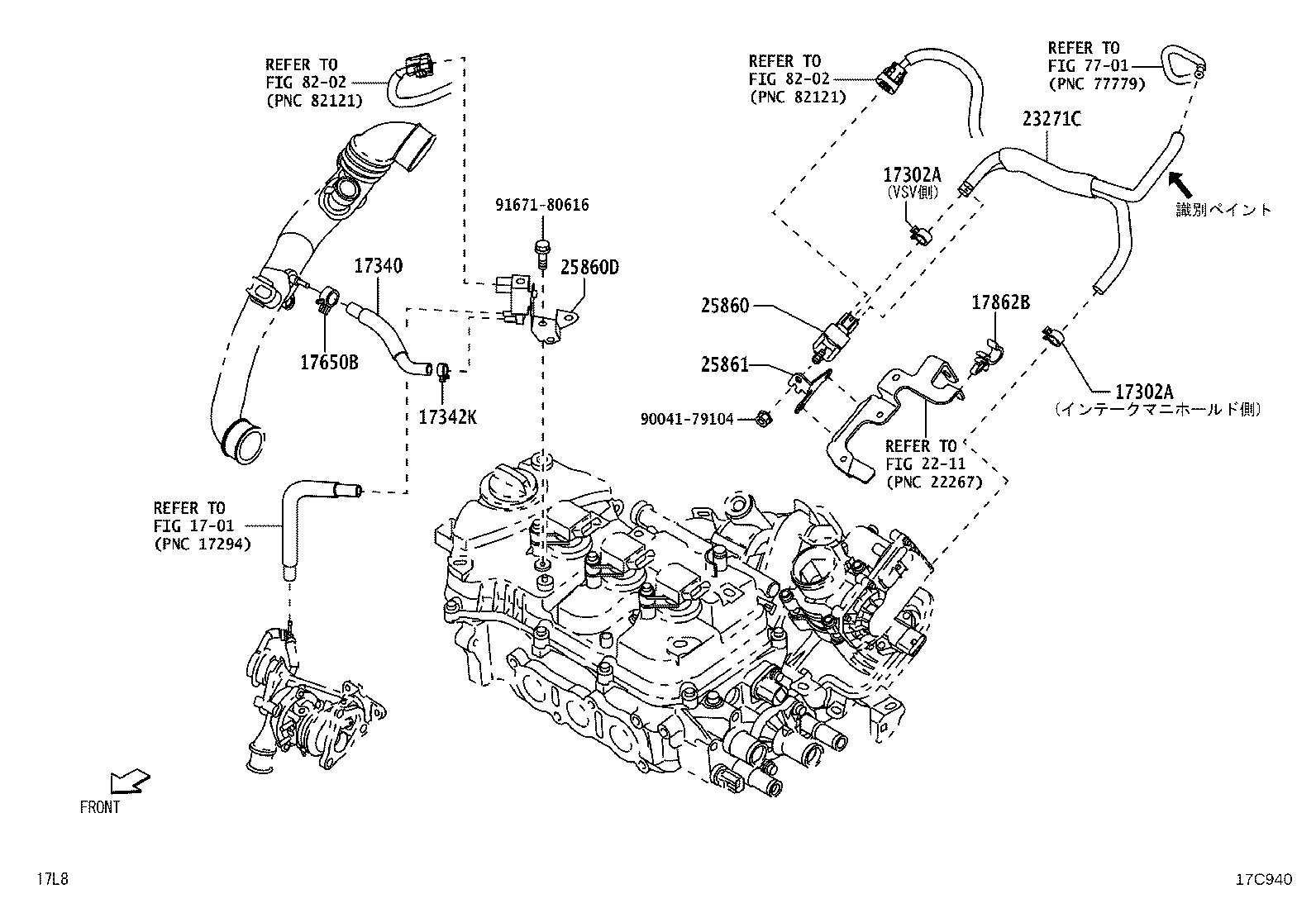

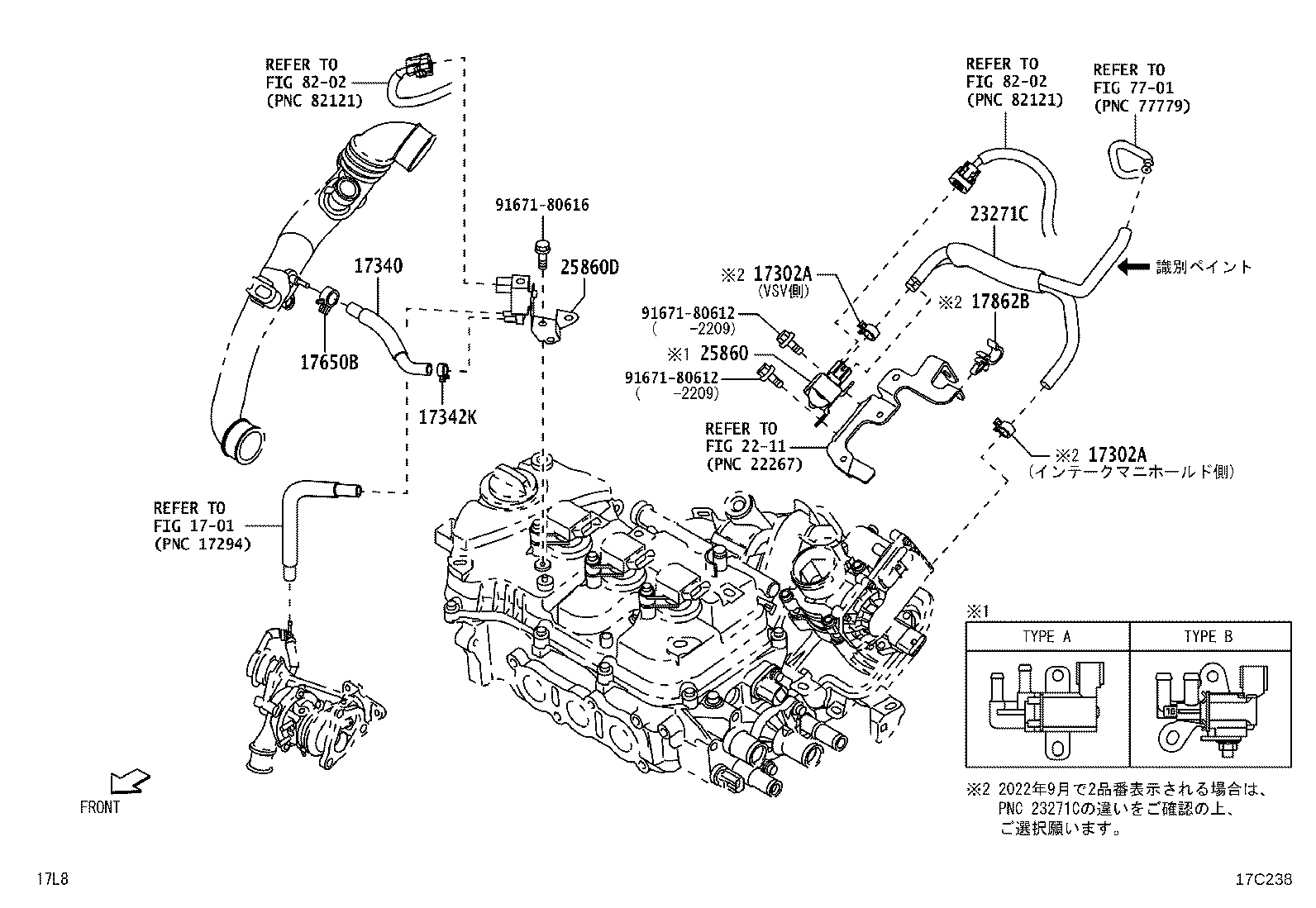

Vacuum Piping
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302A | Clip, Hose |
| 17340 | Hose Assy, Vacuum Switching Valve |
| 17342K | Clip(FOR VACUUM HOSE) |
| 17650B | Clip(FOR VACUUM SWITCHING VALVE HOSE) |
| 17862B | Clamp, Hose |
| 23271C | Hose, Fuel |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
