Toyota Copen

2019-10 → present · chassis LA400A · catalogue 595110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

6 part groups · 2 illustrations

Illustrations

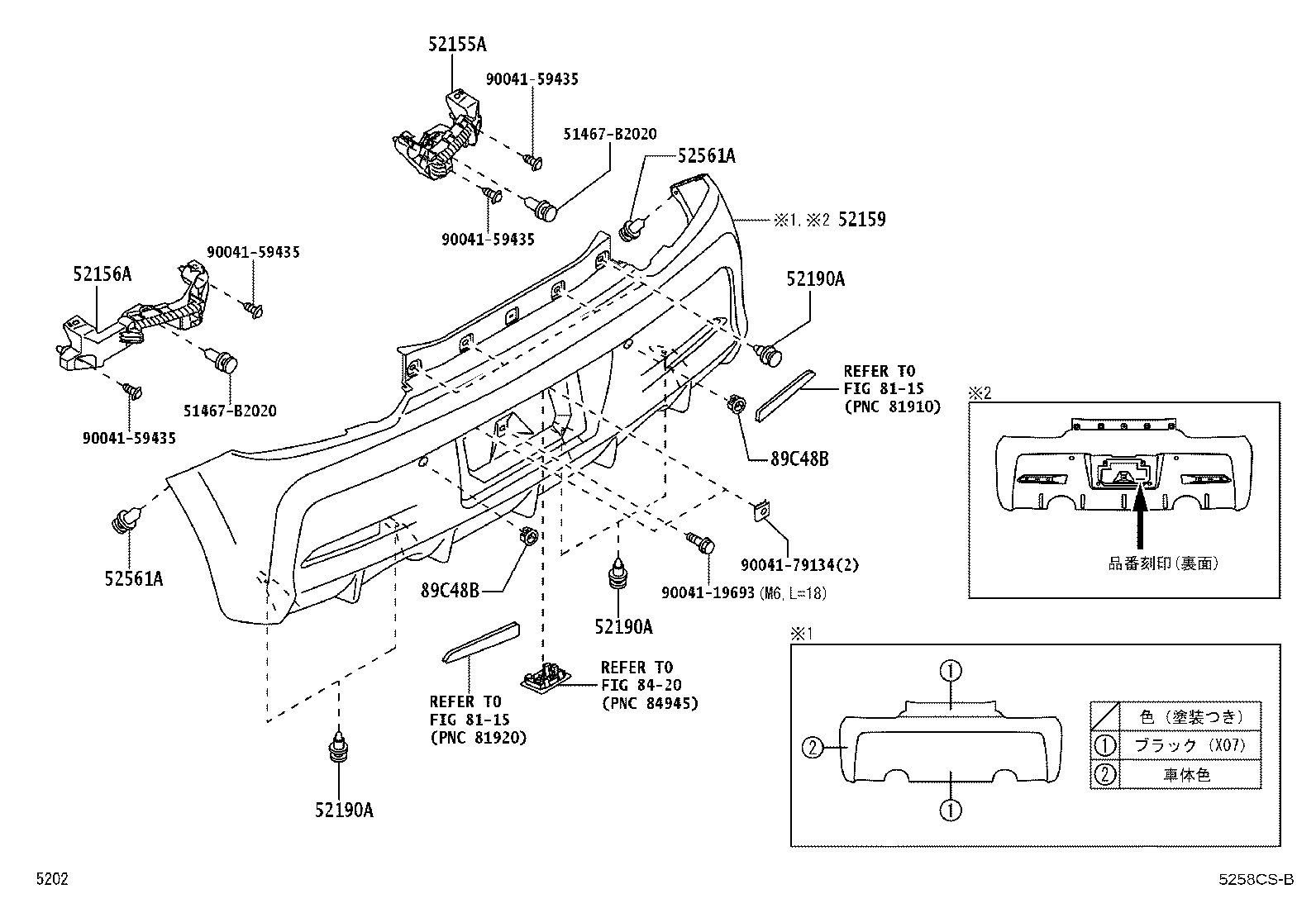

Figure 524126A 524126A 2019-10 → 2024-12 Figure 5258CSB 5258CSB 2024-12 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52190A Clip
52561A Clip(FOR REAR BUMPER RETAINER)
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
