Toyota Copen

2019-10 → present · chassis LA400A · catalogue 595110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

28 part groups · 3 illustrations

Illustrations

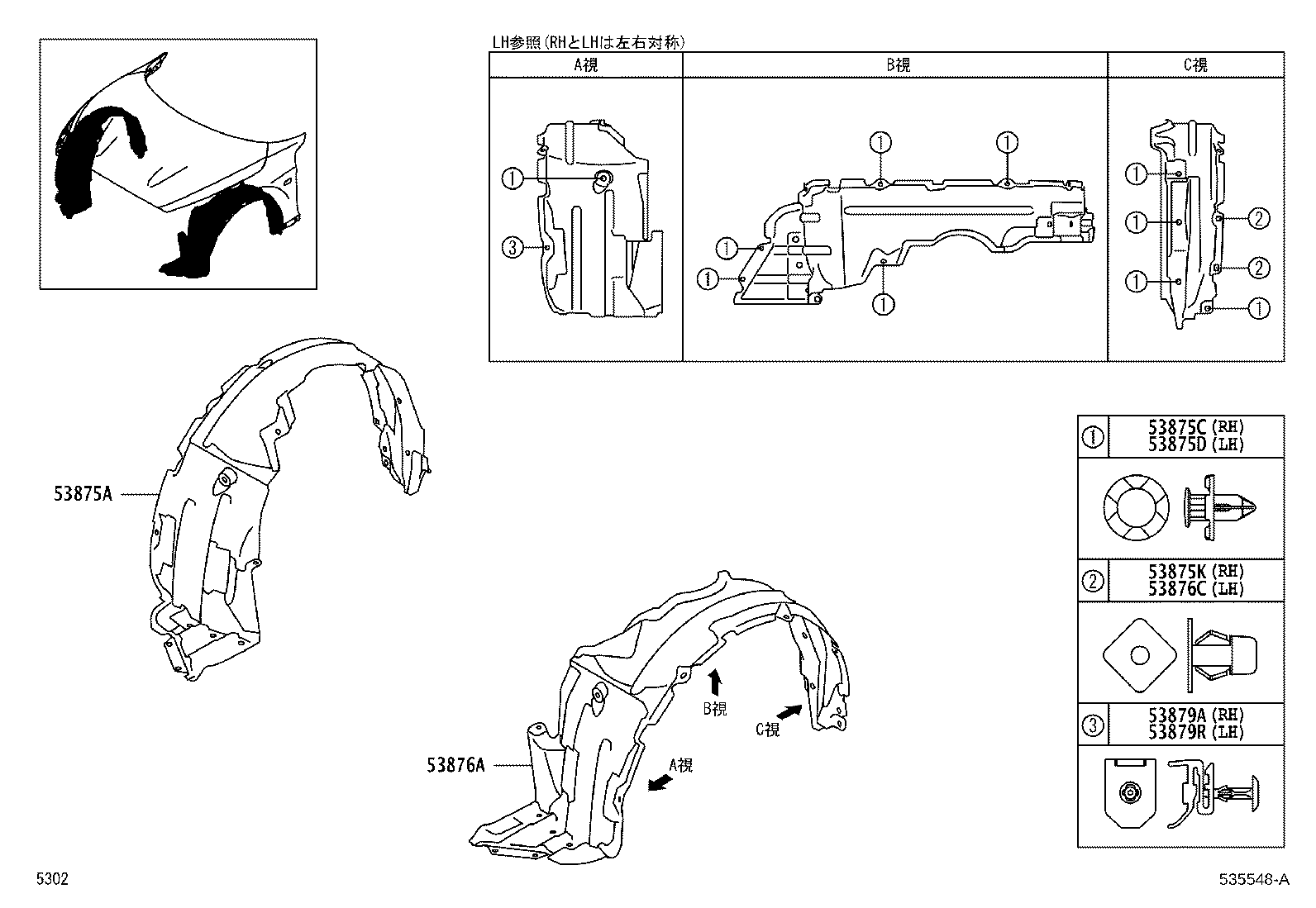

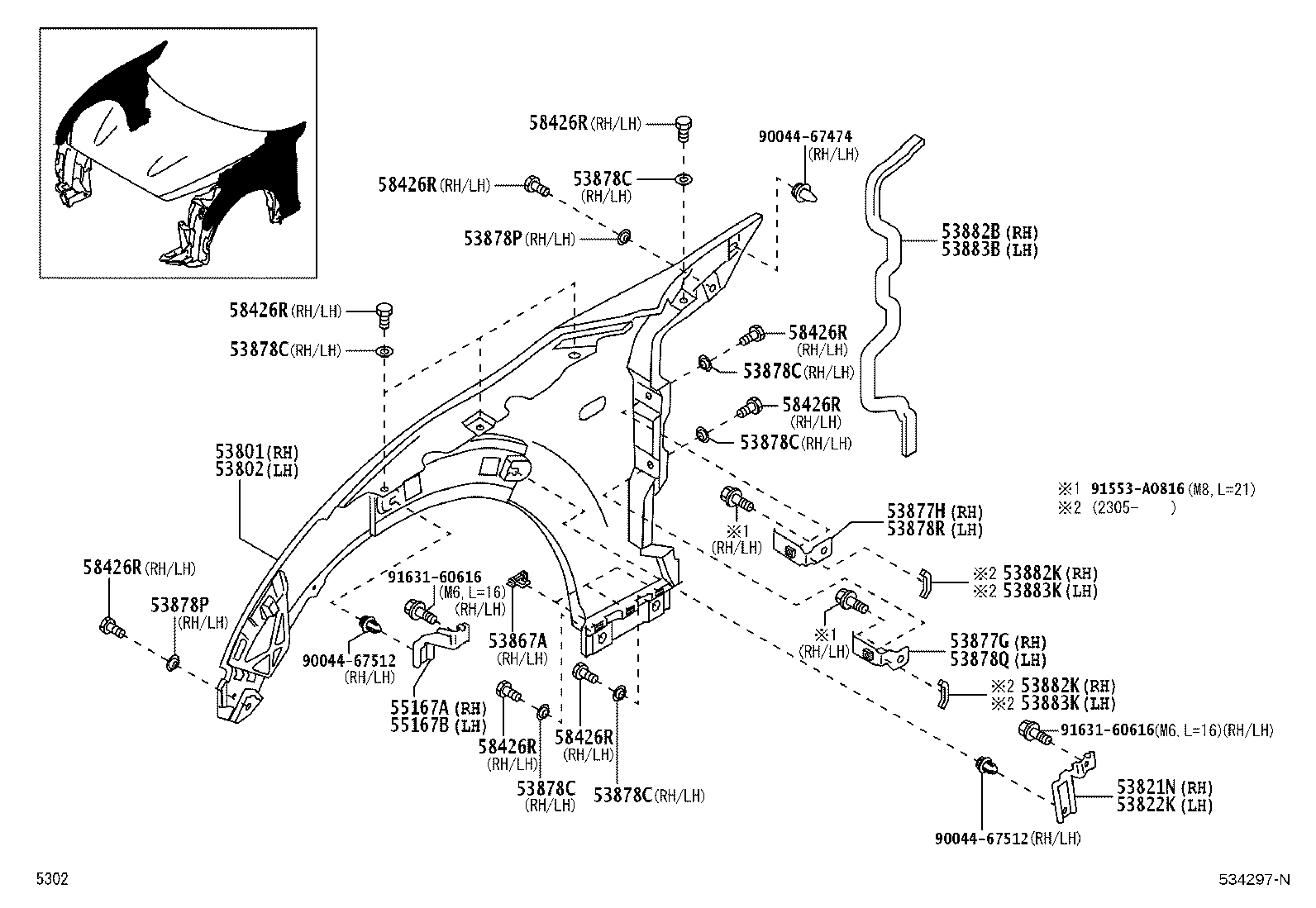

Figure 534479B 534479B 2019-10 → — Figure 535548A 535548A 2019-10 → — Figure 534297N 534297N 2019-10 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53821N Bracket, Front Fender, Rear Upper RH
53822K Bracket, Front Fender, Rear Upper LH
53867A Retainer, Front Fender
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
53877G Bracket, Front Fender Rear Side Panel, Lower RH
53877H Bracket, Front Fender Rear Side Panel, Lower RH
53878C Spacer, Front Fender
53878P Spacer, Front Fender
53878Q Bracket, Front Fender Rear Side Panel, Lower LH
53878R Bracket, Front Fender Rear Side Panel, Lower LH
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882B Seal, Front Fender, RH
53882K Seal, Front Fender
53883B Seal, Front Fender, LH
53883K Seal, Front Fender, LH
55167A Bracket, Front Fender Apron Mounting, RH
55167B Bracket, Front Fender Apron Mounting, LH
58426R Bolt(FOR FRONT FENDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
