Toyota Copen

2019-10 → present · chassis LA400A · catalogue 595110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

23 part groups · 2 illustrations

Illustrations

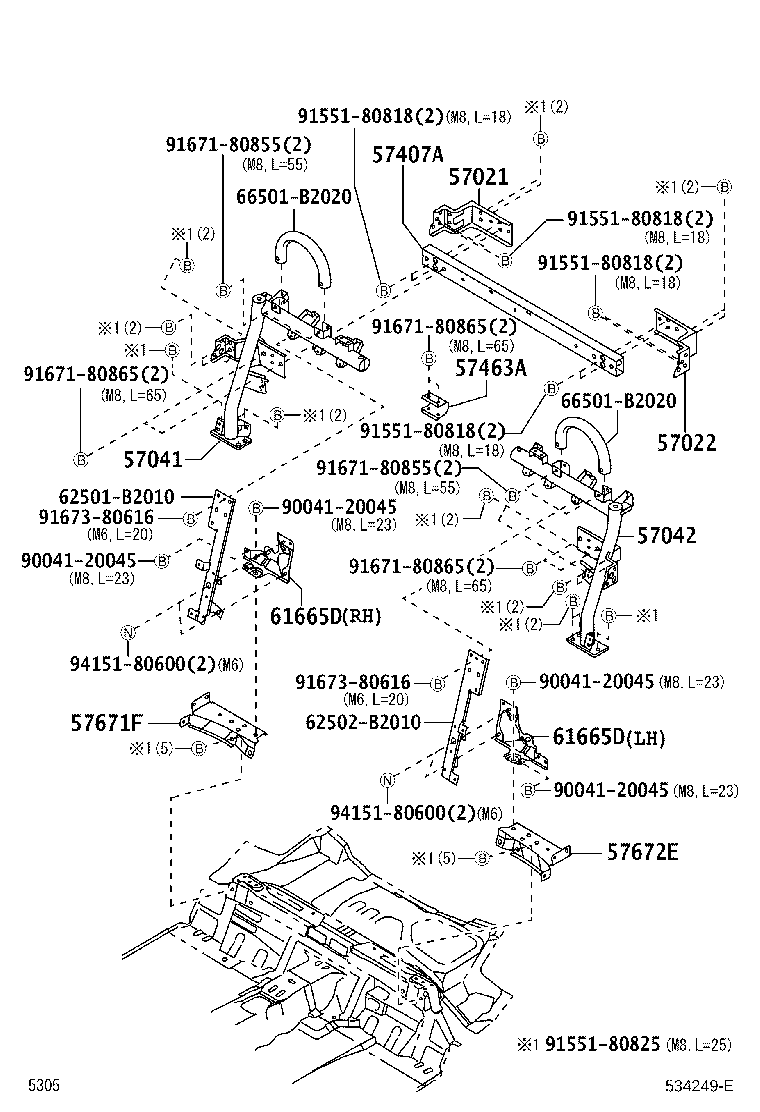

Figure 534248A 534248A 2019-10 → — Figure 534249E 534249E 2019-10 → —

Part groups

PNCDescription
57021 Bracket Sub-assy, Body Mounting, NO.1 RH
57022 Bracket Sub-assy, Body Mounting, NO.1 LH
57041 Member Sub-assy, Center Floor Side, RH
57042 Member Sub-assy, Center Floor Side, LH
57069A Member, Rear Floor, Center
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57117 Plate Sub-assy, Front Side Member, Front RH
57118 Plate Sub-assy, Front Side Member, Front LH
57406 Member Sub-assy, Main Floor Side, RH
57407A Member Sub-assy, Center Floor Cross
57409 Member Sub-assy, Main Floor Side, LH
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57463A Reinforcement, Center Floor Crossmember
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57671F Brace, Rear Floor NO.1 Crossmember, RH
57672E Brace, Rear Floor NO.1 Crossmember, LH
57681 Bracket, Rear Shock Absorber, RH
57682 Bracket, Rear Shock Absorber, LH
61665D Plate, Safety Belt Anchorage
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
