Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

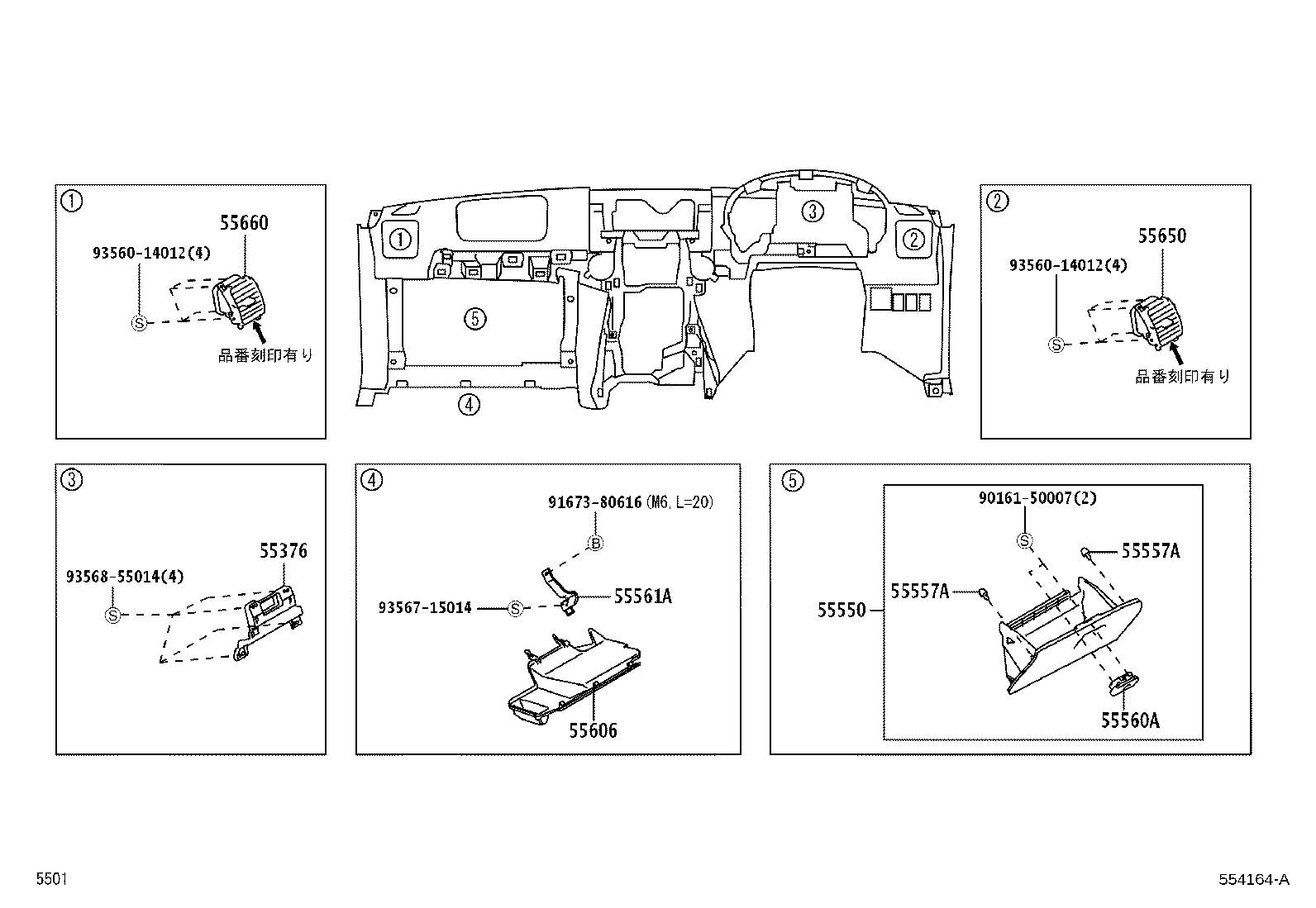

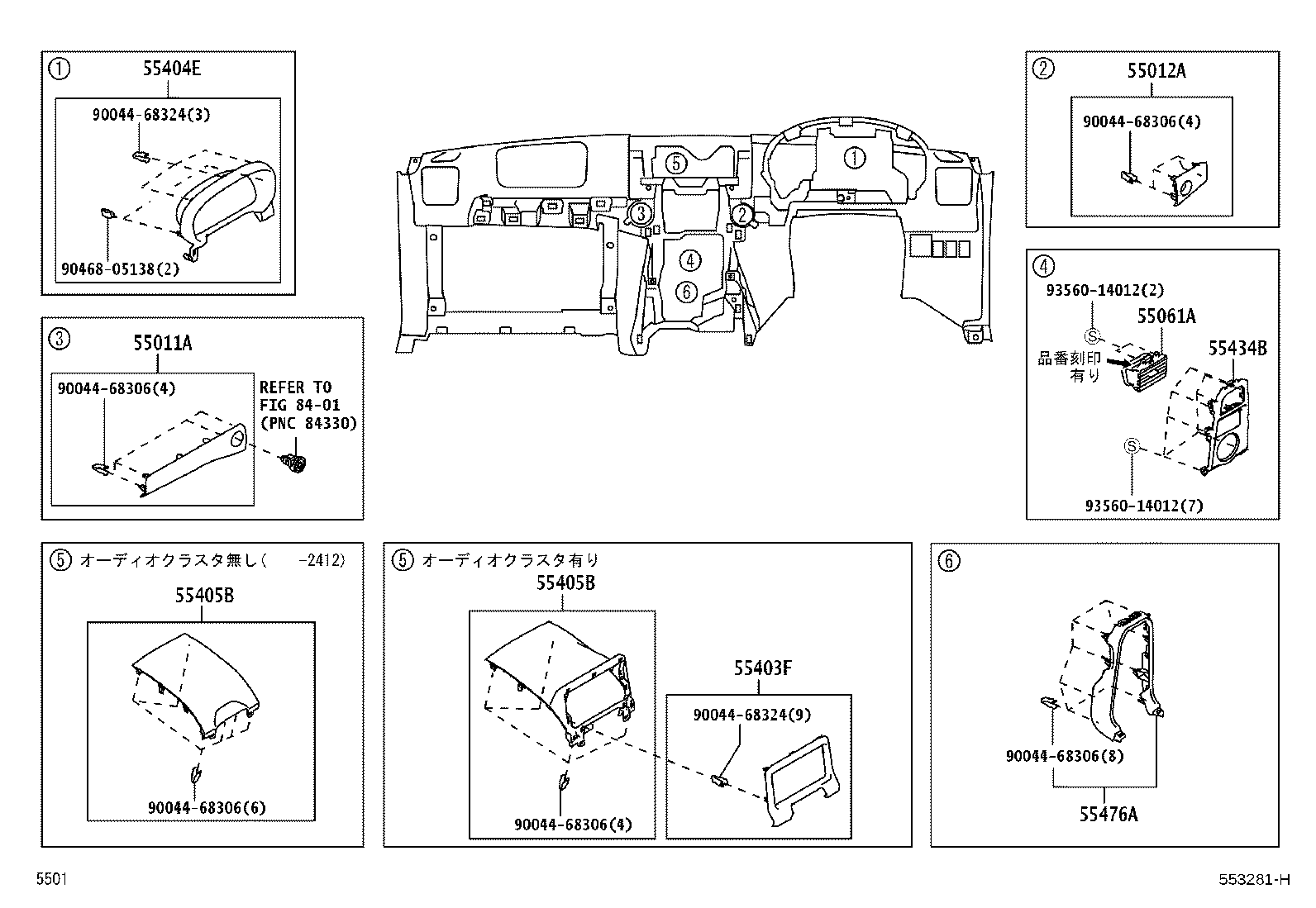

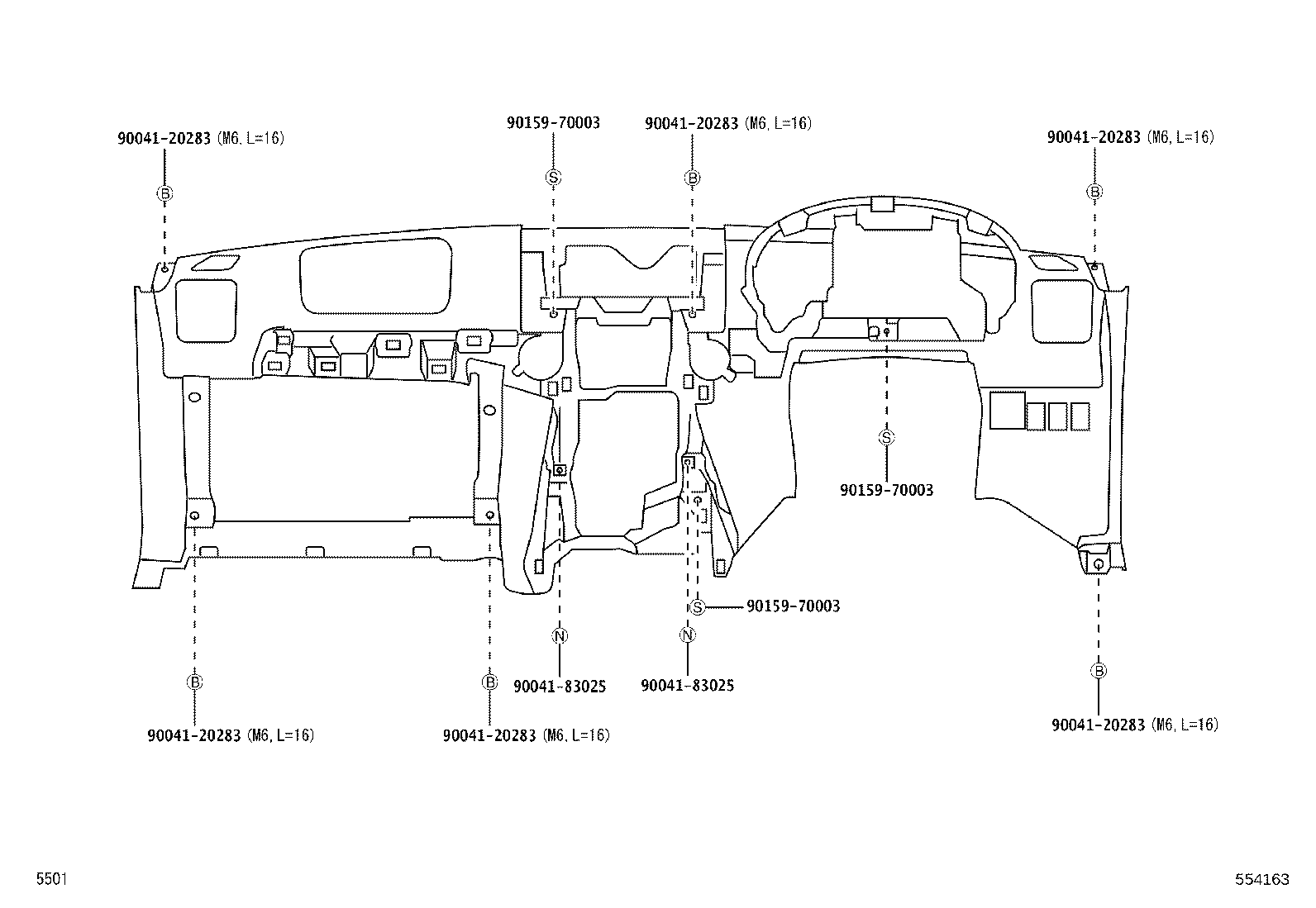

Instrument Panel & Glove Compartment
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55061A | Register Sub-assy, Instrument Panel |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55403F | Panel Sub-assy, Instrument Panel Finish |
| 55404E | Panel Sub-assy, Instrument Cluster Finish, Upr |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
