Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

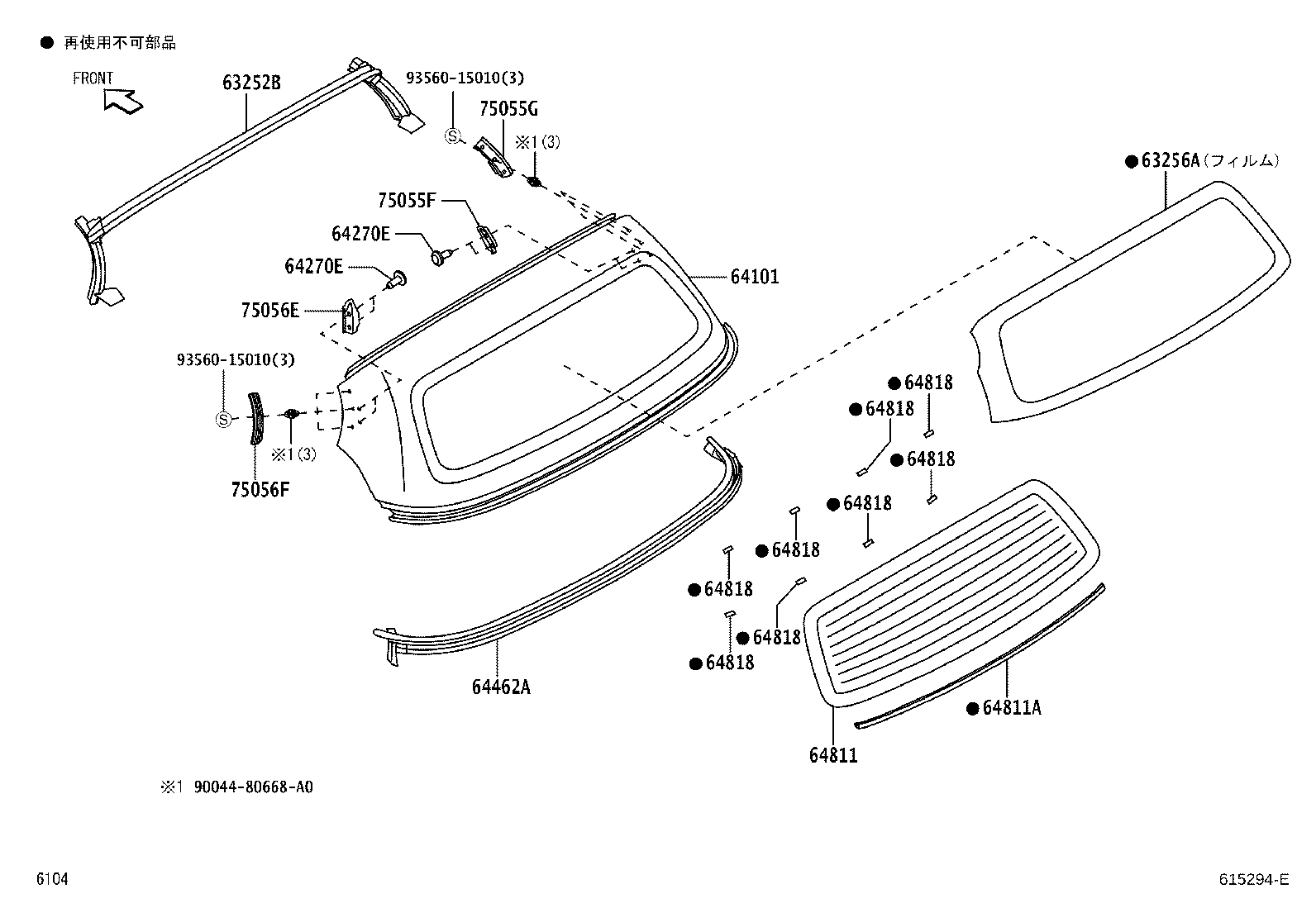

Roof Panel & Back Window Glass
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53882L | Seal, Roof Panel |
| 62381G | Weatherstrip, Roof Side Rail, RH |
| 62382F | Weatherstrip, Roof Side Rail, LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63125A | Shim, Roof Panel |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63201F | Shim(FOR REMOVABLE ROOF PANEL) |
| 63207E | Moulding Sub-assy, Removable Roof, Front RH |
| 63208E | Moulding Sub-assy, Removable Roof, Front LH |
| 63217P | Hook, Convertible Roof, RH |
| 63218Q | Hook, Convertible Roof, LH |
| 63251F | Weatherstrip, Removable Roof, Front |
| 63252B | Weatherstrip, Removable Roof, Rear |
| 63256A | Seal, Removable Roof Glass |
| 63270 | Catch Assy, Removable Roof Auxiliary, RH |
| 63273A | Bolt, Removable Roof Hinge Case |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 63297C | Bolt, Removable Roof Hinge Case |
| 64101 | Panel Sub-assy, Upper Back |
| 64270E | Clip |
| 64462A | Weatherstrip, Upper Back Panel |
| 64811 | Glass, Back Window |
| 64811A | Seal, Back Window Glass Weatherstrip |
| 64818 | Spacer, Back Window Glass |
| 75055F | Garnish Sub-assy, Roof Side, Rear RH |
| 75055G | Moulding Sub-assy, Roof Drip Side Finish, Rear RH |
| 75056E | Garnish Sub-assy, Roof Side, Rear LH |
| 75056F | Moulding Sub-assy, Roof Drip Side Finish, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
