Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

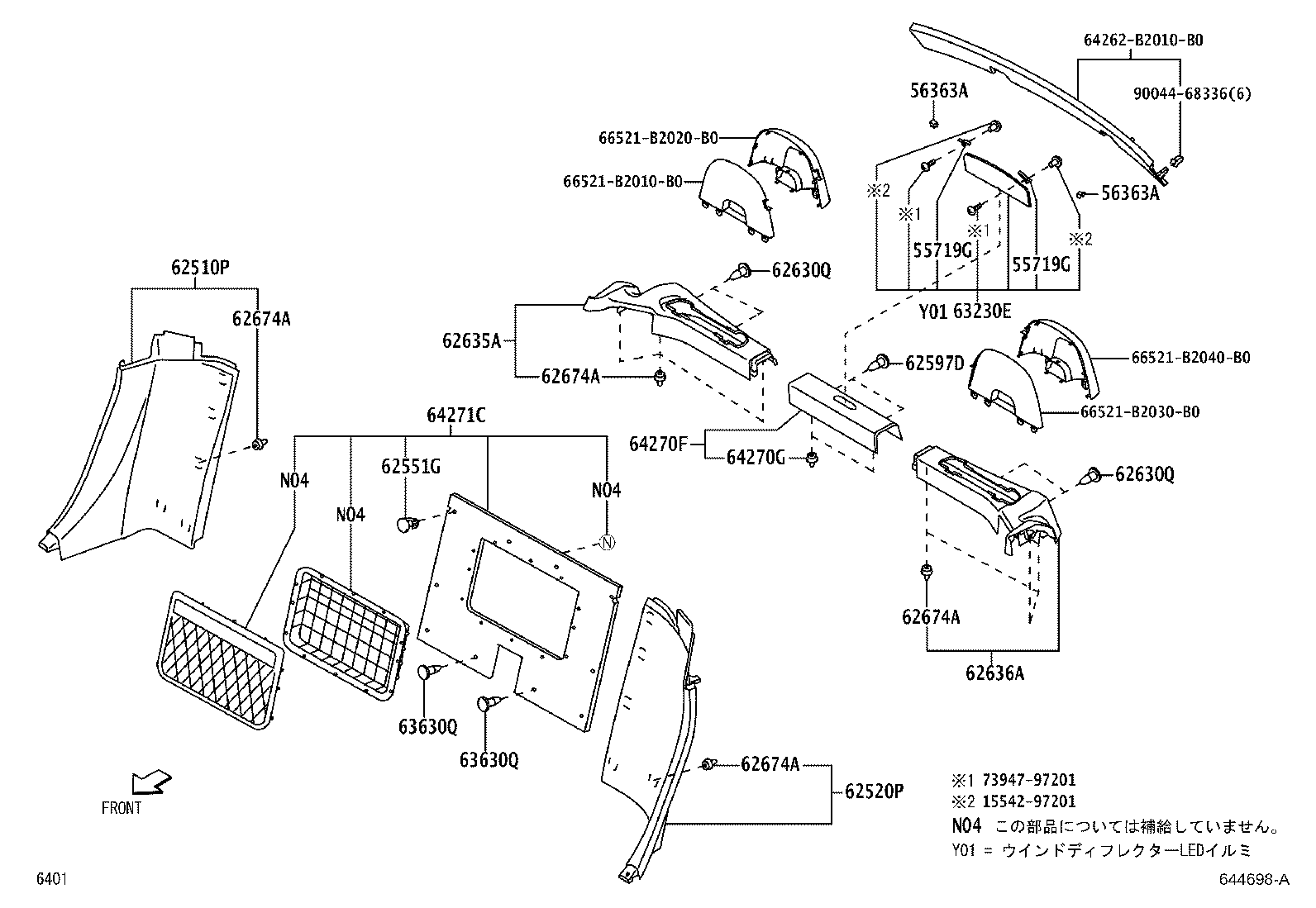

Inside Trim Board & Door Opening Trim Moulding
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55719G | Bracket, Windshield Stopper |
| 56363A | Retainer, Windshield Support Bracket |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62117C | Clip, NO.2(FOR COWL SIDE TRIM) |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62410B | Clip |
| 62431C | Garnish, Roof Side Rail, Front RH |
| 62432C | Garnish, Roof Side Rail, Front LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471M | Clip |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62551G | Clip |
| 62597D | Clip |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62635A | Panel, Quarter Trim, Upper RH |
| 62636A | Panel, Quarter Trim, Upper LH |
| 62674A | Retainer, Quarter Trim Set |
| 63230E | Board Assy, Wind Deflector |
| 63630Q | Clip |
| 64270F | Trim Assy, Back Panel |
| 64270G | Retainer, Back Panel Trim |
| 64271C | Trim, Back Panel |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
