Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

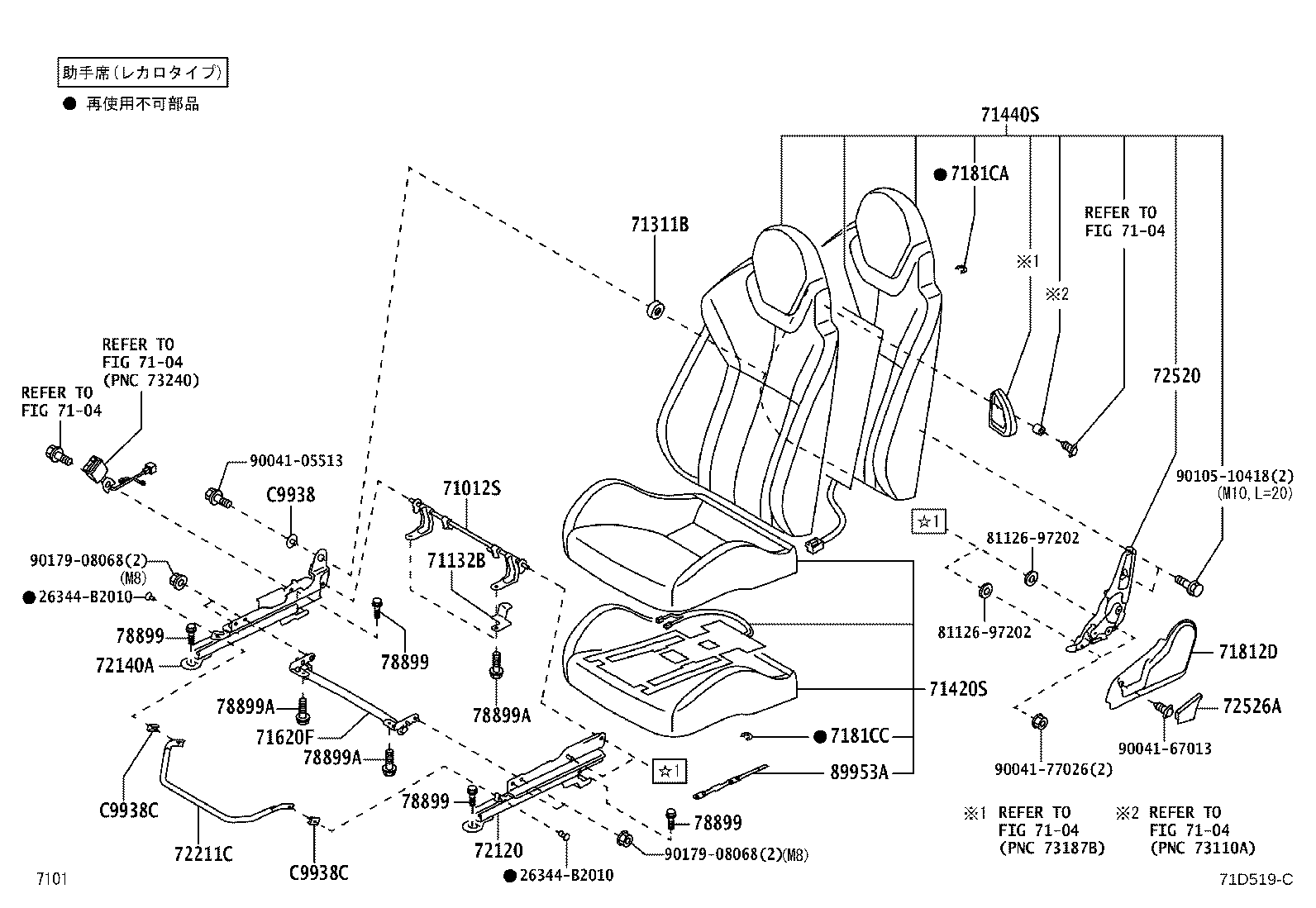

Front Seat & Seat Track
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71131B | Plate, Front Seat Cushion, NO.1 |
| 71132B | Plate, Front Seat Cushion, NO.2 |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71610F | Frame Sub-assy, Front Seat Cushion, RH |
| 71620F | Frame Sub-assy, Front Seat Cushion, LH |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 7181C | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CA | Ring, Hog, Small (FOR FRONT SEATBACK) |
| 7181CB | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 7181CC | Ring, Hog, Small (FOR FRONT SEAT CUSHION) |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72140A | Track Assy, Front Seat,Inner LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 78899 | Bolt, Front Seat |
| 78899A | Bolt, Front Seat |
| 89953A | Sensor, Belt Warning Occupant Detection |
| C9938 | Bush |
| C9938C | Bush |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
