Toyota Copen
2019-10 → present · chassis LA400A · catalogue 595110 · Japan
Supported model
Data version 2019-10

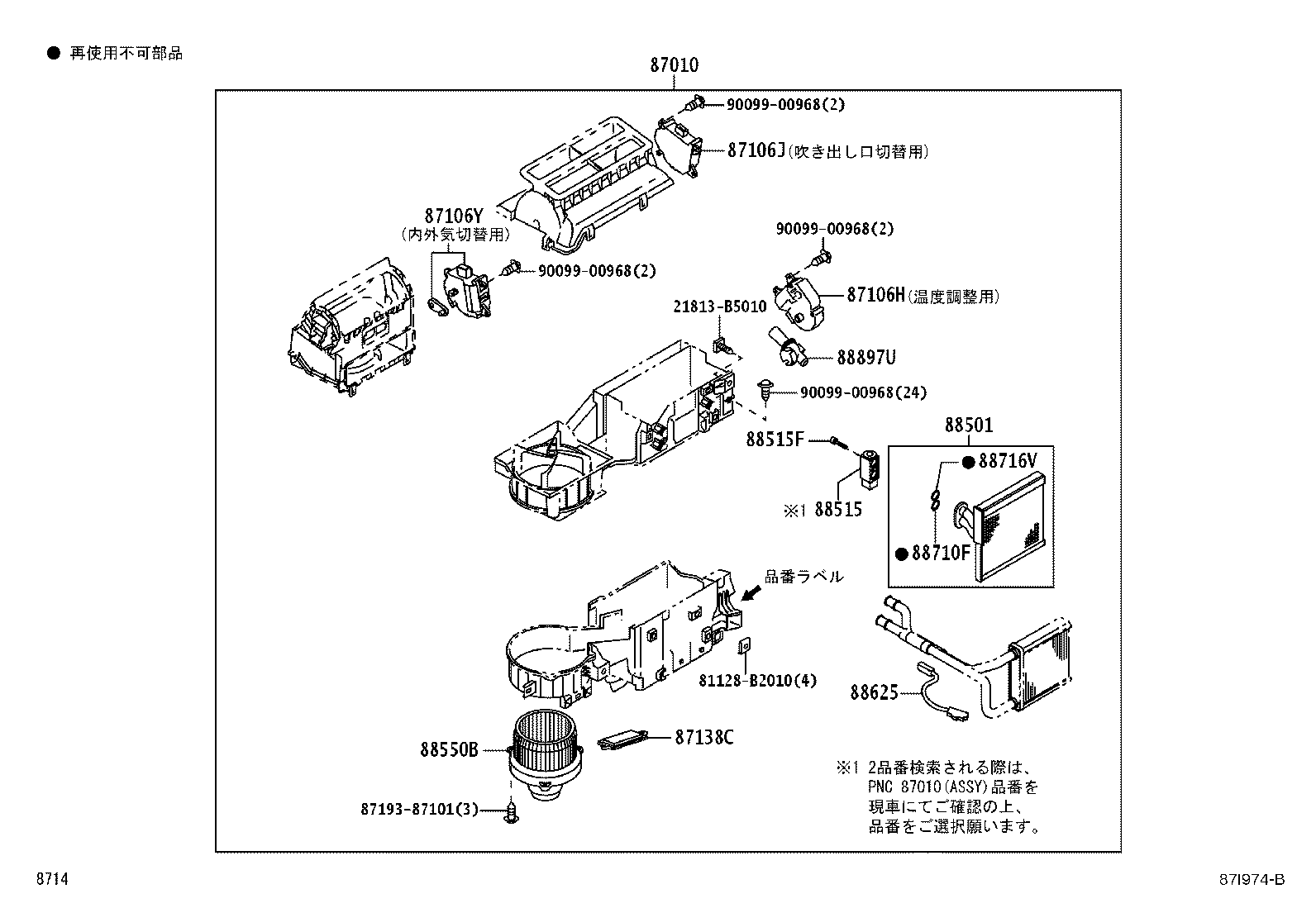

Heating & Air Conditioning - Cooler Unit
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87010 | Unit Assy, Air Conditioner |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106Y | Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH) |
| 87138C | Resistor, Blower |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539J | Hose, Drain Cooler |
| 88550B | Motor Assy, Blower |
| 88568B | Filter, Air |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648P | Wire,Air Conditioner,NO.1 |
| 88710F | Ring, O |
| 88716V | Ring, O(FOR COOLER UNIT) |
| 88892N | Cover, Cooler, NO.2 |
| 88897U | Pipe, Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
