Toyota Copen

2019-10 → present · chassis LA400A · catalogue 595110 · Japan

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

11 part groups · 3 illustrations

Illustrations

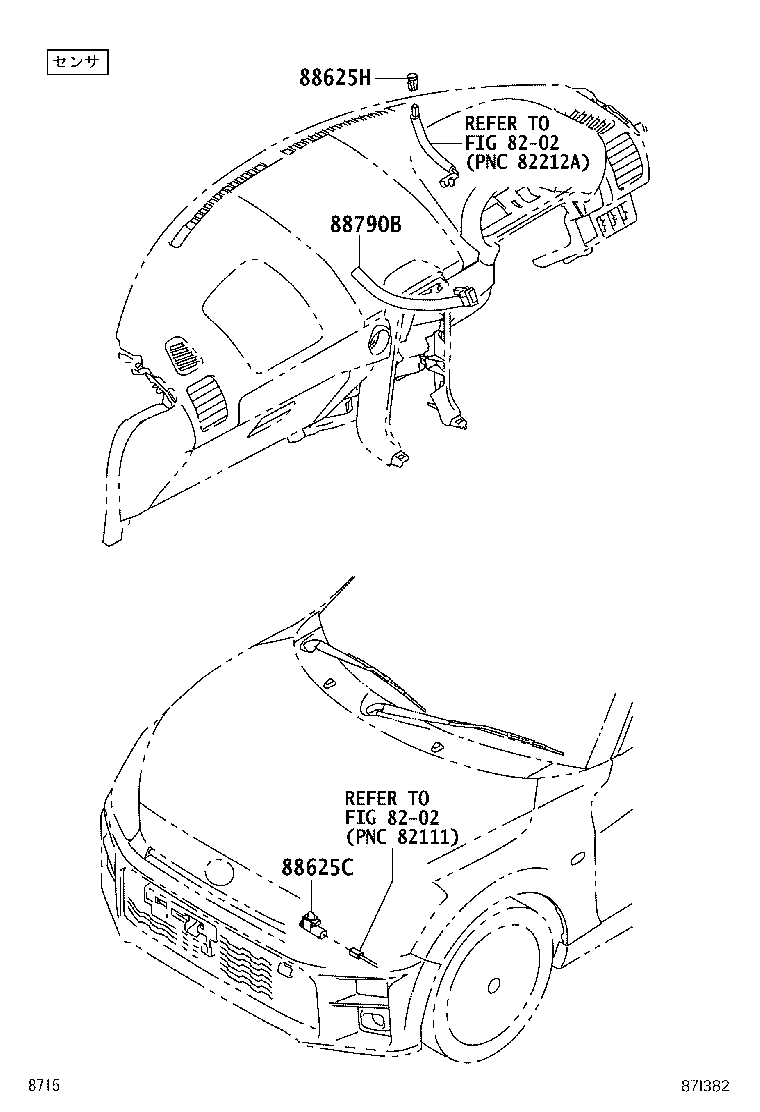

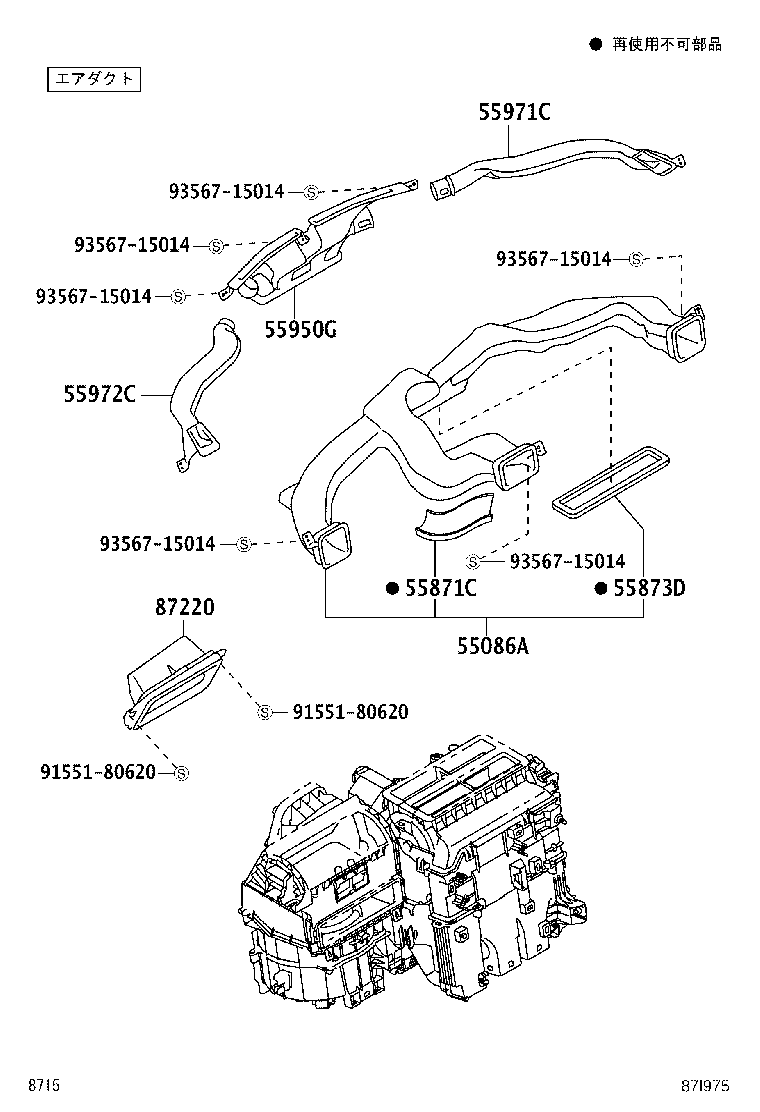

Figure 87E237A 87E237A 2019-10 → — Figure 87I975 87I975 2019-10 → — Figure 87I382 87I382 2019-10 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55871C Seal, Air Duct
55873D Seal, Air Duct, Center
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
87220 Duct Assy, Air
88625C Thermistor, Cooler
88625H Thermistor, Cooler (SOLAR SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
