Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

16 part groups · 5 illustrations

Illustrations

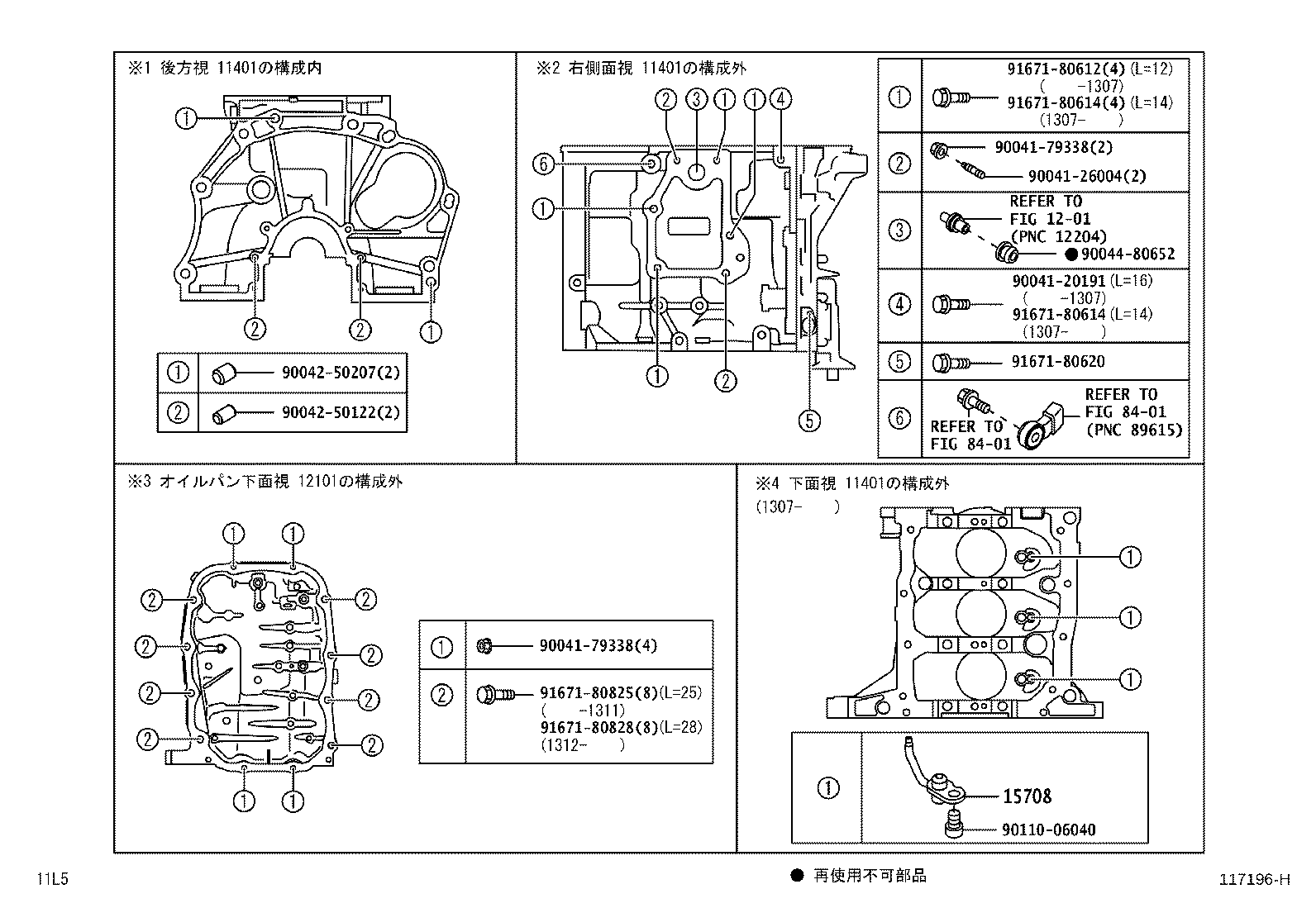

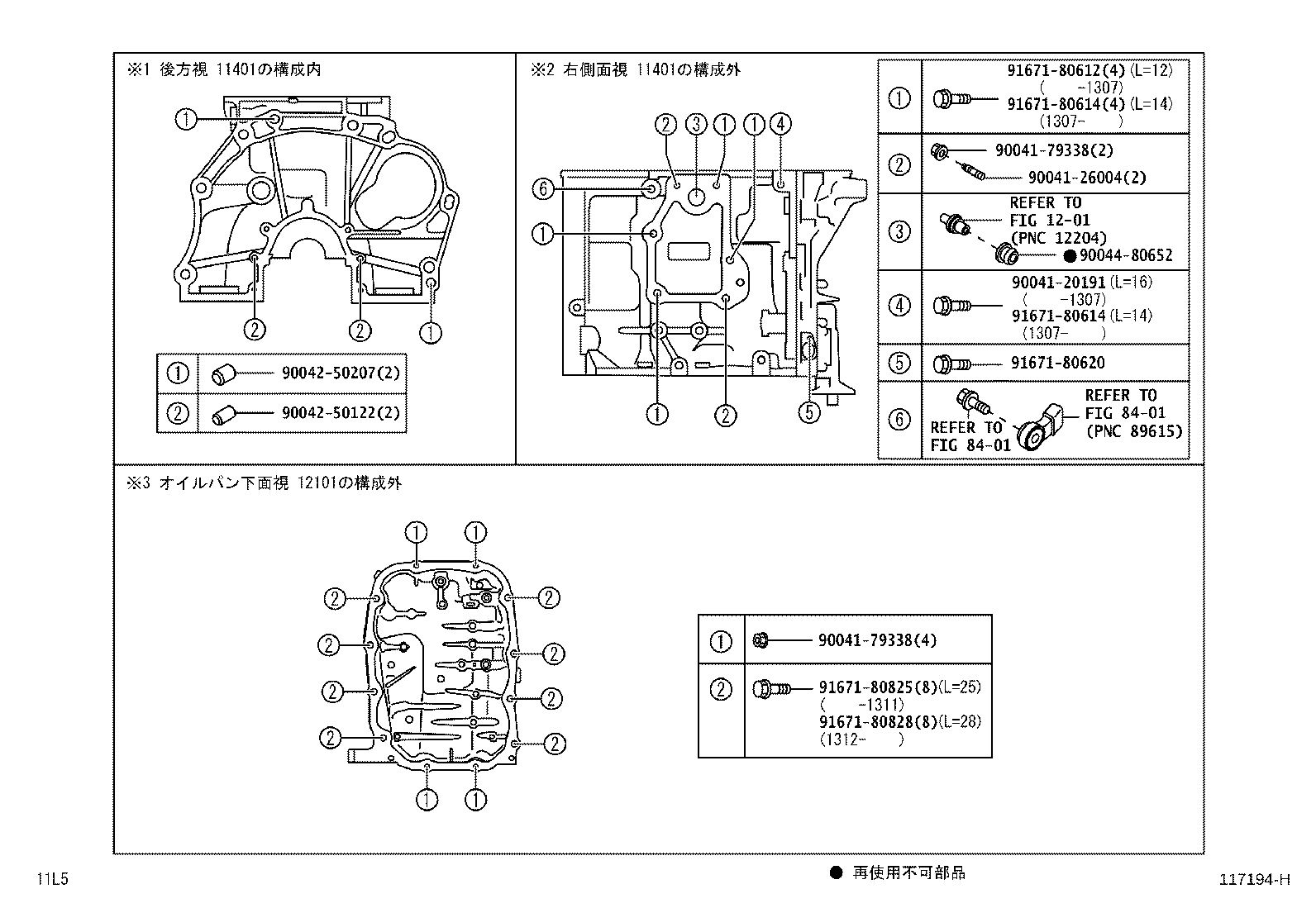

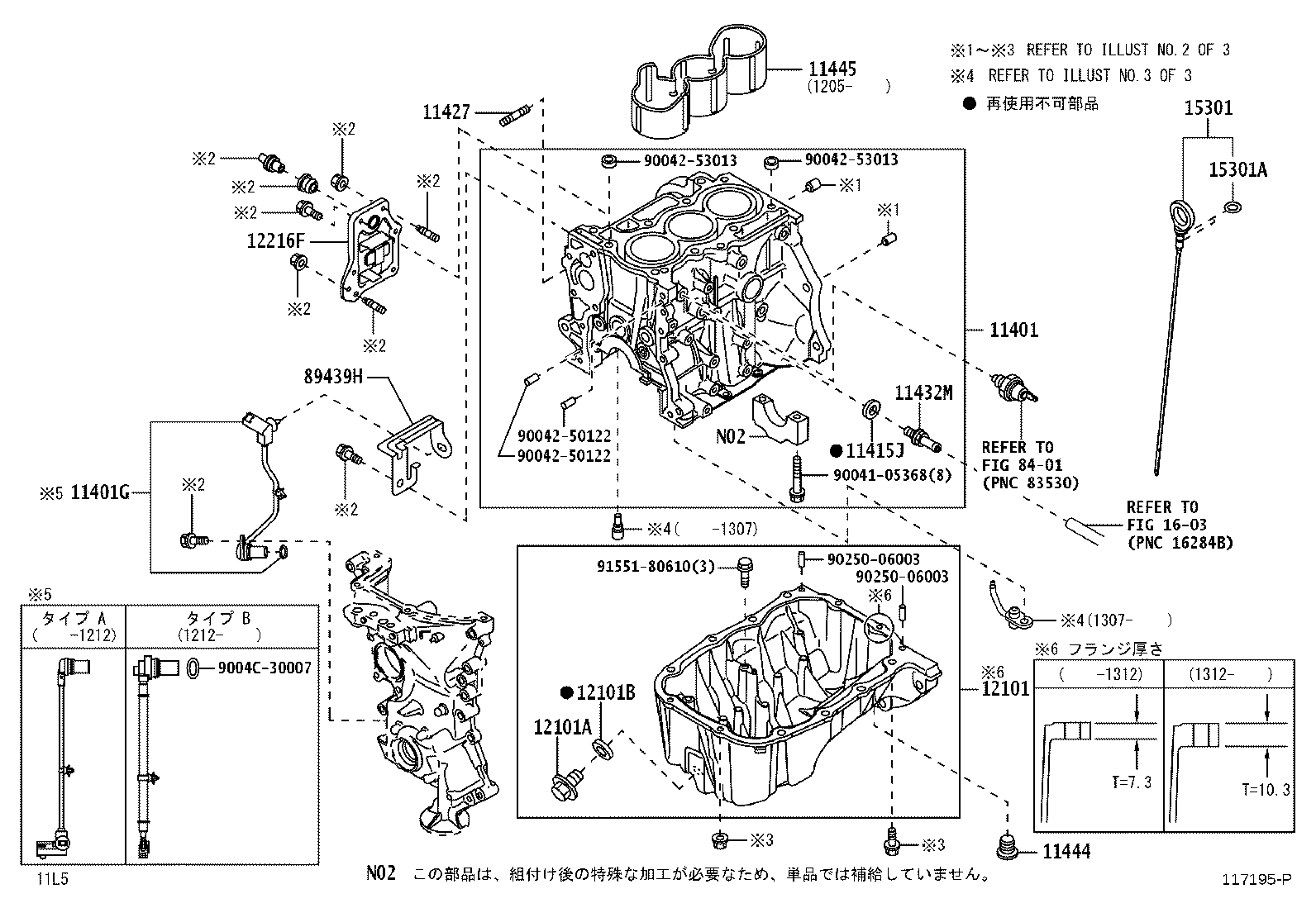

Figure 117197K 117197K 2011-09 → — Figure 117196H 117196H 2011-09 → — Figure 117195P 117195P 2011-09 → — Figure 117194H 117194H 2011-09 → — Figure 118439 118439 2011-09 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415J Gasket(FOR DRAIN COCK)
11427 Bolt, Stud(FOR TIMING CHAIN COVER SET)
11432M Union(FOR CYLINDER BLOCK)
11444 Plug, Hole
11445 Spacer, Cylinder Block Water Jacket
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12216F Plate, Ventilation Baffle
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
89439H Bracket, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
