Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

12 part groups · 2 illustrations

Illustrations

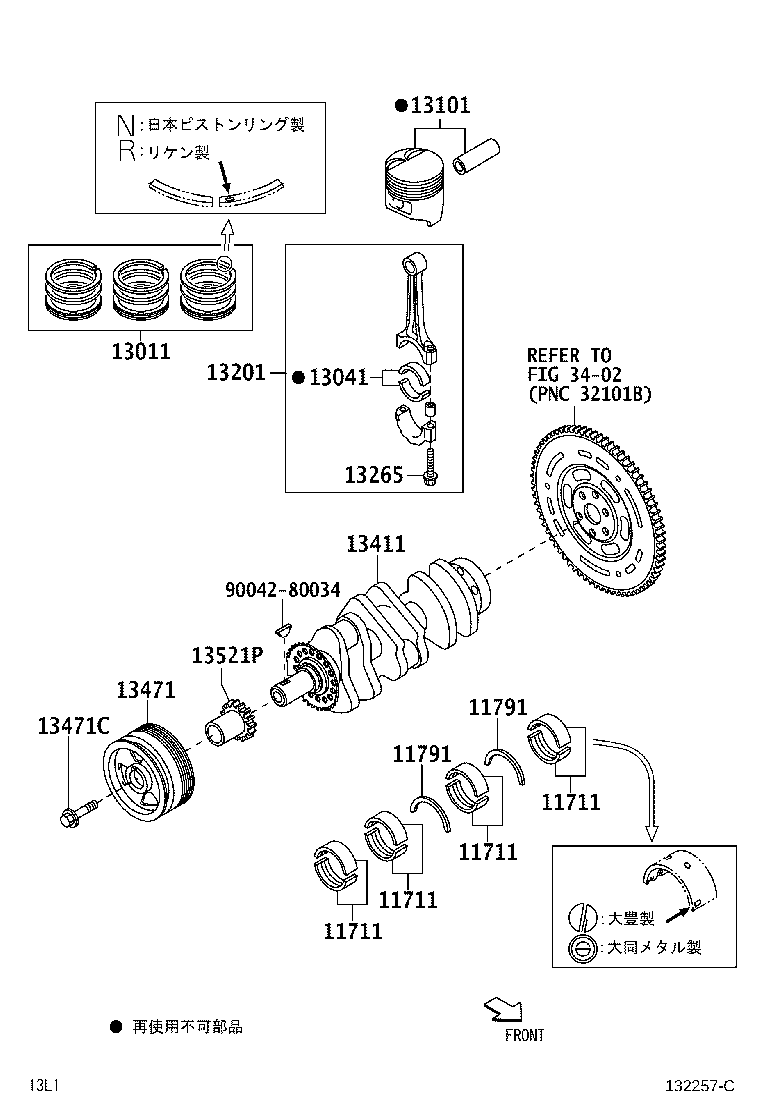

Figure 132256C 132256C 2011-09 → 2011-11 Figure 132257C 132257C 2011-11 → —

Part groups

PNCDescription
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13201 Rod Sub-assy, Connecting
13265 Bolt, Connecting Rod
13400 Crankshaft Assy
13411 Crankshaft
13471 Pulley, Crankshaft
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521P Pulley, Crankshaft Timing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
