Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

34 part groups · 10 illustrations

Illustrations

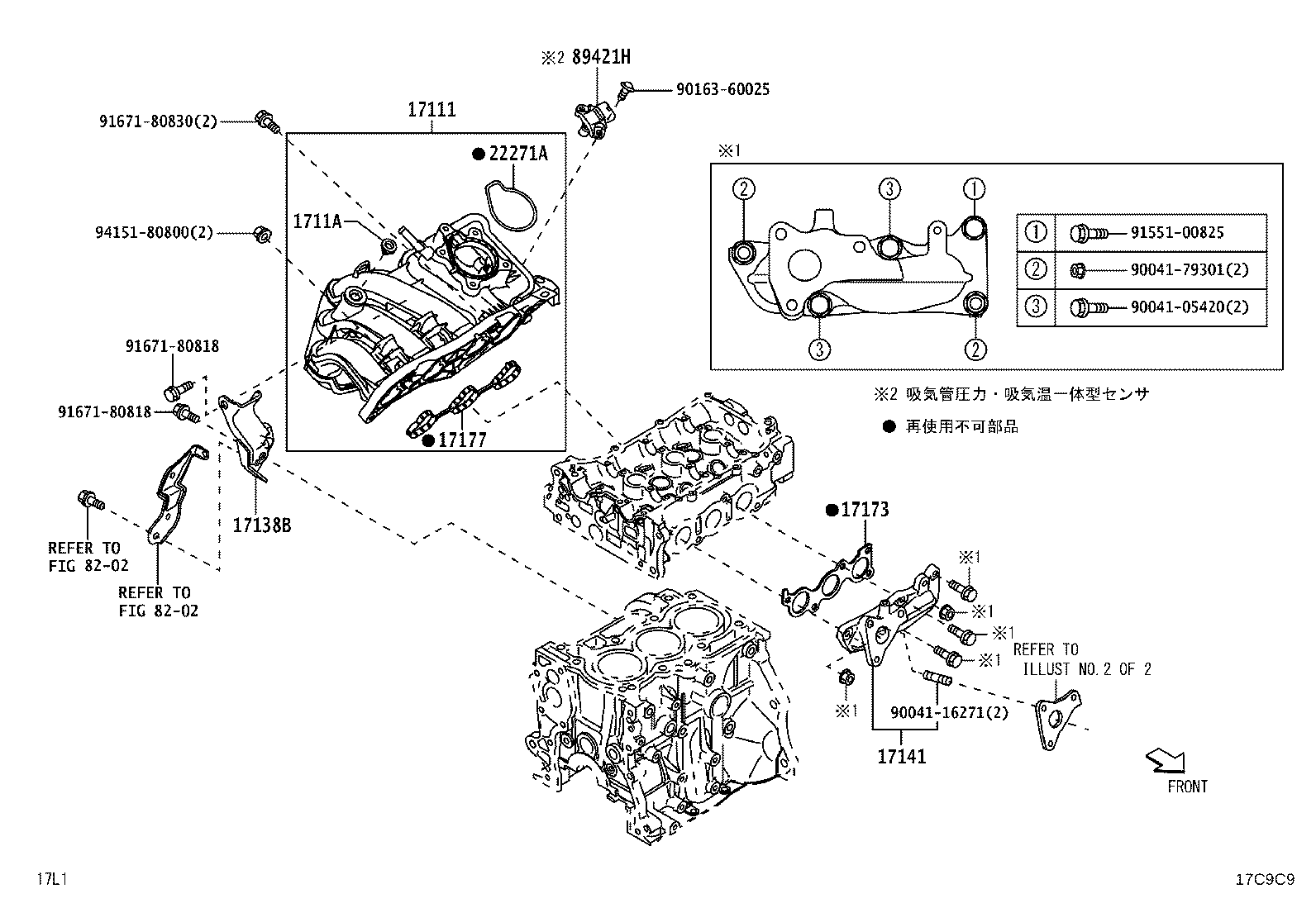

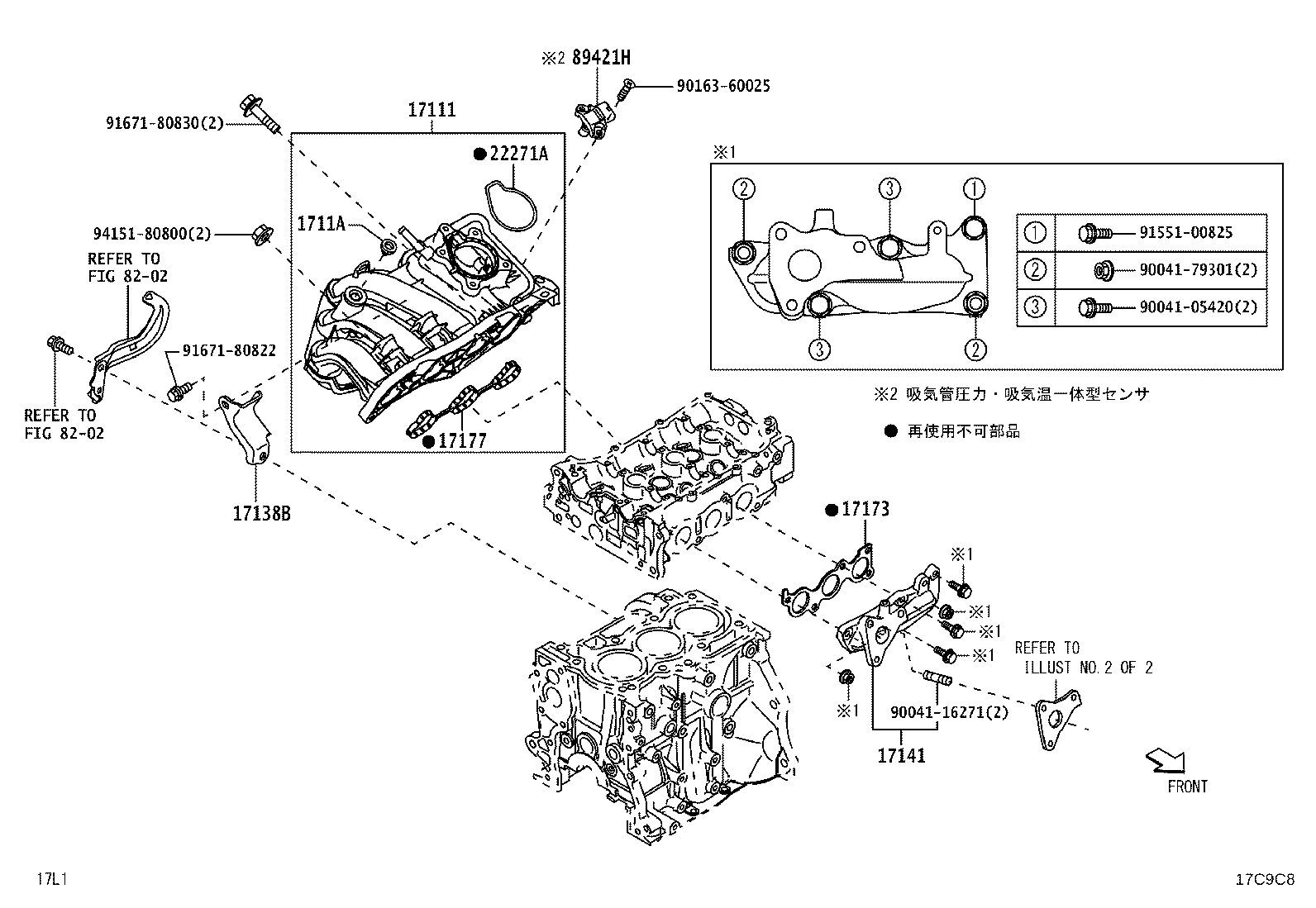

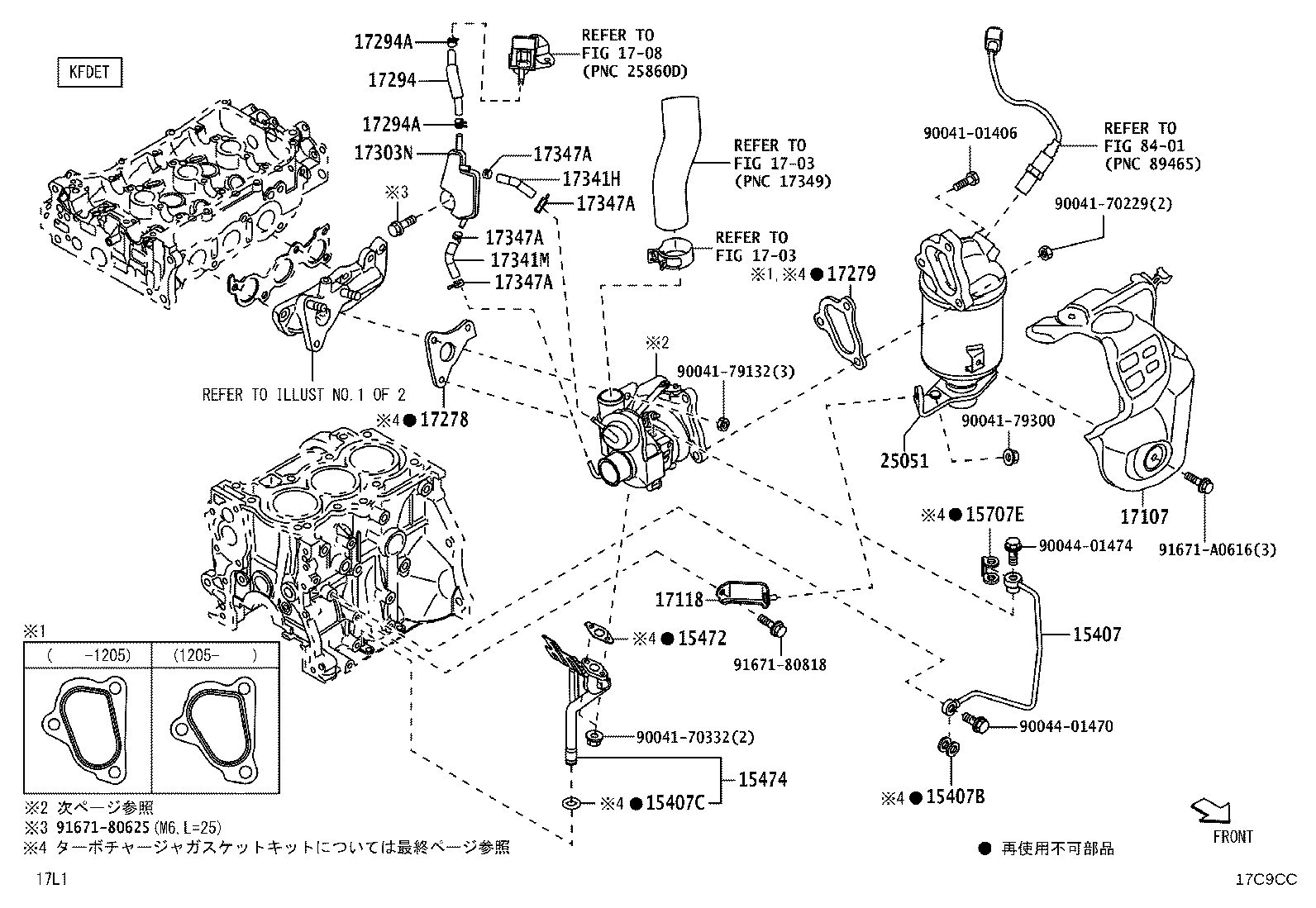

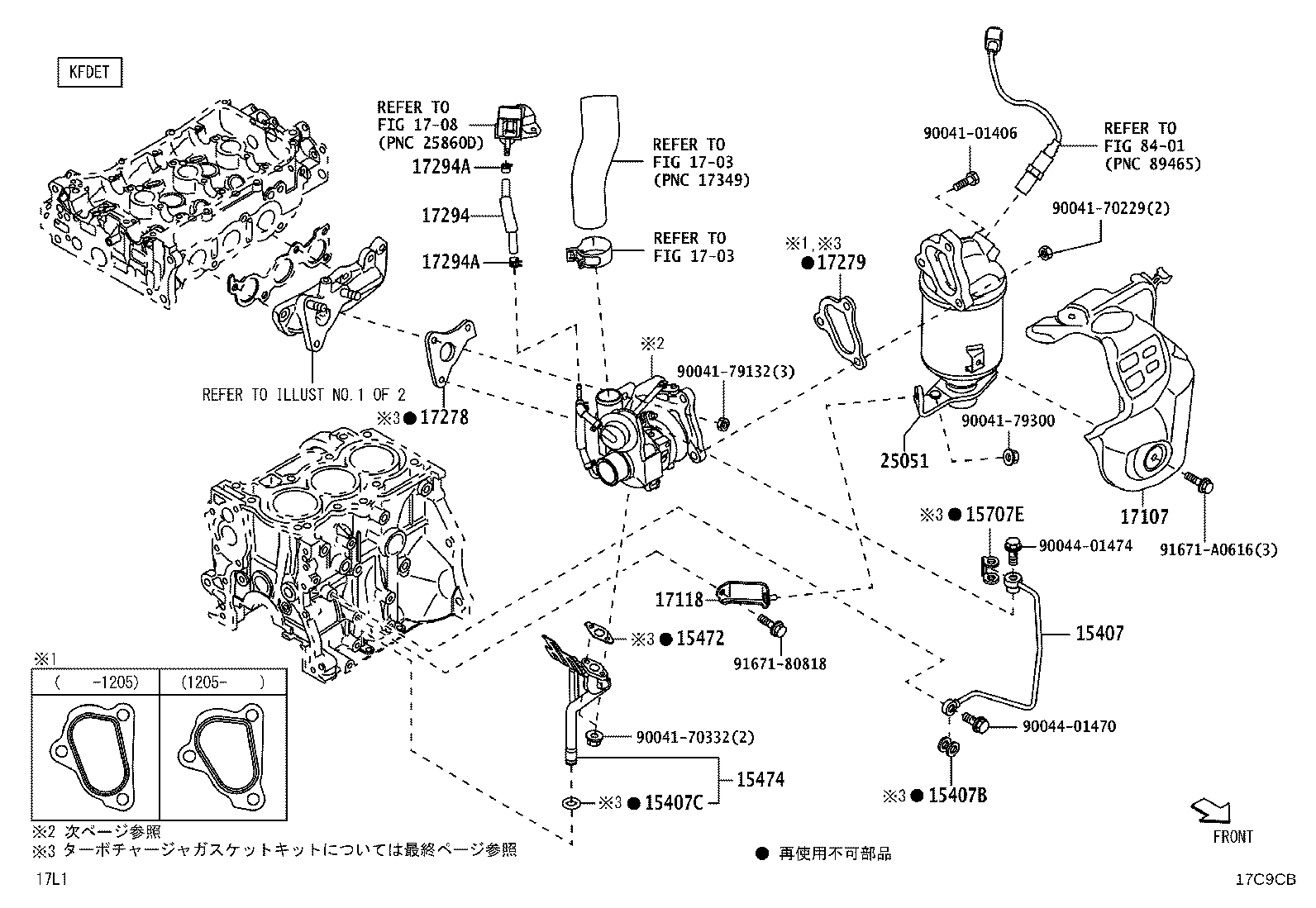

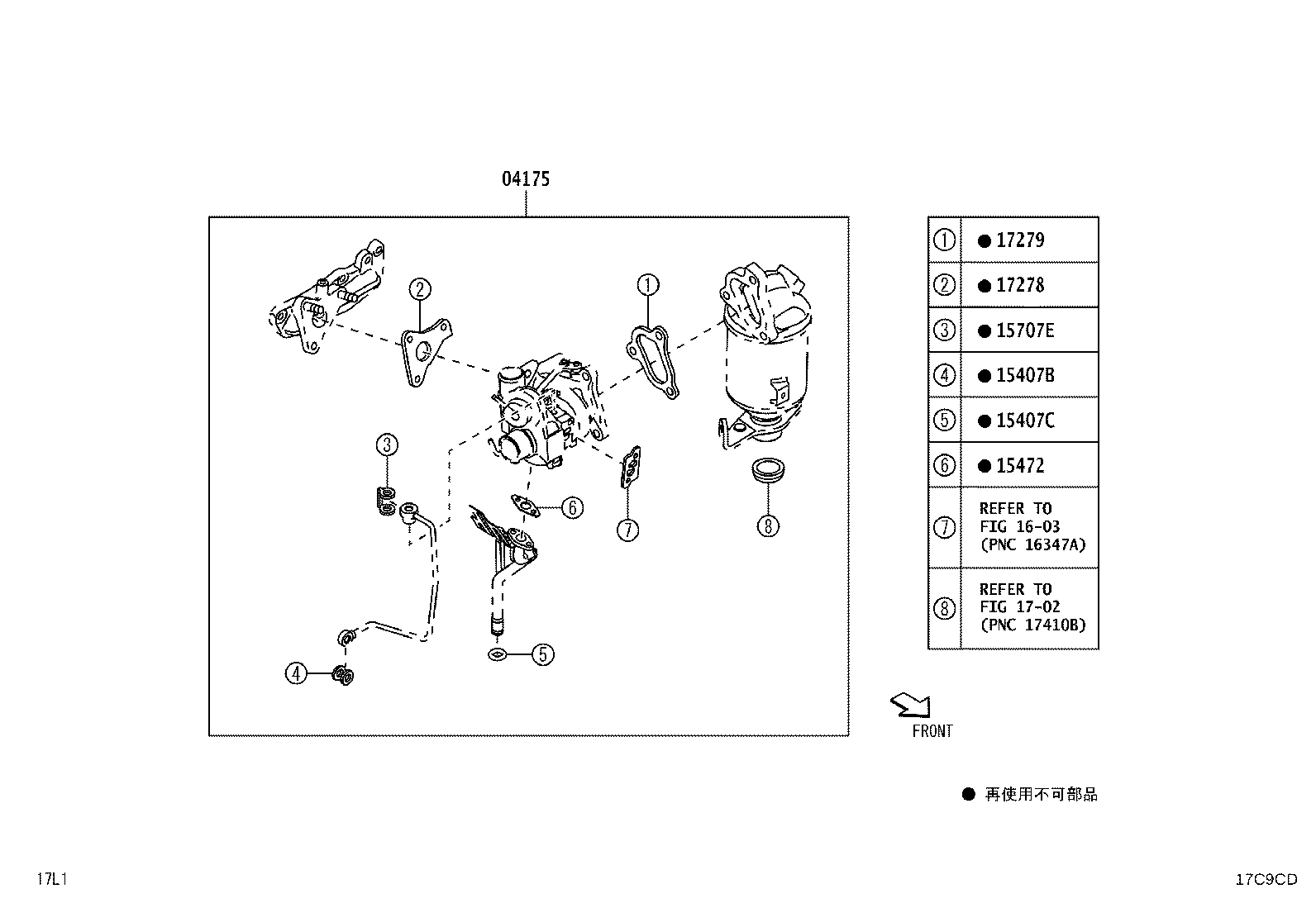

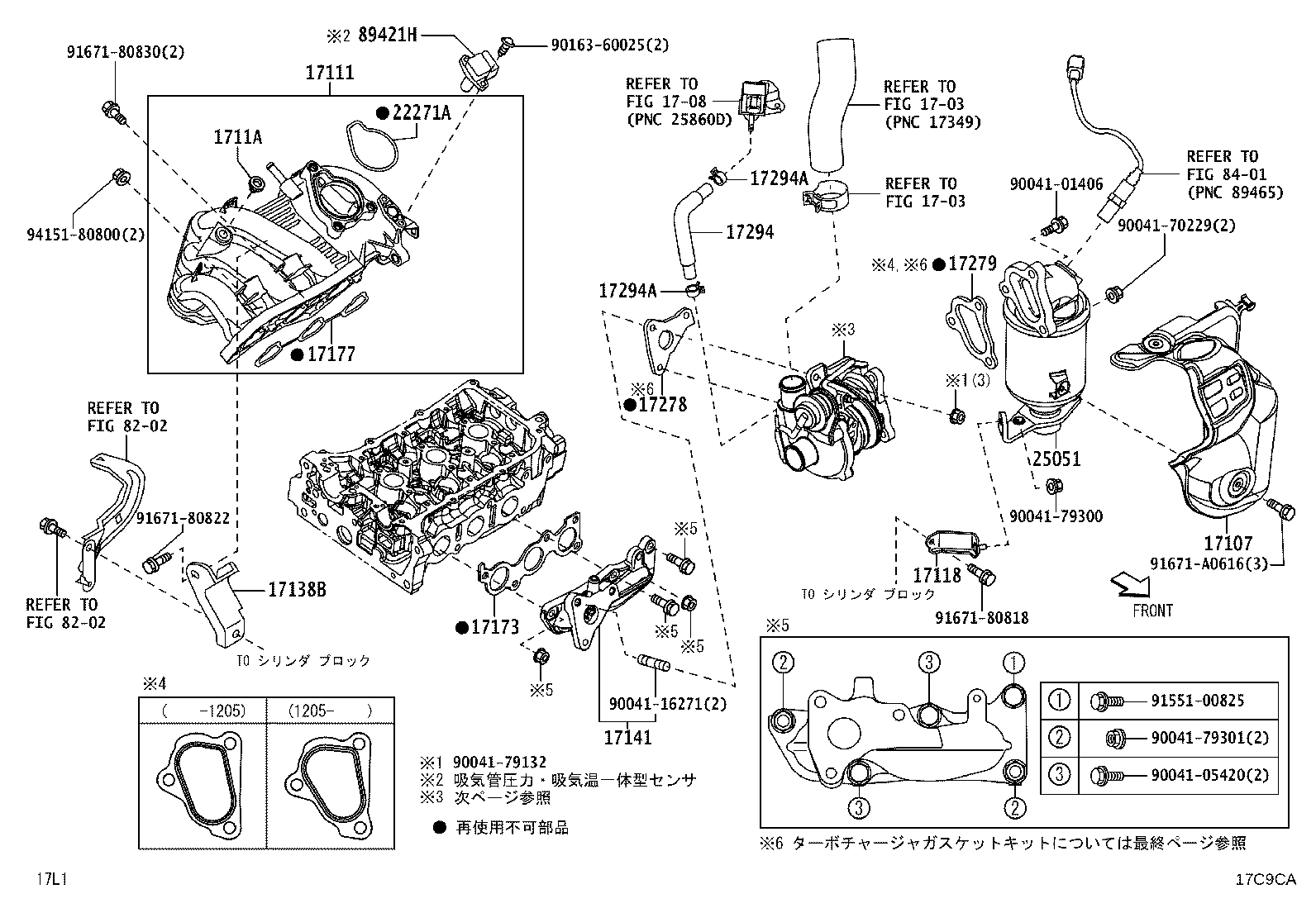

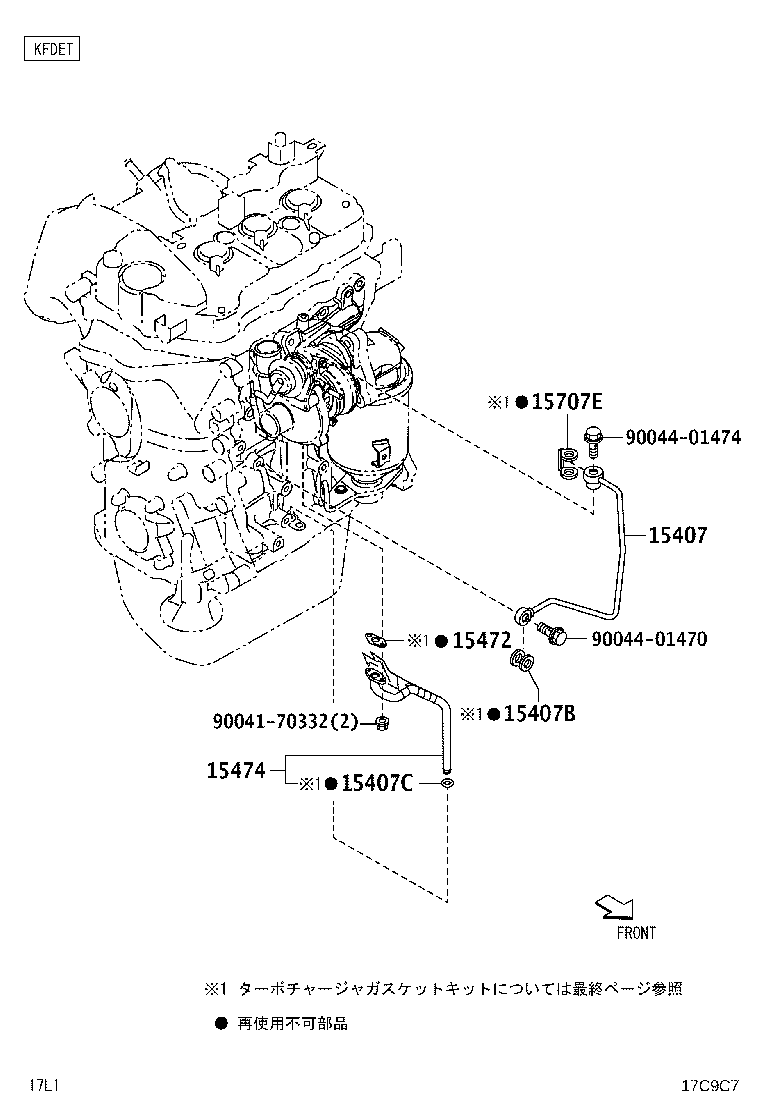

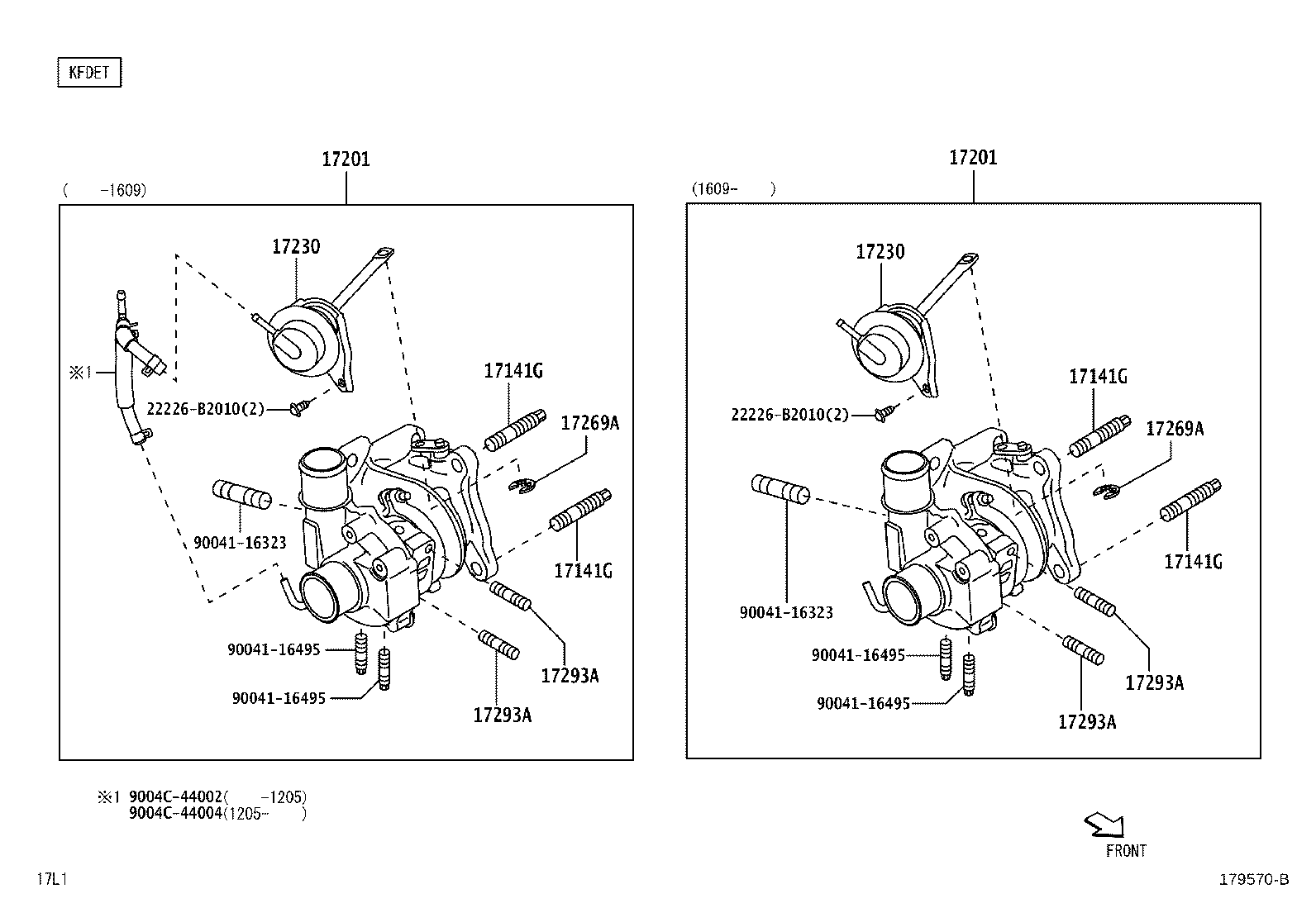

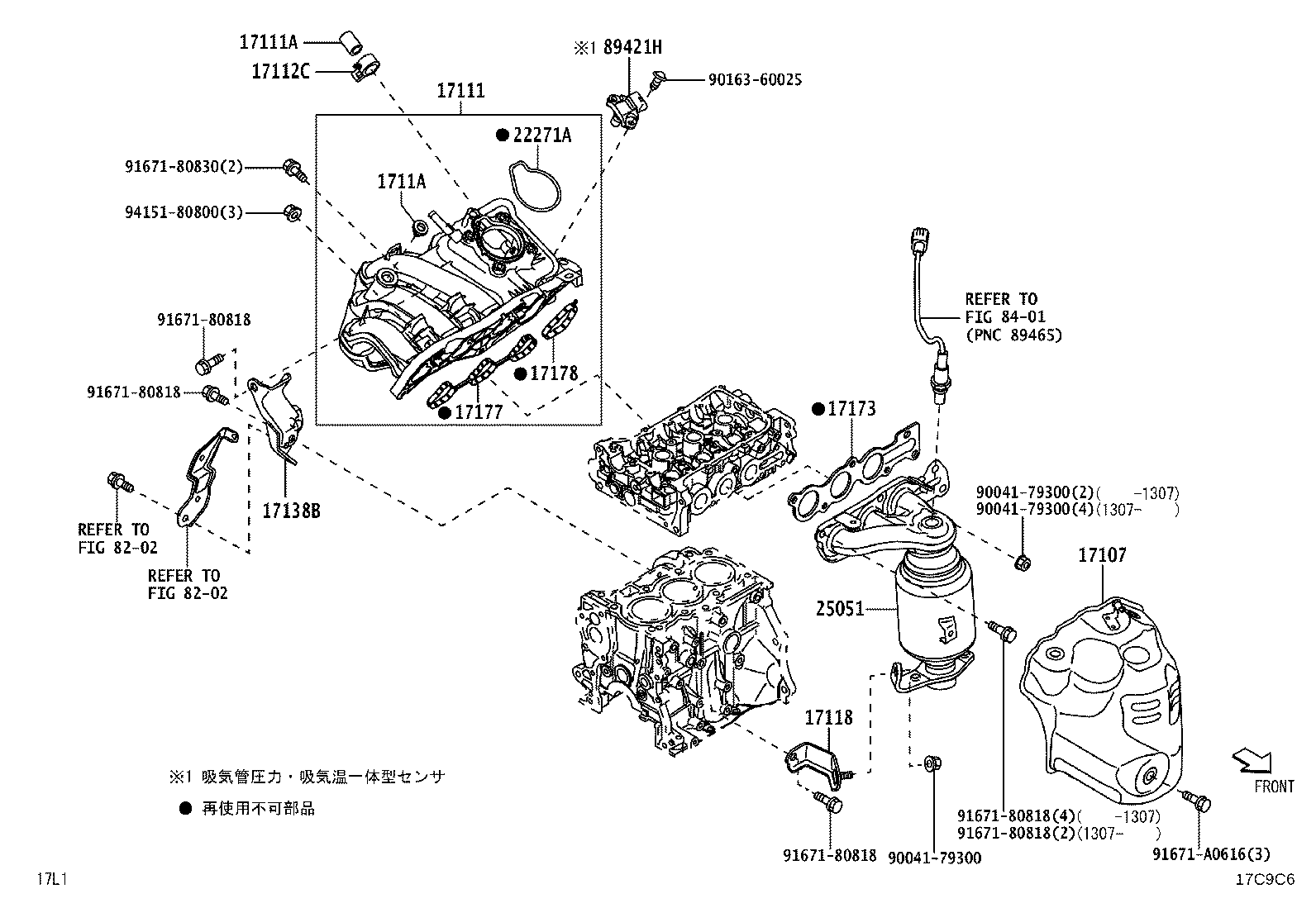

Figure 17C9C5 17C9C5 2011-09 → 2013-05 Figure 17C9C6 17C9C6 2013-05 → — Figure 17C9C7 17C9C7 2011-09 → 2012-05 Figure 17C9C8 17C9C8 2012-05 → 2013-05 Figure 17C9C9 17C9C9 2013-05 → — Figure 17C9CA 17C9CA 2011-09 → 2012-05 Figure 17C9CB 17C9CB 2012-05 → 2016-09 Figure 17C9CC 17C9CC 2016-09 → — Figure 179570B 179570B 2011-09 → — Figure 17C9CD 17C9CD 2011-09 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407C Ring, O(FOR TURBO OIL PIPE)
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15707E Gasket(FOR OIL PIPE)
17107 Insulator Sub-assy, Exhaust Manifold Heat
17111 Manifold, Intake
17111A Plug, NO.1
17112C Clip(FOR INTAKE MANIFOLD)
17118 Stay, Manifold
1711A Grommet
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141G Bolt, Stud(FOR TURBOCHARGER)
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17201 Turbocharger Sub-assy
17230 Actuator Assy, W/Bracket
17269A Ring, Retainer(FOR TURBOCHARGER)
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293A Bolt, Stud(FOR TURBOCHARGER STAY)
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17303N Pipe Sub-assy, Air
17341H Hose, Air
17341M Hose, Air, NO.1
17347A Clip(FOR AIR HOSE NO.7)
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
89421H Sensor, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
