Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

10 part groups · 3 illustrations

Illustrations

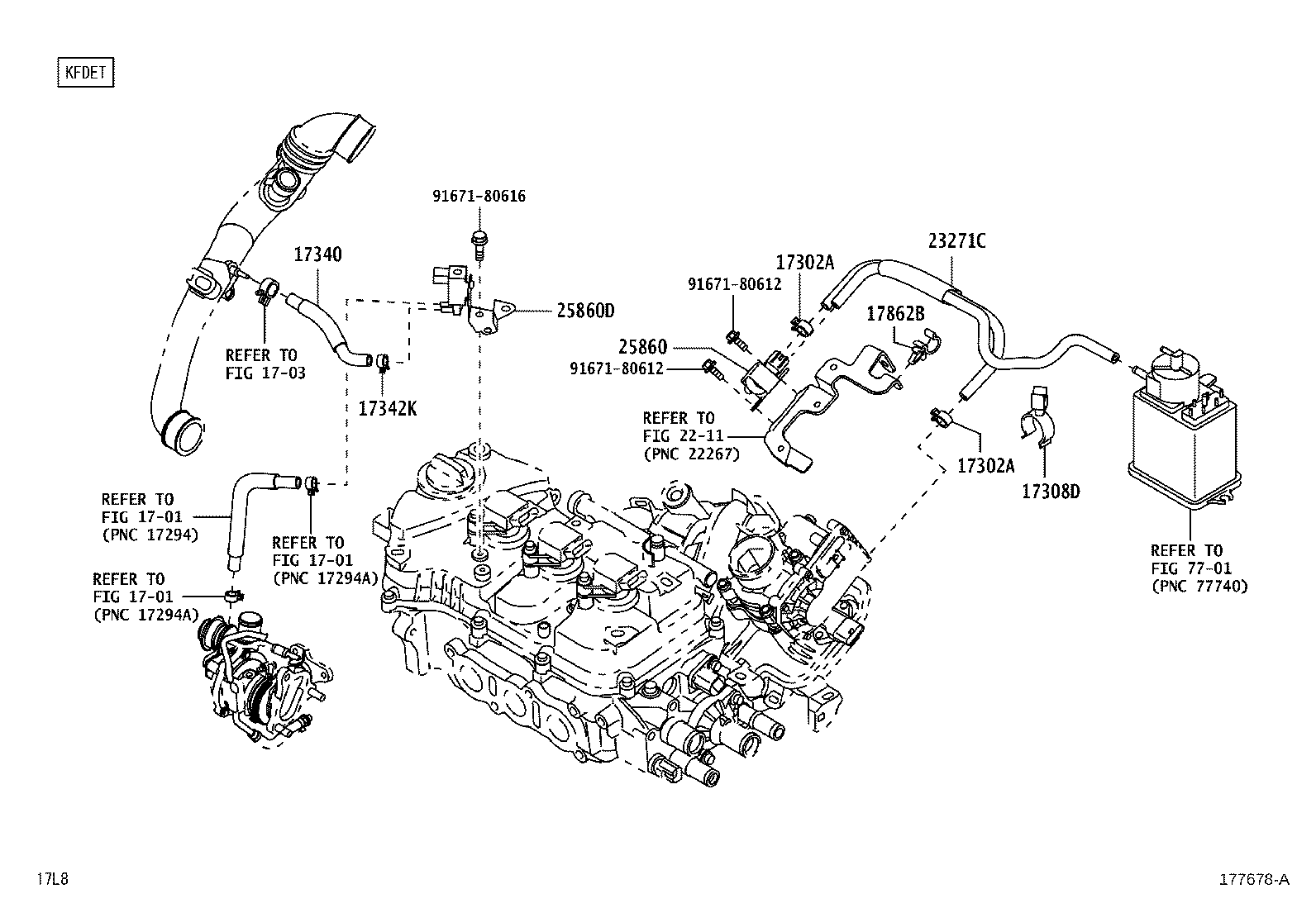

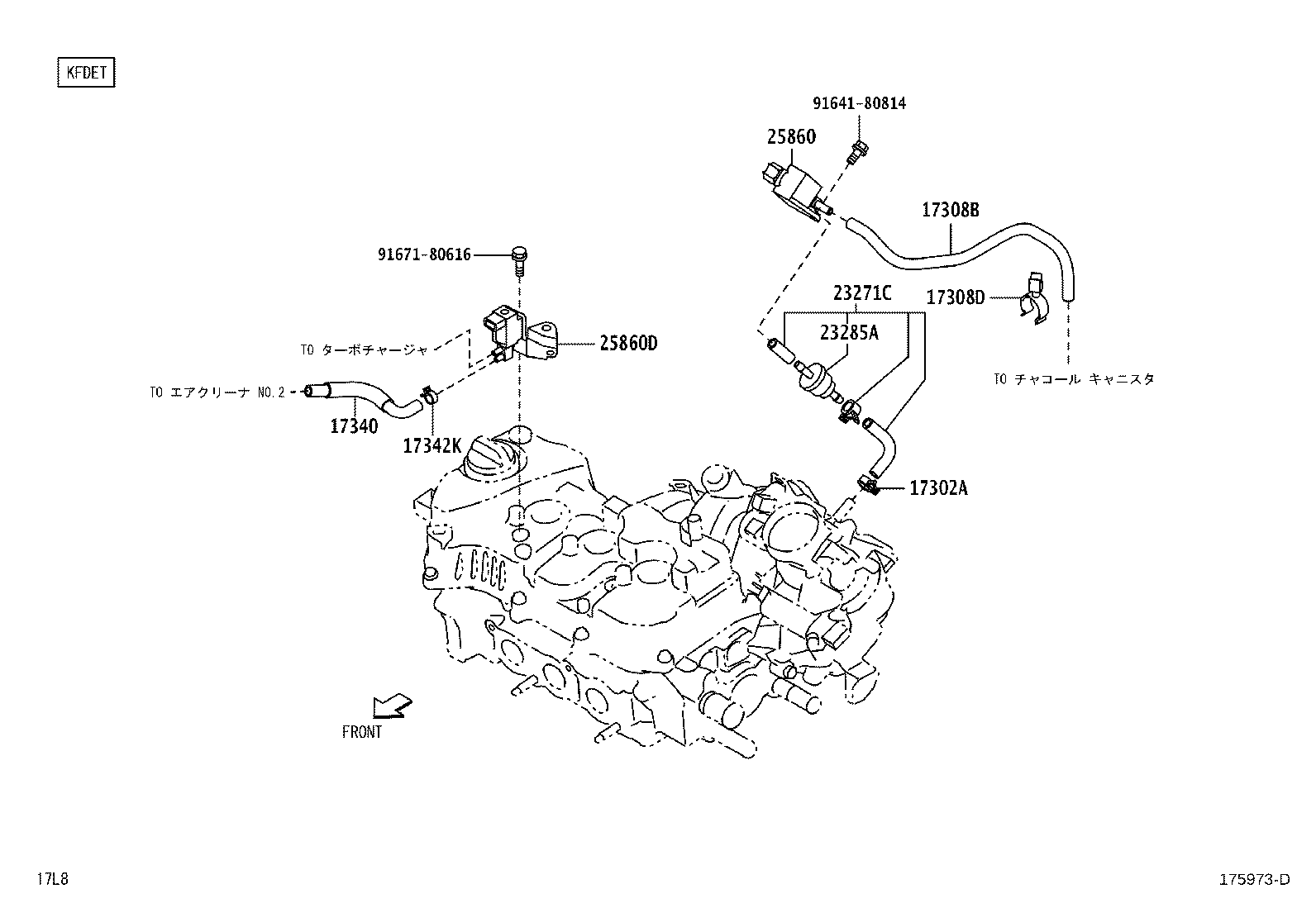

Figure 177076E 177076E 2011-09 → — Figure 175973D 175973D 2011-09 → 2012-05 Figure 177678A 177678A 2012-05 → —

Part groups

PNCDescription
17302A Clip, Hose
17308B Hose Sub-assy, Vacuum
17308D Clamp, NO.2(FOR VACUUM HOSE)
17340 Hose Assy, Vacuum Switching Valve
17342K Clip(FOR VACUUM HOSE)
17862B Clamp, Hose
23271C Hose, Fuel
23285A Valve, Check, NO.1
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
