Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

14 part groups · 3 illustrations

Illustrations

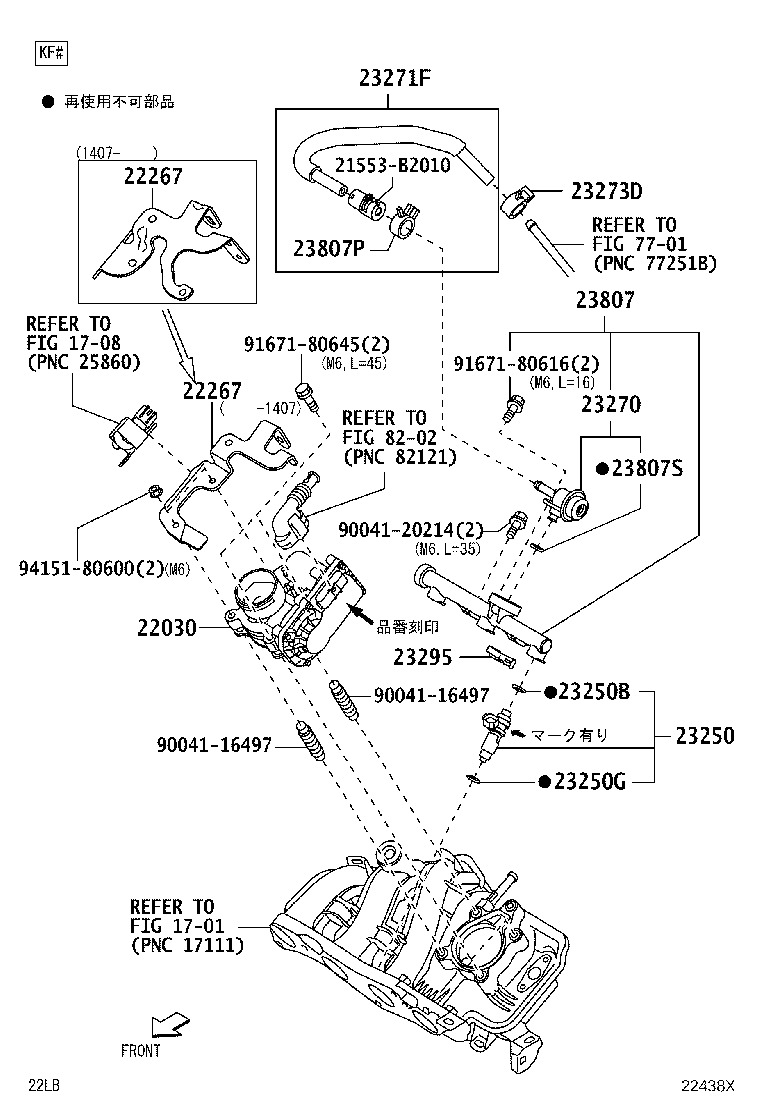

Figure 222714C 222714C 2011-09 → 2012-05 Figure 22438X 22438X 2011-09 → — Figure 22438X 22438X 2012-05 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22267 Bracket, Throttle Body
22268 Bracket, Throttle Body, NO.2
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250G Ring, O, NO.2(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23271F Hose, Fuel
23273D Clip(FOR FUEL HOSE NO.2)
23295 Holder, Injector, NO.1
23807 Pipe Sub-assy, Fuel Delivery
23807P Clip(FOR FUEL HOSE)
23807S Ring, O(FOR FUEL DELIVARY PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
