Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

13 part groups · 2 illustrations

Illustrations

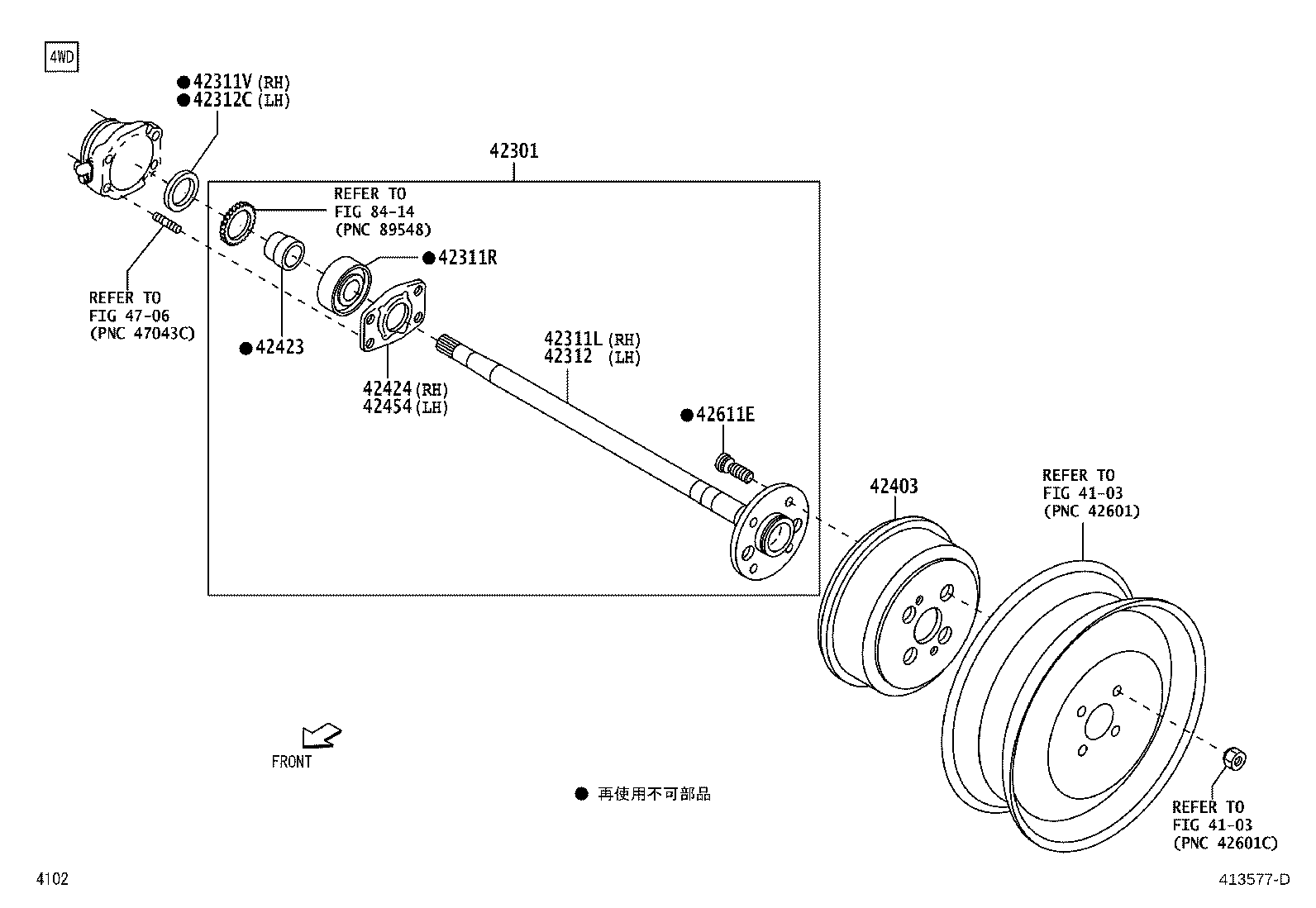

Figure 413576D 413576D 2011-09 → — Figure 413577D 413577D 2011-09 → —

Part groups

PNCDescription
42301 Shaft Sub-assy, Rear Axle
42311L Shaft, Rear Axle, RH
42311R Bearing(FOR REAR AXLE SHAFT INNER)
42311V Seal, Oil(FOR REAR AXLE SHAFT RH)
42312 Shaft, Rear Axle, LH
42312C Seal, Oil(FOR REAR AXLE SHAFT LH)
42403 Drum Sub-assy, Rear Brake
42410 Hub & Bearing Assy, Rear Axle, RH
42423 Retainer, Rear Axle Bearing, Inner
42424 Retainer, Rear Axle Bearing, Outer, RH
42440 Hub & Bearing Assy, Rear Axle, LH
42454 Retainer, Rear Axle Bearing, Outer, LH
42611E Bolt, Hub (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
