Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

18 part groups · 2 illustrations

Illustrations

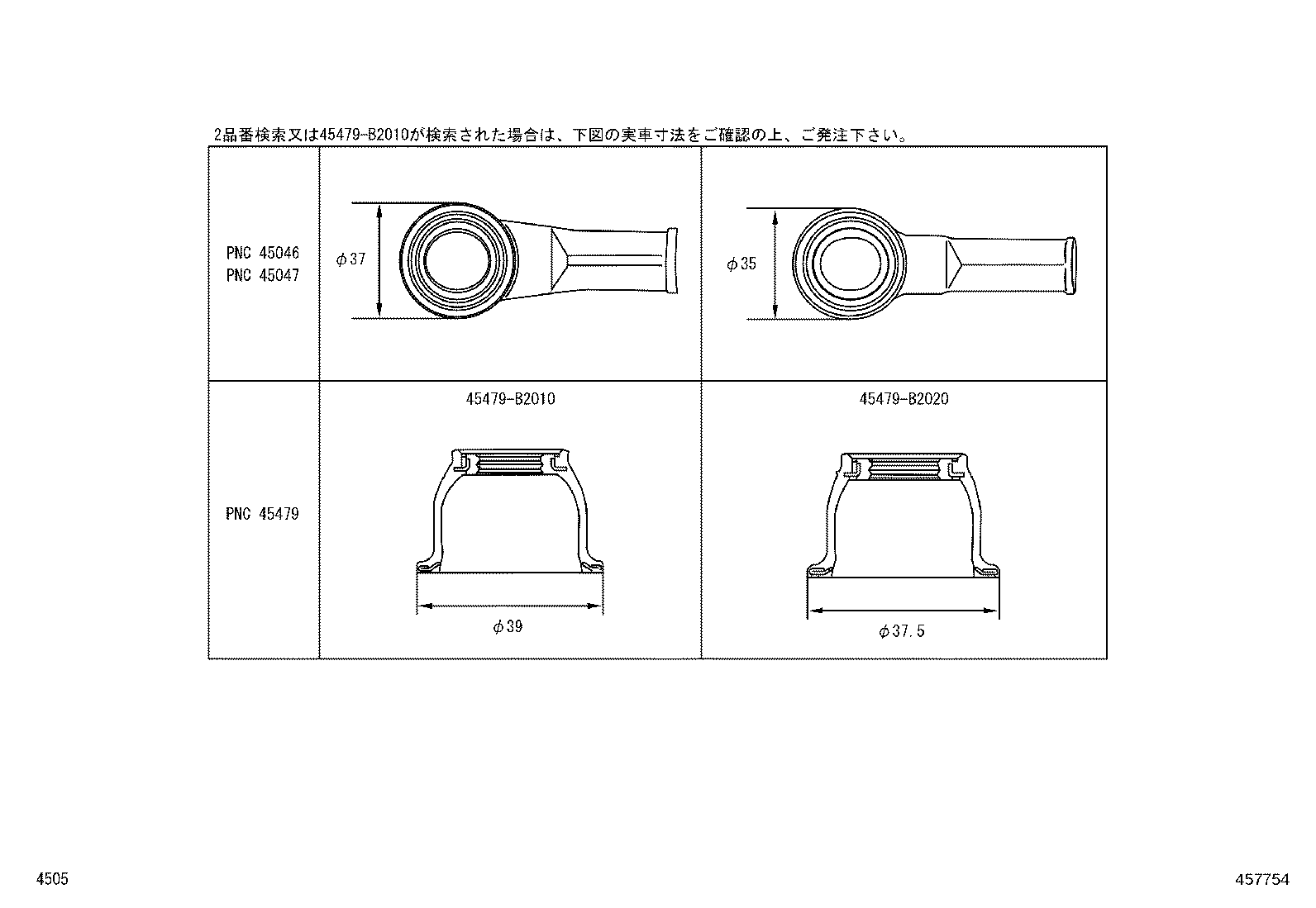

Figure 457549B 457549B 2011-09 → — Figure 457754 457754 2011-09 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45047 End Sub-assy, Tie Rod, LH
45479 Seal, Steering Link Joint Dust
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
45514 Bracket, Steering Rack Housing, NO.1
45516 Grommet, Steering Rack Housing, NO.1
45516A Bush, Steering Rack Housing, NO.1
45516C Bush, Steering Rack Housing, NO.2
45523 Guide, Rack(FOR STEERING GEAR)
45523A Spring(FOR STEERING GEAR RACK GUIDE)
45523C Spacer(FOR RACK GUIDE)
45524 Cap, Steering Rack Guide Spring
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45541C Bearing, Radial Ball(FOR STEERING PINION)
45541D Ring, Shaft Snap(FOR STEERING PINION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
