Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

15 part groups · 3 illustrations

Illustrations

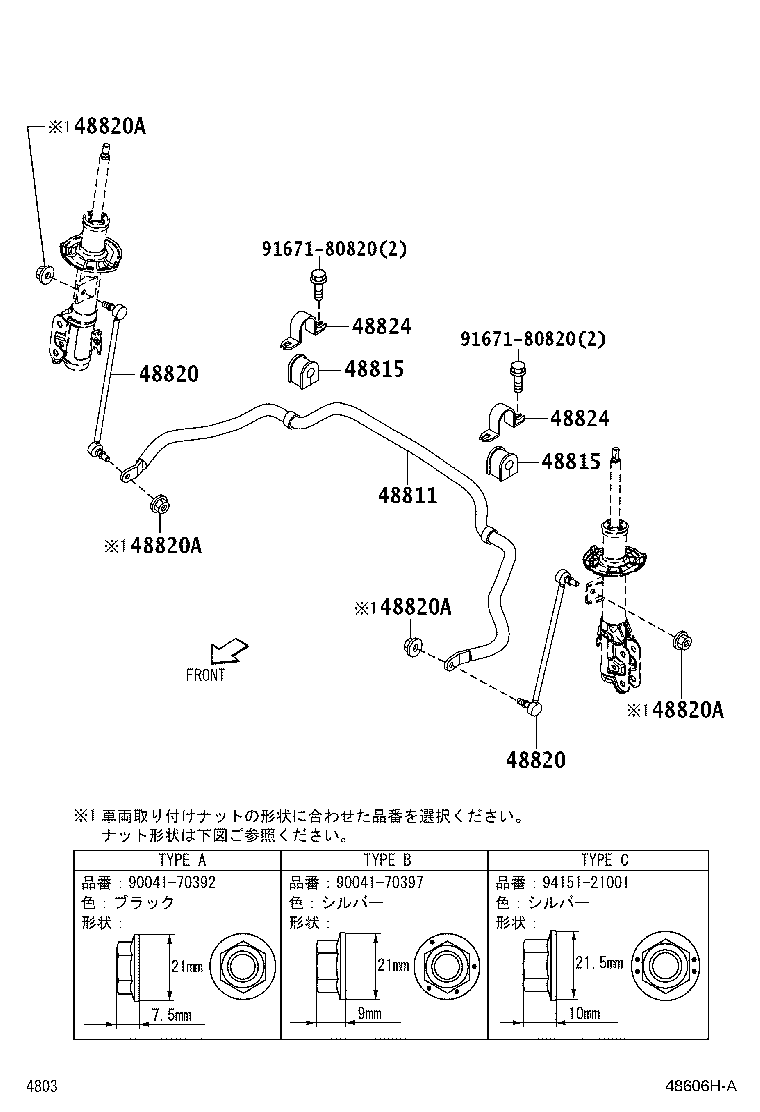

Figure 484363C 484363C 2011-09 → — Figure 48606HA 48606HA 2011-09 → — Figure 48606HA 48606HA 2014-04 → —

Part groups

PNCDescription
48044 Seat Sub-assy, Front Spring, NO.1
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48331 Bumper, Front Spring, NO.1
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48609A Support Sub-assy, Front Suspension
48619 Bearing, Strut Mounting, RH
48619A Bearing, Strut Mounting, LH
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820 Link Assy, Front Stabilizer
48820A Nut(FOR FRONT STABILIZER LINK)
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
