Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 2 illustrations

Illustrations

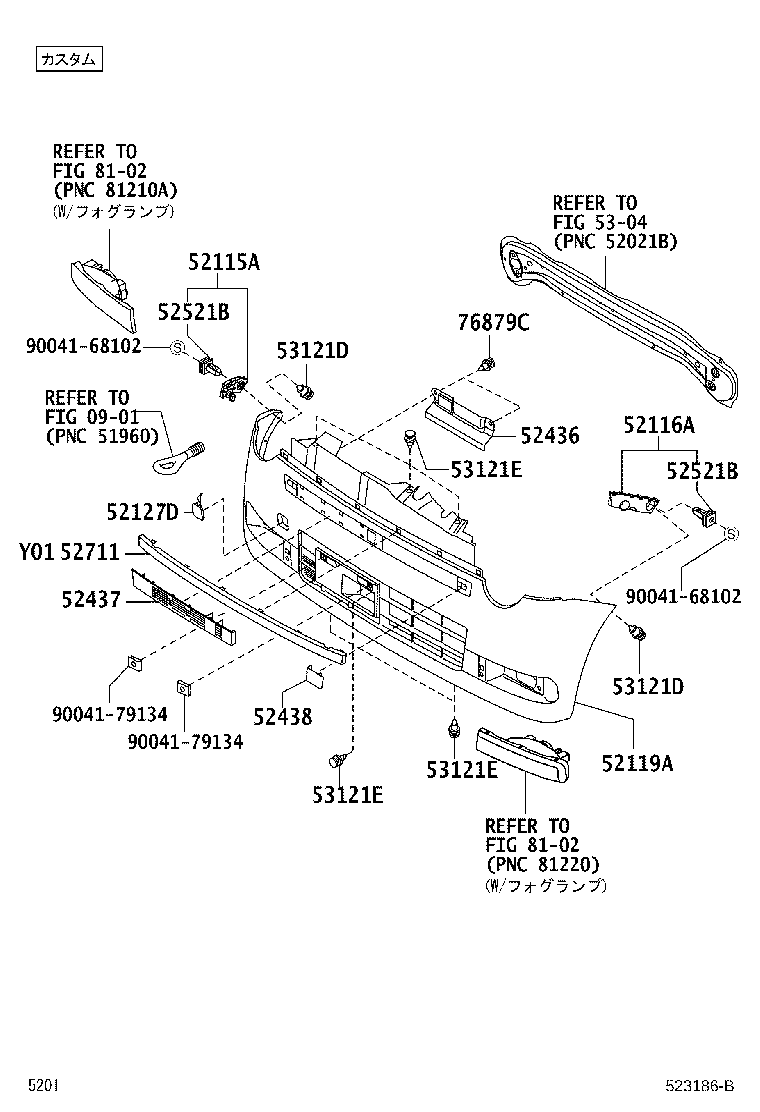

Figure 523344A 523344A 2011-09 → — Figure 523186B 523186B 2011-09 → —

Part groups

PNCDescription
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52436 Protector, Front Bumper Guard
52437 Cover, Front Bumper Guard, RH
52438 Cover, Front Bumper Guard, LH
52521B Retainer, Front Bumper, Upper
52711 Moulding, Front Bumper
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
76879C Clip, Front Bumper Guard, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
