Toyota Pixis Space

2011-09 → 2016-12 · chassis L575A,L585A · catalogue 597110 · Japan

Supported model Data version 2016-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 3 illustrations

Illustrations

Figure 533546D

533546D 2011-09 → —

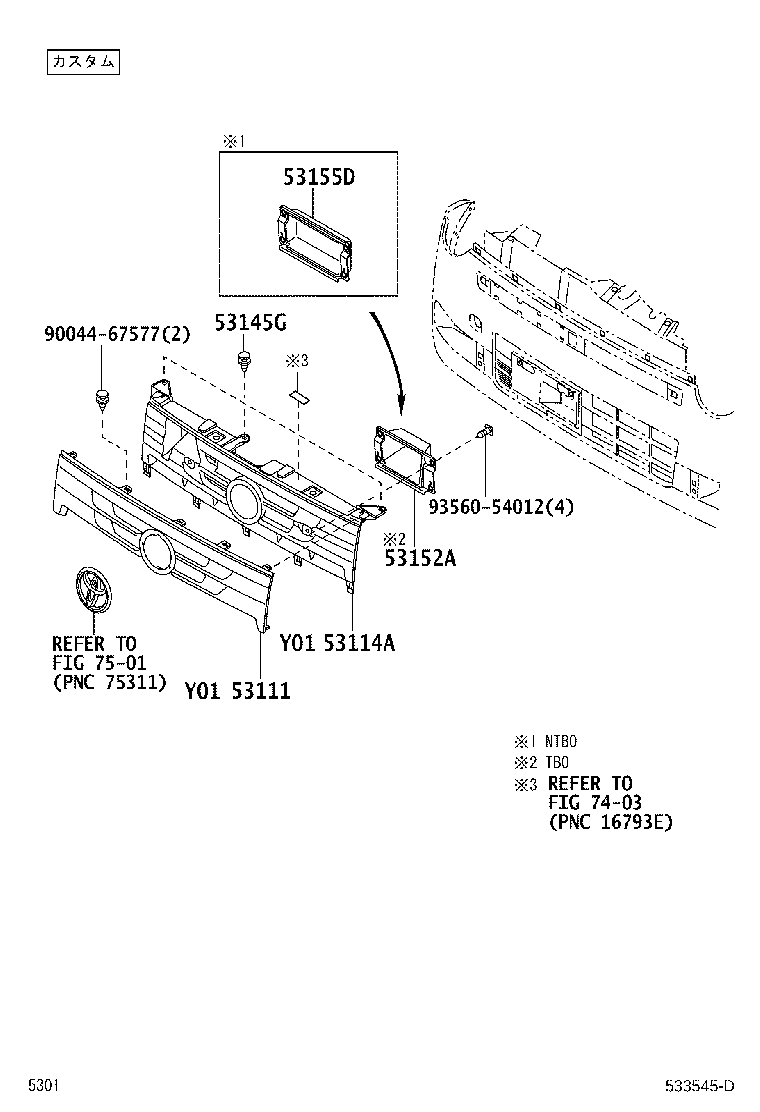

Figure 533545D

533545D 2011-09 → —

Figure 534597B

534597B 2015-04 → —

Part groups

PNC	Description
53111	Grille, Radiator
53114A	Grille, Radiator, Inner
53145G	Clip, Radiator Grille
53152A	Guide, Radiator Grille Air
53155D	Seal, Radiator Grille, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
